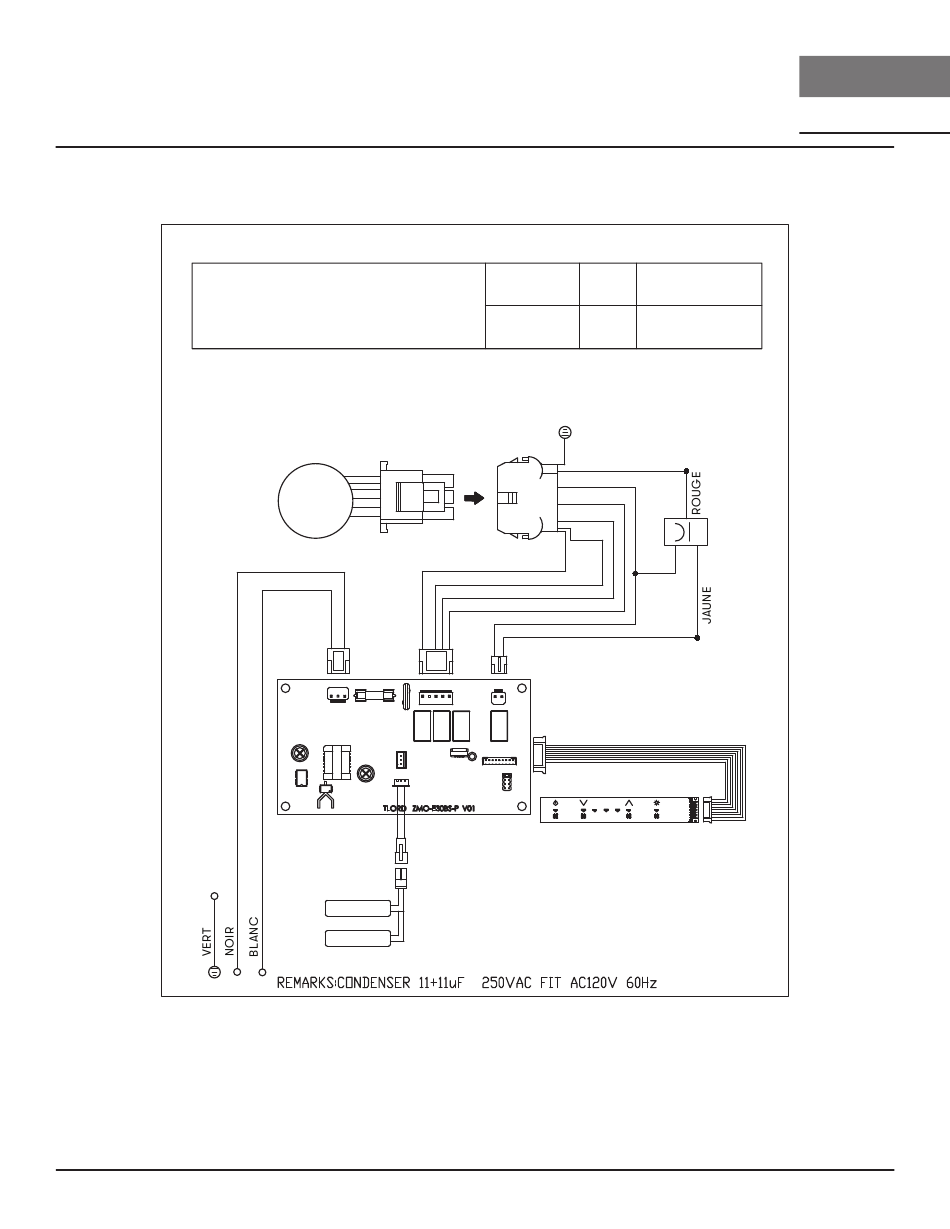

Schéma de câblage
CORPS
Consommation électrique indiquée pour la configuration par défaut du
ventilateur 600 CFM
ACT 390 CFM - Ventilateur Max. 393 W à 3,3 A
ACT 290 CFM - Ventilateur Max. 365 W à 3,0 A
28
ZMO-E30BS
SCHÉMA
MOTEUR
LED
LED
Modena Guide d'utilisation, d'entretien et d'installation
VOLTS
HZ
MAX. AMPS
120
60
CORPS
VERT
ROUGE
JAUNE
BLEU
MARRON
GRIS
BLANC
JAUNE
JAUNE
JAUNE
CONTRÔLE
C O R E
M O D E N A
M U R
5
