Installation Instructions

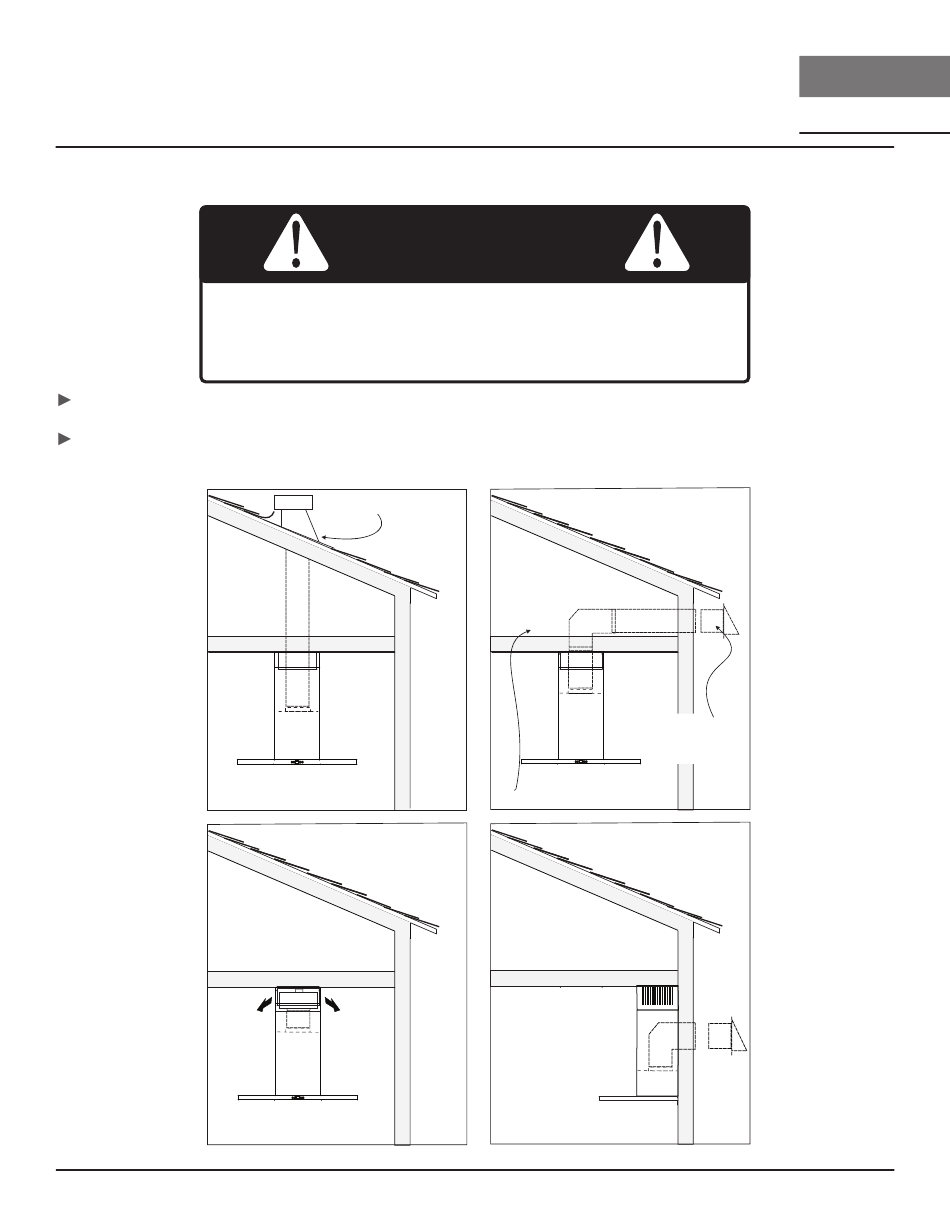

Ducting Options

spaces between walls, crawl spaces, ceilings, attics, or garages.
All exhaust must be ducted to the outside, unless using the
Use single wall rigid metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
14
WARNING
Fire Hazard: NEVER exhaust air or terminate ductwork into
recirculating option.
roof pitch w/
flashing & cap
(blower
housing)
ductless
recirculating
(blower
housing)
(blower
side wall cap
housing)
w/ gravity
damper
soffit or crawl space
side wall cap
w/ gravity damper
(blower
housing)
