Wiring Diagram - Zephyr ZMO-E30BS Use, Care And Installation Manual

Wiring Diagram

BODY
Power consumption shown for default 600 CFM blower configuration
ACT 390 CFM - Fan Max. 393W @ 3.3A
ACT 290 CFM - Fan Max. 365W @ 3.0A
28
ZMO-E30BS

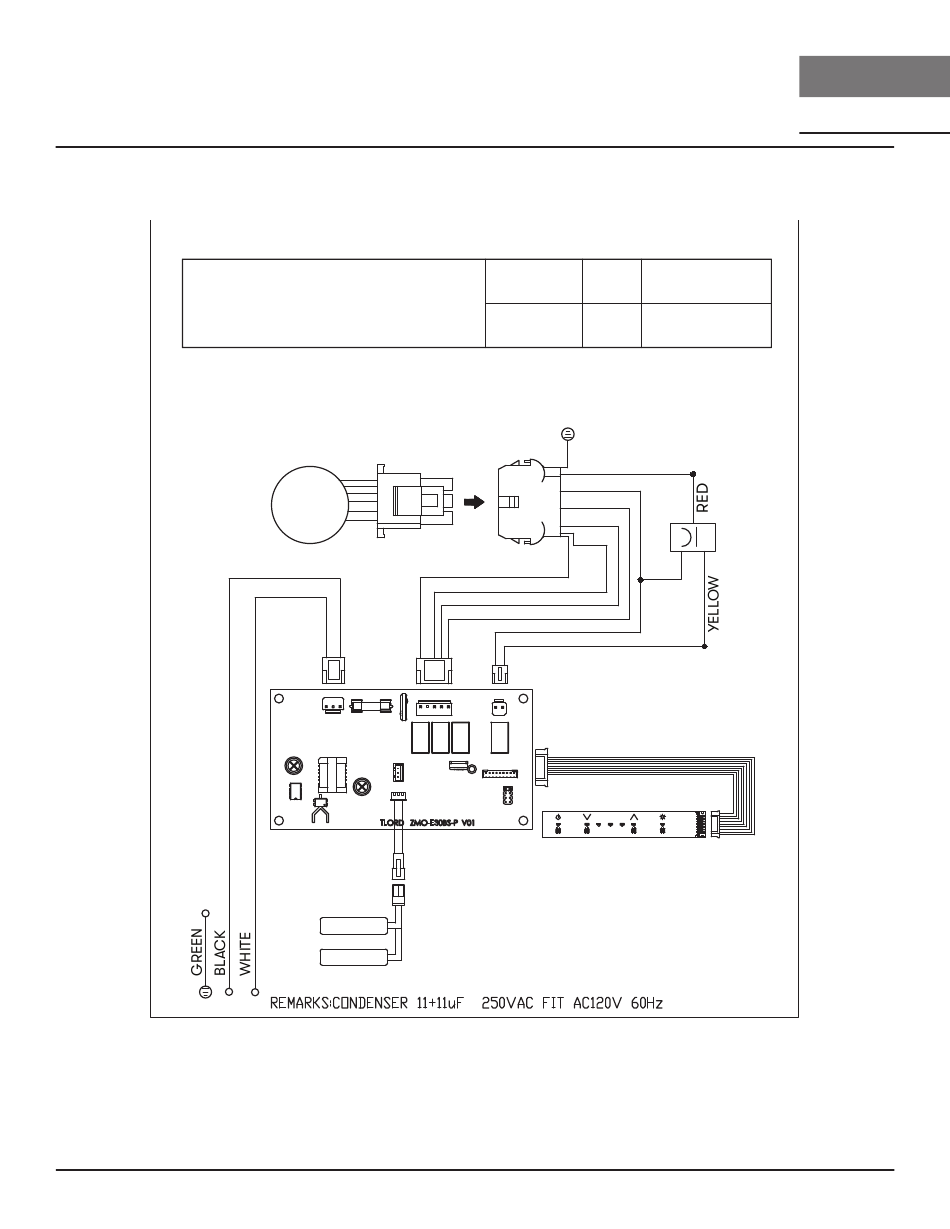

CIRCUIT DIAGRAM
MOTOR
LED
LED
VOLTS HZ MAX. AMPS
120 60
GREEN
BODY
RED
YELLOW
BLUE
BROWN
GREY
WHITE
YELLOW
YELLOW
YELLOW
CONTROL
