Adjustments

The adjustment of the "inside height E (Et)" is done by adjusting of screw (6).

All 4 adjusting screws (6) must have exactly the same adjustment dimension (E) on both adapters (4),
otherwise there is danger of slipping of the gripping goods (stone layers)!
5.2

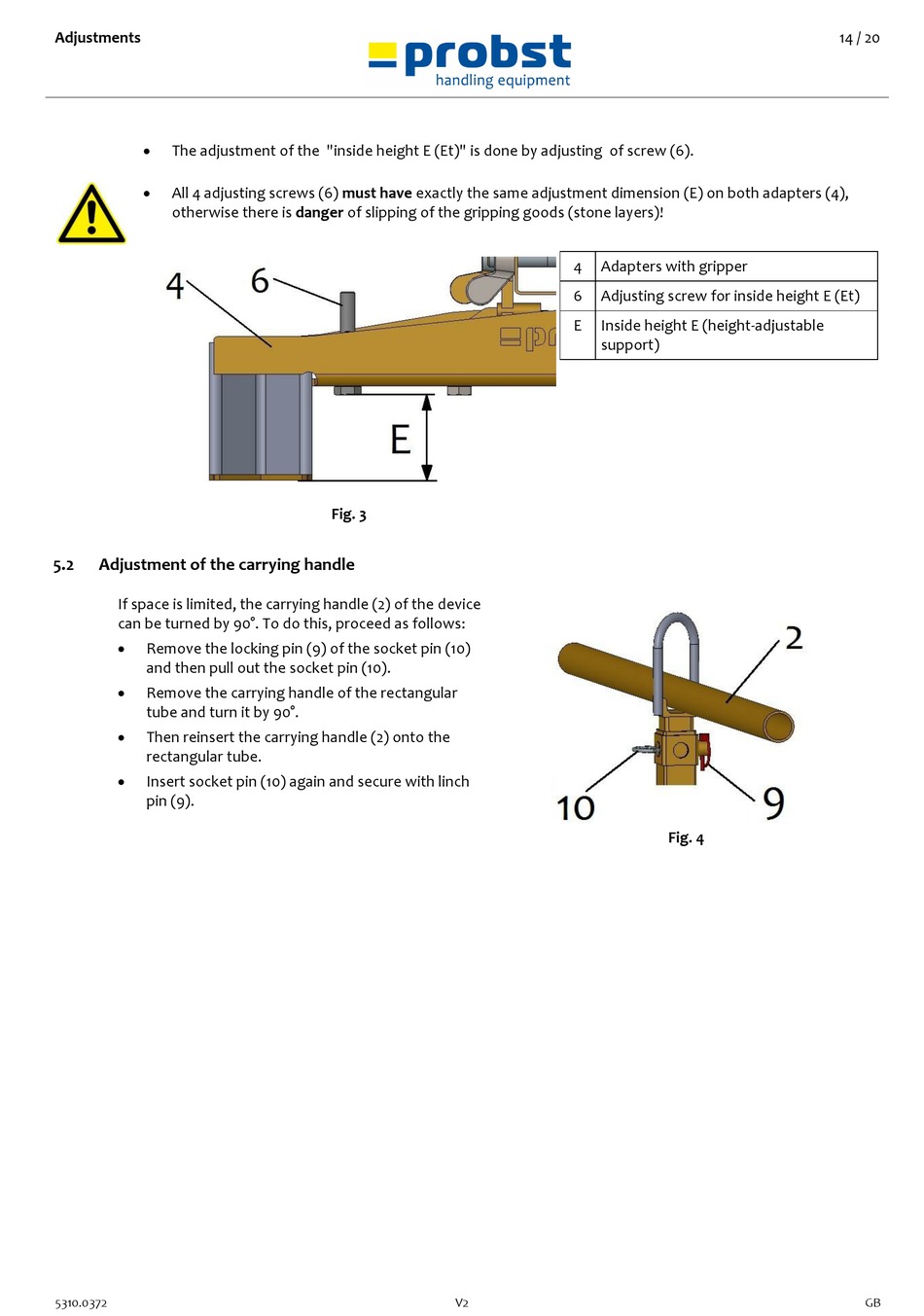

Adjustment of the carrying handle

If space is limited, the carrying handle (2) of the device
can be turned by 90°. To do this, proceed as follows:

Remove the locking pin (9) of the socket pin (10)
and then pull out the socket pin (10).

Remove the carrying handle of the rectangular
tube and turn it by 90°.

Then reinsert the carrying handle (2) onto the
rectangular tube.

Insert socket pin (10) again and secure with linch
pin (9).
5310.0372
Fig. 3
V2
4 Adapters with gripper
6 Adjusting screw for inside height E (Et)
E Inside height E (height-adjustable
support)
Fig. 4
