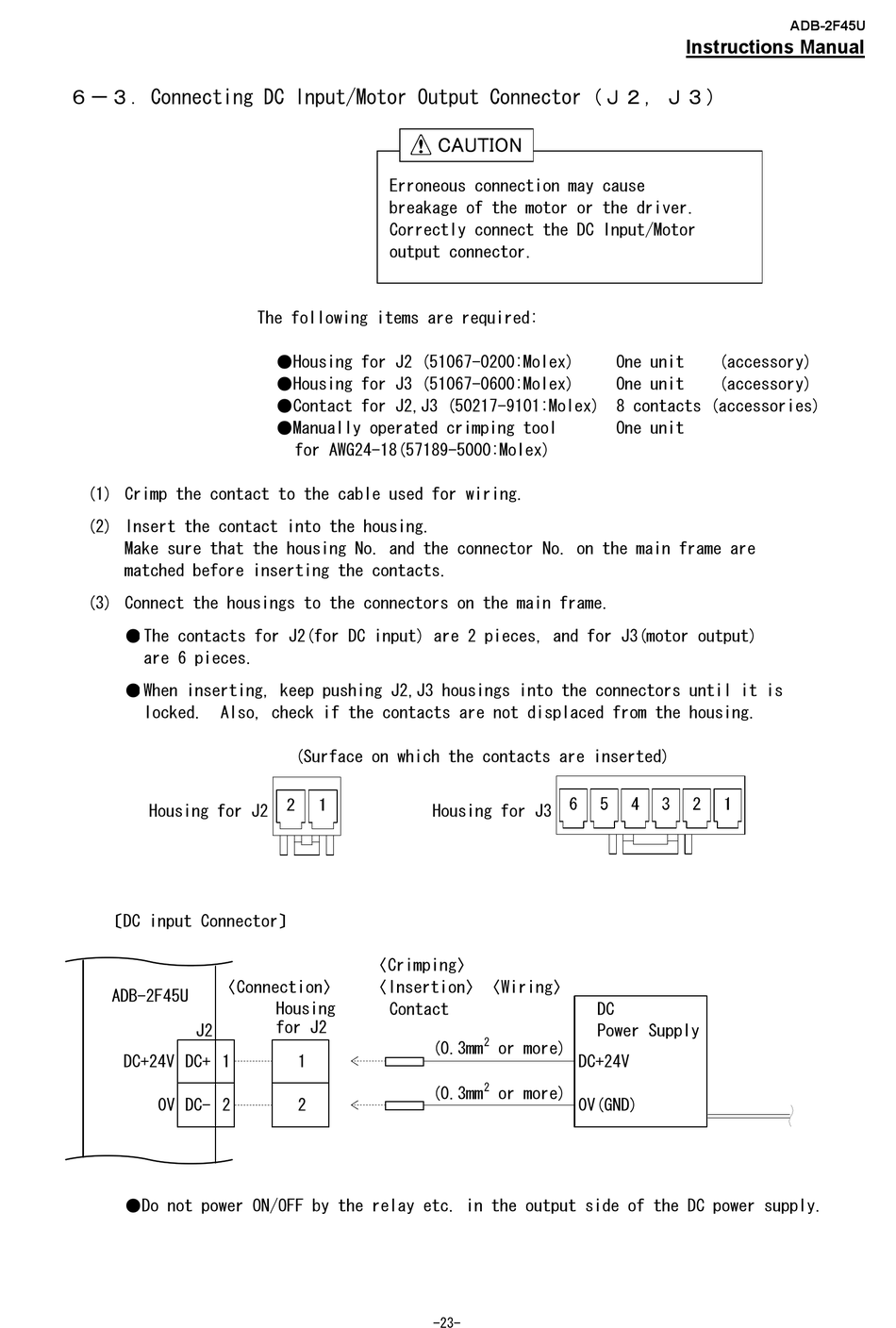

6-3.Connecting DC Input/Motor Output Connector(J2,J3)
(1) Crimp the contact to the cable used for wiring.
(2) Insert the contact into the housing.
Make sure that the housing No. and the connector No. on the main frame are
matched before inserting the contacts.
(3) Connect the housings to the connectors on the main frame.
● The contacts for J2(for DC input) are 2 pieces, and for J3(motor output)
are 6 pieces.
● When inserting, keep pushing J2,J3 housings into the connectors until it is
locked. Also, check if the contacts are not displaced from the housing.
Housing for J2
〔DC input Connector〕
〈Connection〉
ADB-2F45U
J2
DC+24V
DC+
1
0V
DC-
2
●Do not power ON/OFF by the relay etc. in the output side of the DC power supply.
Erroneous connection may cause
breakage of the motor or the driver.
Correctly connect the DC Input/Motor
output connector.
The following items are required:
●Housing for J2 (51067-0200:Molex)
●Housing for J3 (51067-0600:Molex)
●Contact for J2,J3 (50217-9101:Molex) 8 contacts (accessories)
●Manually operated crimping tool
for AWG24-18(57189-5000:Molex)
(Surface on which the contacts are inserted)
〈Crimping〉
〈Insertion〉〈Wiring〉
Housing
Contact
for J2
1
2
Housing for J3
DC
Power Supply
2
(0.3mm
or more)
DC+24V
2
(0.3mm
or more)
0V(GND)
-23-
Instructions Manual
One unit
(accessory)
One unit
(accessory)
One unit
ADB-2F45U
