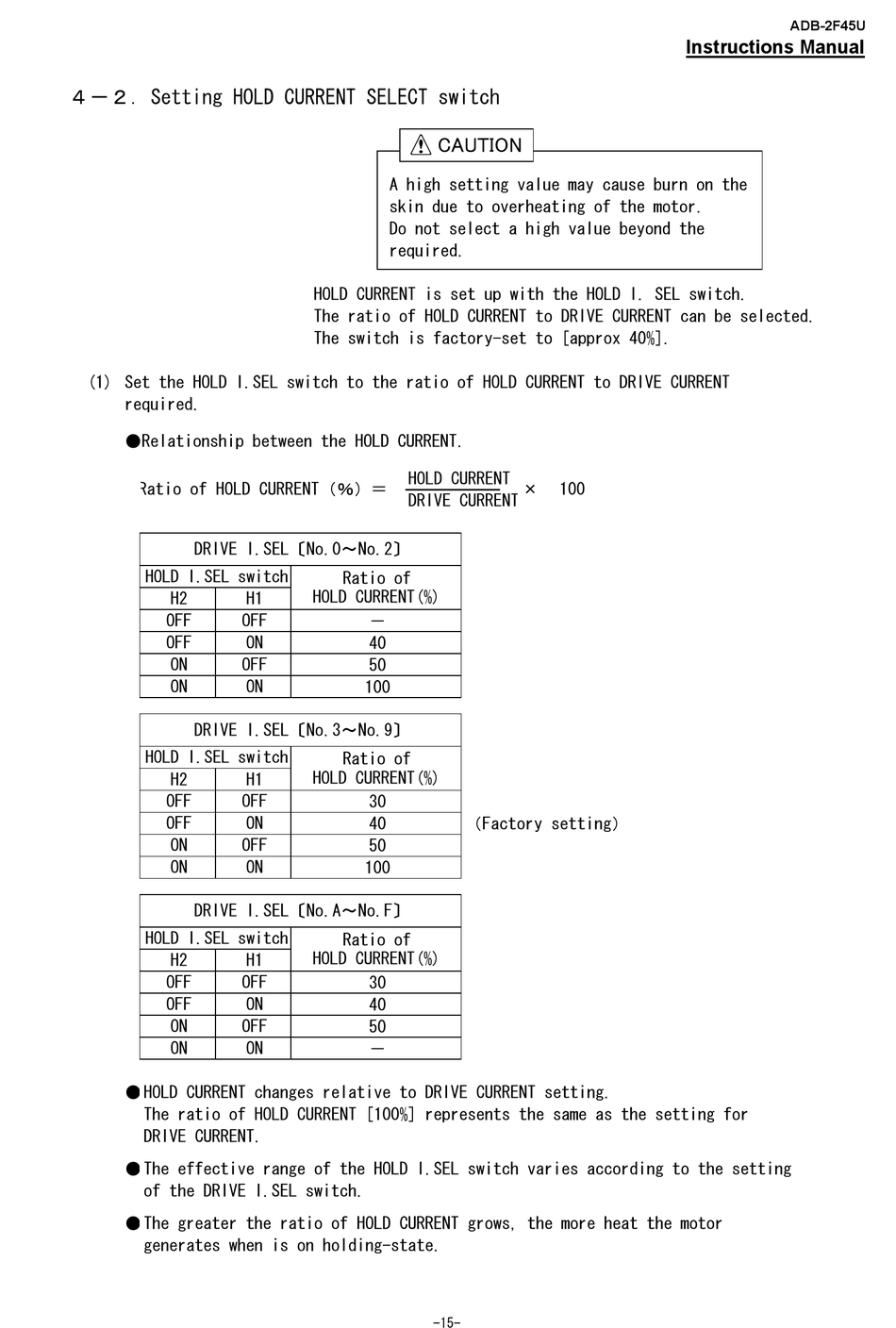

４－２．Setting HOLD CURRENT SELECT switch
(1) Set the HOLD I.SEL switch to the ratio of HOLD CURRENT to DRIVE CURRENT
required.
●Relationship between the HOLD CURRENT.
Ratio of HOLD CURRENT（％）
DRIVE I.SEL〔No.0～No.2〕
HOLD I.SEL switch
H2
OFF
OFF
ON
ON
DRIVE I.SEL〔No.3～No.9〕
HOLD I.SEL switch
H2
OFF
OFF
ON
ON
DRIVE I.SEL〔No.A～No.F〕
HOLD I.SEL switch
H2
OFF
OFF
ON
ON
● HOLD CURRENT changes relative to DRIVE CURRENT setting.
The ratio of HOLD CURRENT [100%] represents the same as the setting for
DRIVE CURRENT.
● The effective range of the HOLD I.SEL switch varies according to the setting
of the DRIVE I.SEL switch.
● The greater the ratio of HOLD CURRENT grows, the more heat the motor
generates when is on holding-state.

A high setting value may cause burn on the
skin due to overheating of the motor.
Do not select a high value beyond the
required.
HOLD CURRENT is set up with the HOLD I. SEL switch.
The ratio of HOLD CURRENT to DRIVE CURRENT can be selected.
The switch is factory-set to [approx 40%].
HOLD CURRENT
＝
DRIVE CURRENT
Ratio of
HOLD CURRENT(%)
H1
OFF －
ON
40
OFF 50
ON 100
Ratio of
HOLD CURRENT(%)
H1
OFF 30
ON 40
OFF
50
ON 100
Ratio of
HOLD CURRENT(%)
H1
OFF
30
ON 40
OFF 50
ON
－
× 100
（Factory setting）
