Ductless Recirculation Installation

NOTE: To use hood in air recirculating mode please purchase recirculating kit ZRC-0071.
front slot
Clip
18
metal air
diverter
back slot
plate
Clip
Clip
Clip

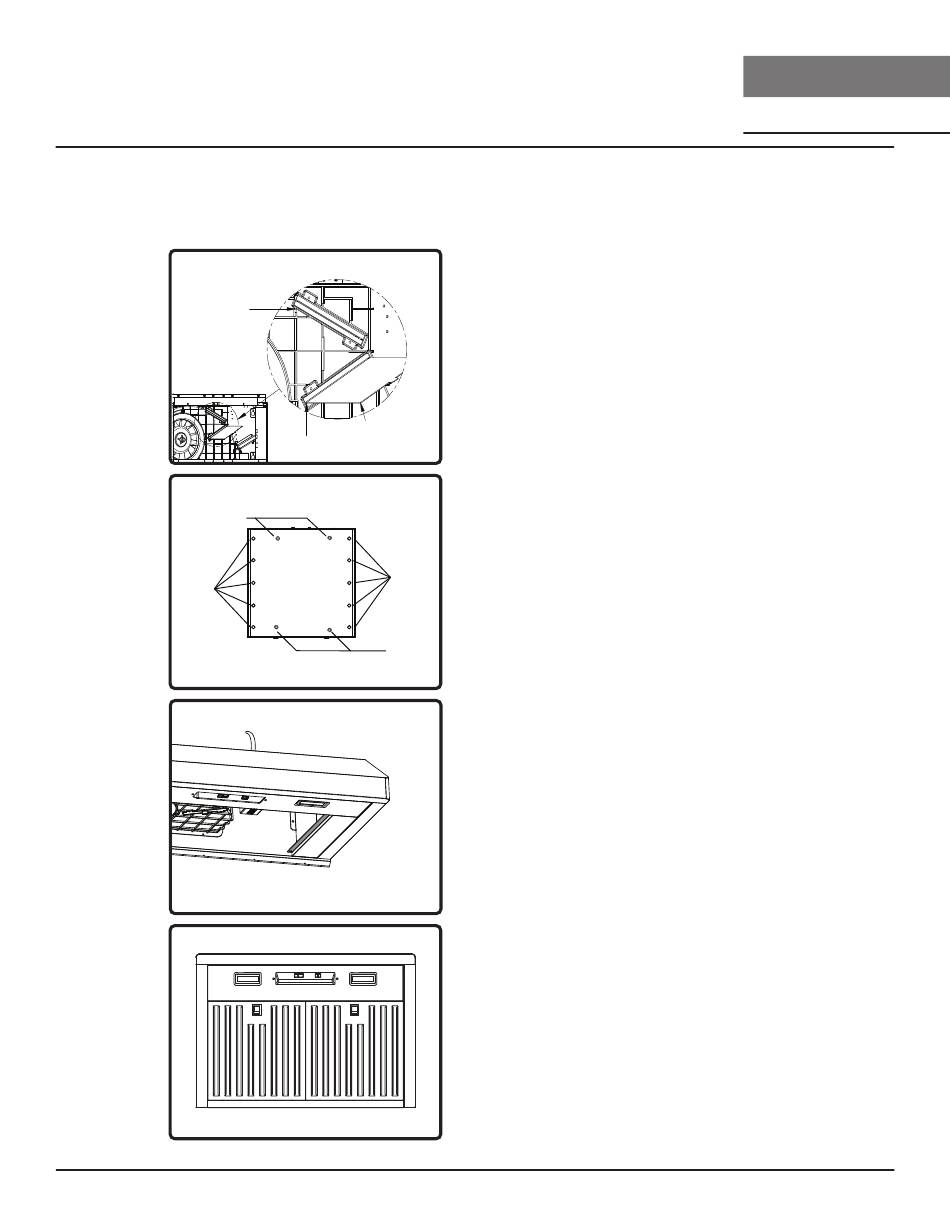

1. Remove the baffle filters. Remove
air diverter plate slot covers.
Remove metal air diverter plate
from front slot and re-position to
back slot. Re-install air diverter
plate covers.
2. Using components from ZRC-
0071, place (2) charcoal filter
on the back of the baffle filters.
Secure charcoal filters in place
with rubber clips.
3. Remove all black foam from the
filter opening before installing the
charcoal filter brackets.
4. Install the baffle filters.
