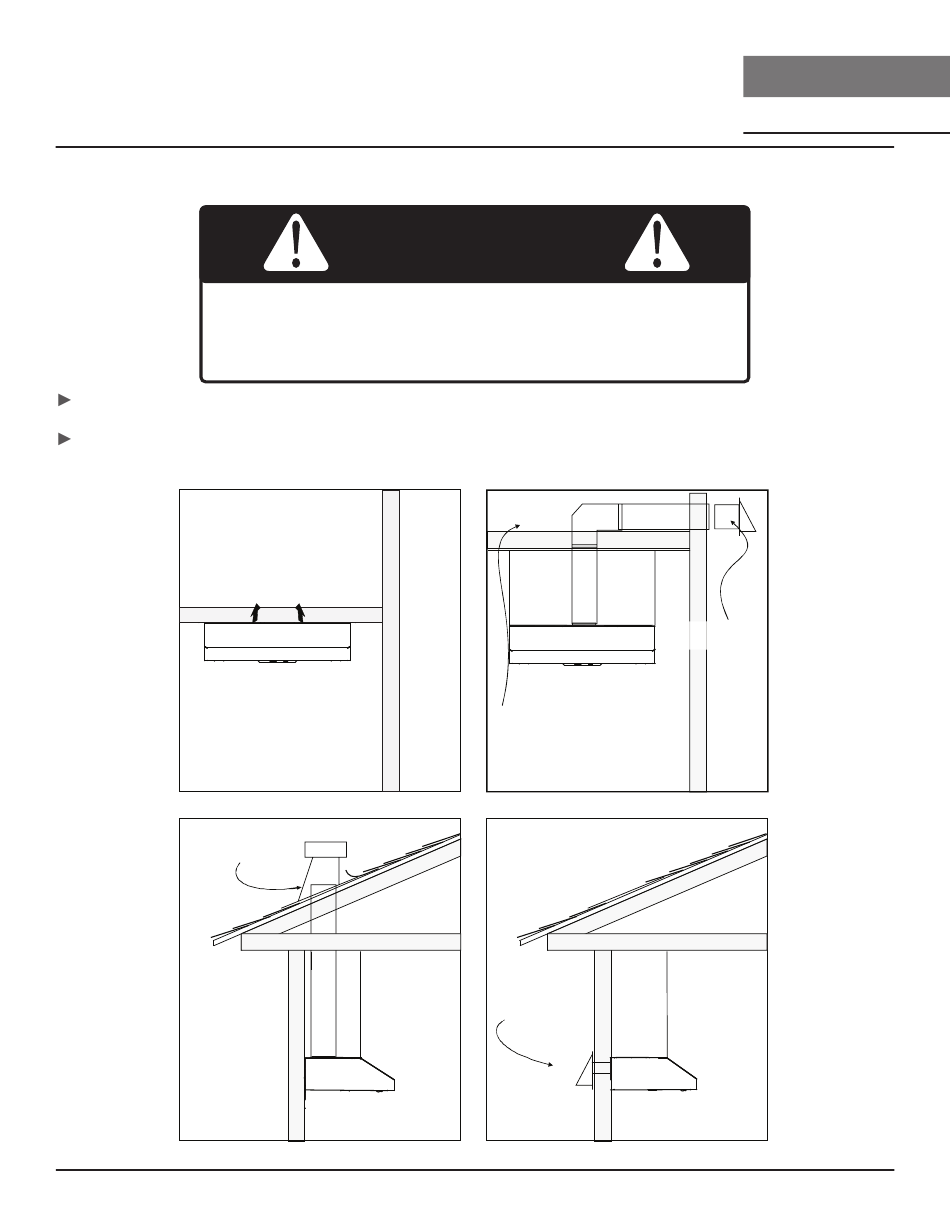

Installation Instructions

Ducting Options

spaces between walls, crawl spaces, ceilings, attics, or garages.
All exhaust must be ducted to the outside, unless using the
Use single wall rigid metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
Roof Pitch w/
Flashing & Cap
14
WARNING
Fire Hazard: NEVER exhaust air or terminate ductwork into
recirculating option.
ductless
recirculating
Side wall cap
w/ gravity damper
Soffit or crawl space
Rear Ducting
