Duct Location Preparation

NOTE: If using hood in recirculating mode, skip these skips and turn to page 18.

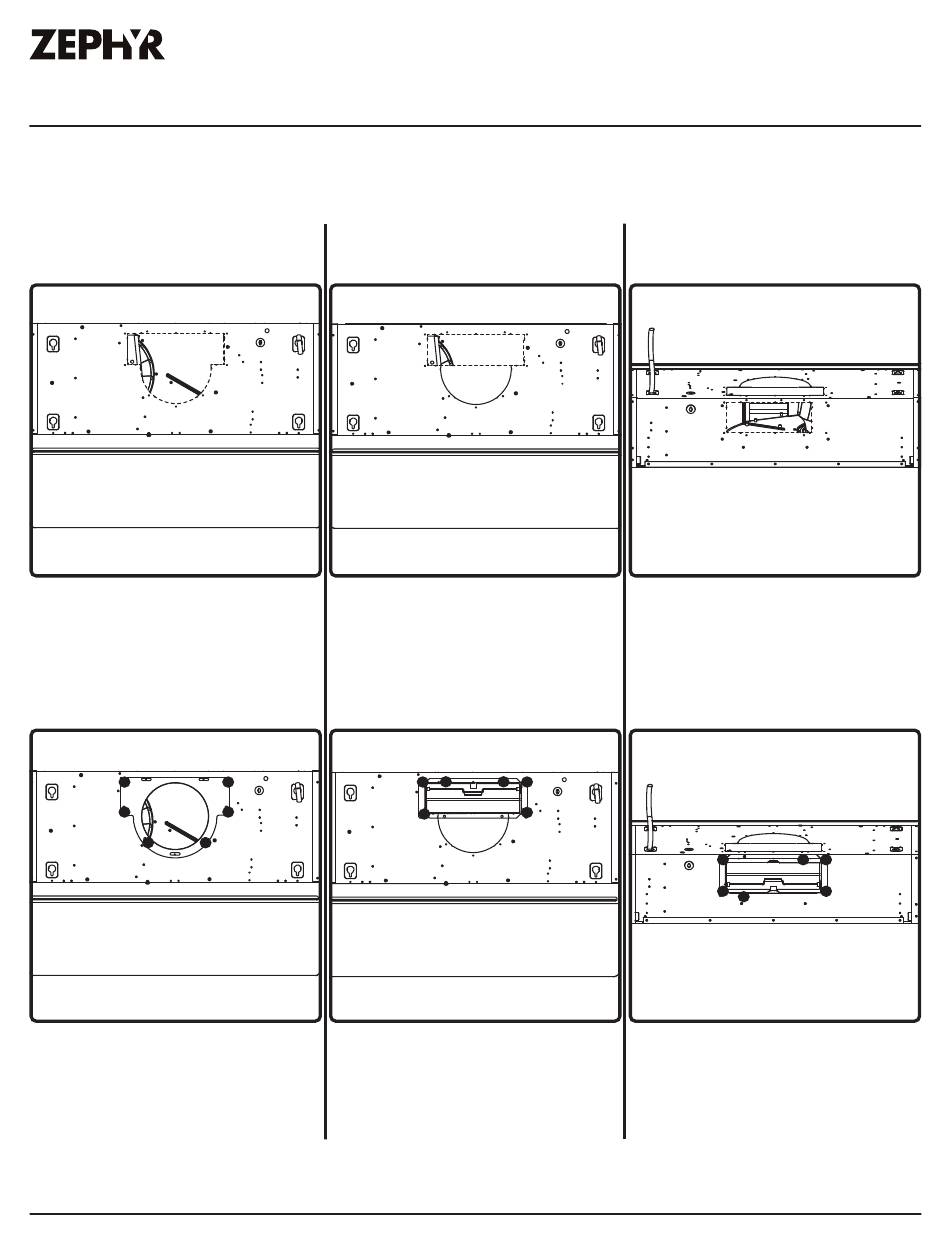

Vertical Ducting (7" Round)
1. Using a flat-head screwdriver,
remove both the rectangular
and round knock-out plates
located on top of hood.
1
2
3 4
2. Secure 7" round collar to
top of hood using (6) M4 x 6
screws.
Gust Use, Care, and Installation Guide
Vertical Ducting (3-1/4" x 10"
1. Using a flat-head screwdriver,
remove only the rectangular
section of the knock-out plate
located on top of hood.
6
5
2. Secure 3-1/4" x 10"
rectangular collar to top of
hood using (6) M4 x 6 screws.
Installation Instructions
Rectangular)
2 3 4 5
6
1
Horizontal Ducting (3-1/4" x 10"
Rectangular)
1. Using a flat-head screwdriver,
remove the rectangular
knock-out plate located on
back of hood.
1 4
2
3
2. Secure 3-1/4" x 10"
rectangular collar to back of
hood using (6) M4 x 6 screws.
5
6
