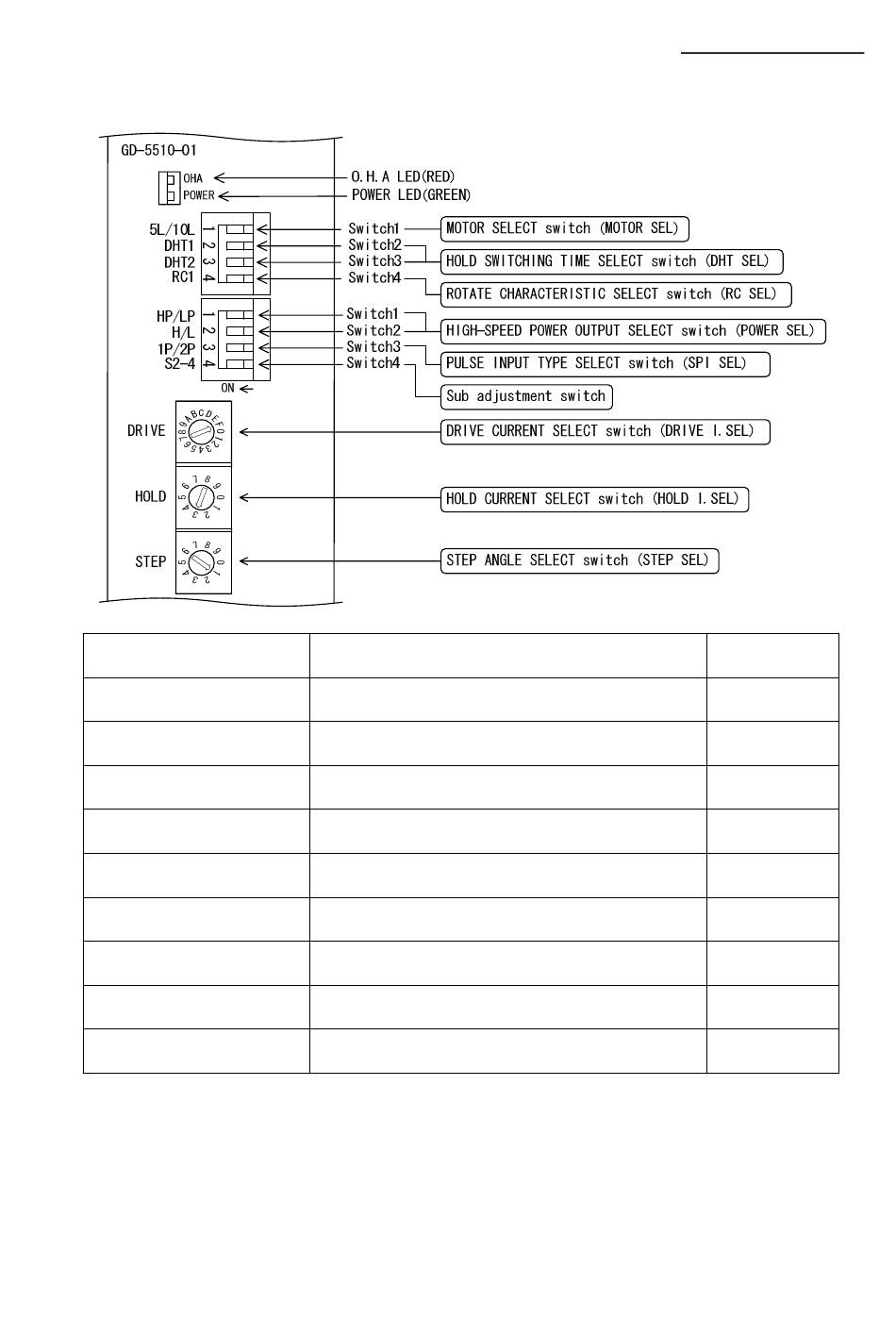

３－３．Operation Section
Name of Operation Section
MOTOR
SELECT switch
HOLD SWITCHING TIME
SELECT switch
ROTATE CHARACTERISTIC
SELECT switch
HIGH-SPEED POWER OUTPUT
SELECT switch
PULSE INPUT TYPE
SELECT switch
Sub adjustment
switch
DRIVE CURRENT
SELECT switch
HOLD CURRENT
SELECT switch
STEP ANGLE
SELECT switch
３－４．POWER LED
POWER LED (GREEN) comes on upon inputting power.
３－５．O.H.A LED
O.H.A LED（RED）comes on when internal temperature
of the driver has reached approx. 70℃ or more.
Function
Selects the applicable motor.
DRIVE/HOLD CURRENT automatic switching time
is selected.
Selects a characteristic of motor rotation.
Selects HIGH-SPEED TORQUE for the motor.
Selects a pulse input type.
Please use it with OFF.
Selects DRIVE CURRENT.
Selects HOLD CURRENT.
Selects a step angle.
-14-
GD-5510-01
Instructions Manual
Factory
Setting
〔10L〕
〔OFF,OFF〕
〔OFF〕
〔LP,L〕
〔2P〕
〔OFF〕
〔No.F〕
〔No.3〕
〔No.1〕
