５－２．Mounting Method
(1) Temporarily fix the product at the round hole.
(2) Fix the product at the three cutouts.
(3) Fasten the screw in the round hole.

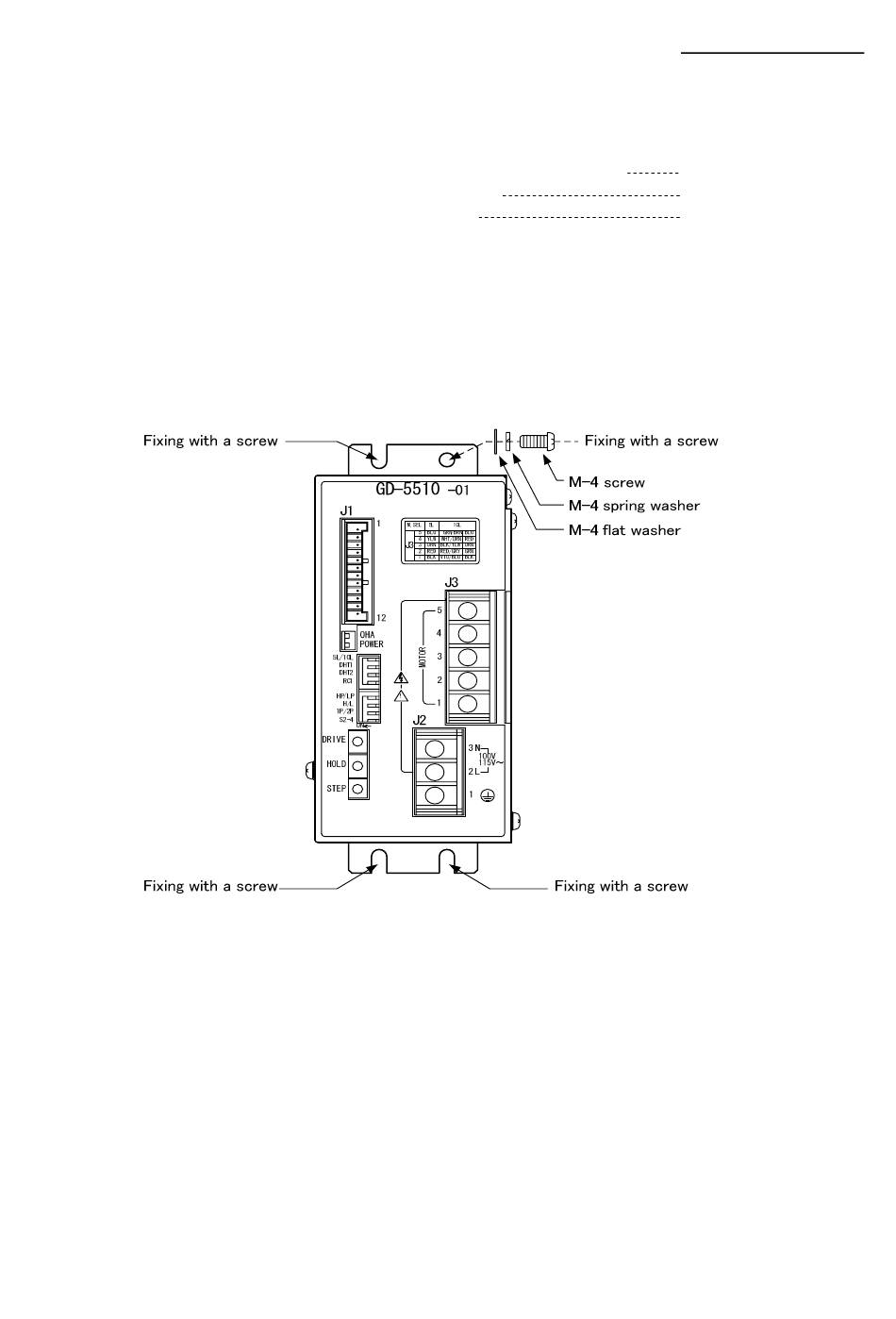

● Mounting example
The following items are required:
● M-4 screw (8mm or more in length):
● M-4 spring washer:
● M-4 flat washer:
-22-
GD-5510-01
Instructions Manual
4
4
4
