(MODEL NUMBER:AC-22656)

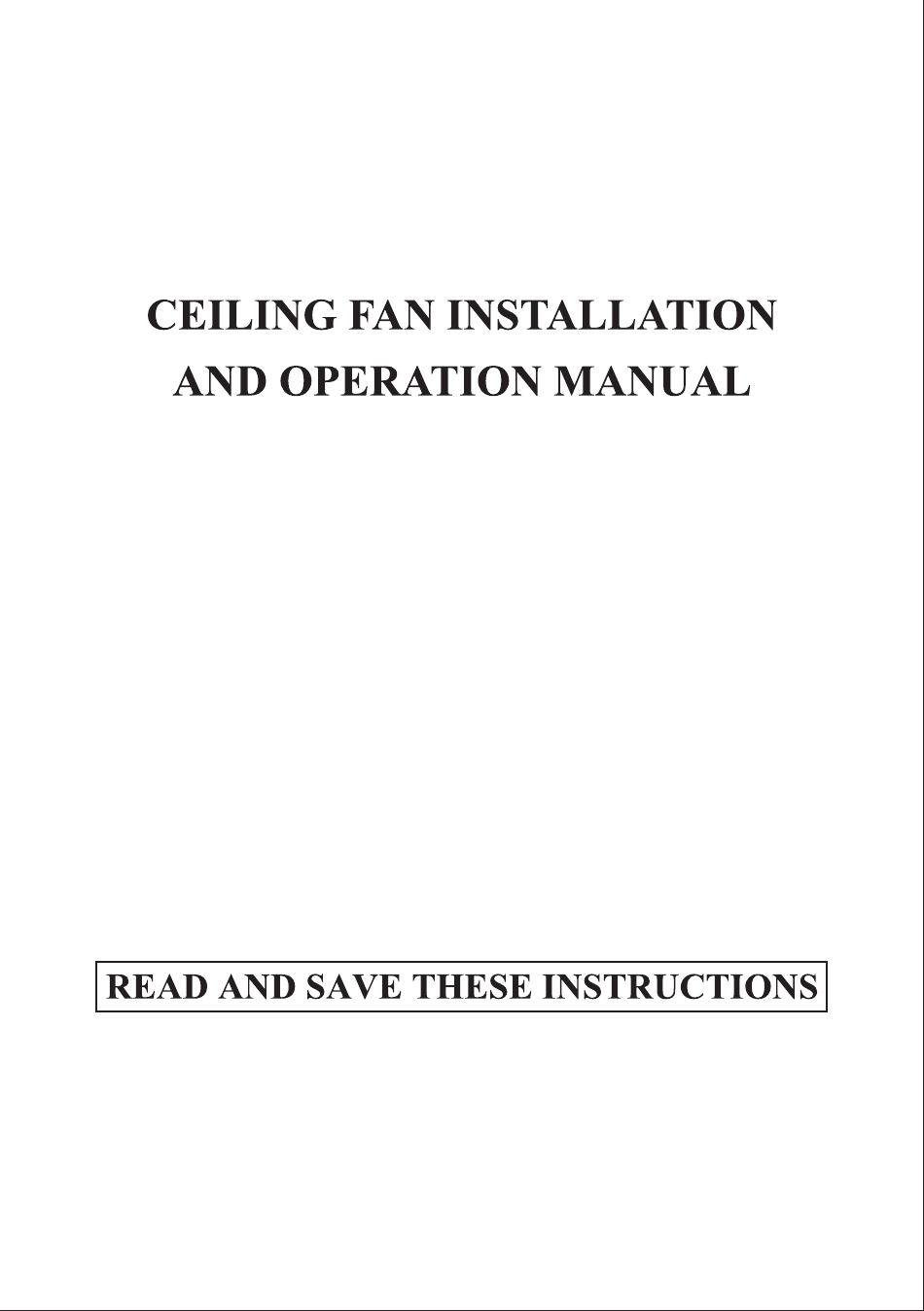

Page 1 (MODEL NUMBER:AC-22656)
Page 3 Putting Your Fan Together DOWNROD ASSEMBLY 1. Remove the hairpin clip & washer from the clevis pin and remove clevis pin from down rod. (see HAIR PIN CLIP Fig.1) WASHER 2. Insert the down rod through the center opening in CLEVIS PIN the canopy,coupling cover and route the motor leads through the hanger ball/downrod assembly.
Page 4: Wiring Your Ceiling Fan
Wiring Your Ceiling Fan CEILING Caution: To avoid possible electrical shock, SATETY CABLE be sure electricity is turned off at the main fuse box before wiring. HANGER BRACKET DOWNROD WASHER 1. If you are not sure that the electrical box is WASHER grounded,contact a licensed electrician for SCREW...
Page 5: Installing The Light Kit
Installing The Light Kit 1. Remove 3 screws on light kit adapter, (See LIGHT KIT ADAPTER Fig.12) MOTOR SCREW 2.Lift the light kit plate onto the light kit adapter and align the three holes on light kit plate with the light kit adapter.Tighten back the 3 removed FAN BODY screws.( See Fig 13...
Page 8 TNA18010301...
Page 9 CEILING FAN WALL TRANSMITTER CONTROLLER WARNING! SHUT OFF THE POWER WITH FUSE OR CIRCUIT BREAKER. 1. SAFETY PRECAUTIONS: WARNING: HIGH VOLTAGE: Disconnect the electric power source by removing fuse or switching off circuit breakers. Do not use with solid state fans. Electrical wiring must meet all local and national electrical code requirements.
