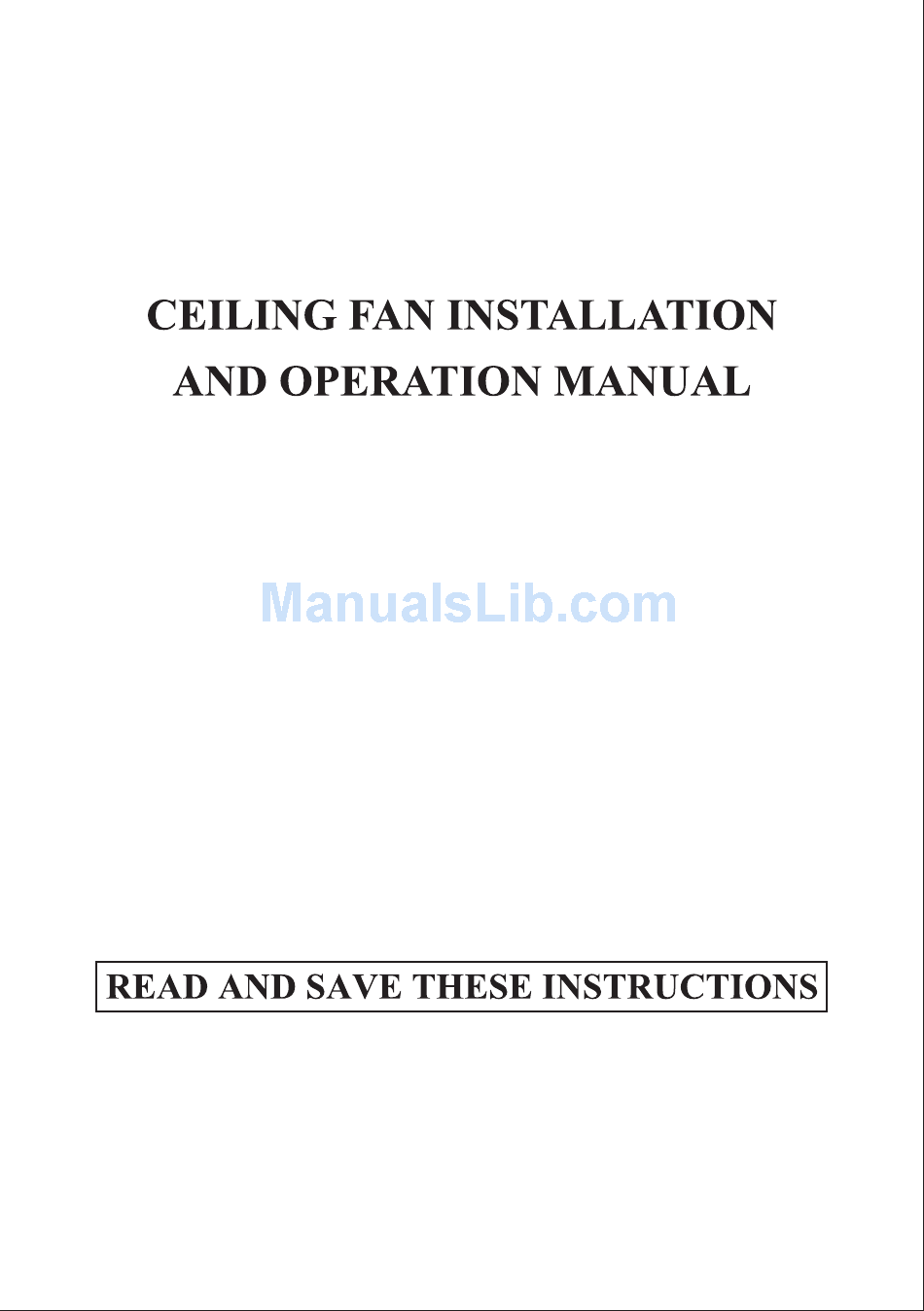

Kendal Lighting AC-21560 Installation And Operation Manual

Download this manual

(MODEL NUMBER:AC-21560)

Page 1 (MODEL NUMBER:AC-21560)
Page 3: Coupling Cover
Putting Your Fan Together 1. Remove the hairpin clip & washer from the clevis pin and remove clevis pin from down rod. (see Fig.1) 2. Insert the down rod through the center opening in the canopy,coupling cover and route the motor leads through the hanger ball/downrod assembly.
Page 4 Wiring Your Ceiling Fan Caution: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. HANGER BRACKET 1. If you are not sure that the electrical box is grounded,contact a licensed electrician for SCREW advice.It must be grounded for safe operation.
Page 5: Installing The Light Kit
Installing The Light Kit 1.Remove 1 of 3 screws on light kit adapter, and FLYWHEEL BLADE loosen the other 2 screws.(see Fig.12) SCREW LIGHT KIT ADAPTER 2.Gently pull the wire through light kit plate. Have the key hole over the loosened the screws. Turn the light kit plate until it get the end of LIGHT KIT ADAPTER...
Page 8 TNA15111005...
Page 9 BLDC CEILING FAN REMOTE CONTROLLER WARNING! SHUT OFF THE POWER WITH FUSE OR CIRCUIT BREAKER. 1. SAFETY PRECAUTIONS: WARNING: HIGH VOLTAGE: Disconnect the electric power source by removing fuse or switching off circuit breakers. Only used for BLDC ceiling fans. Electrical wiring must meet all local and national electrical code requirements.
