Summary of Contents for Kendal Lighting AC-22054

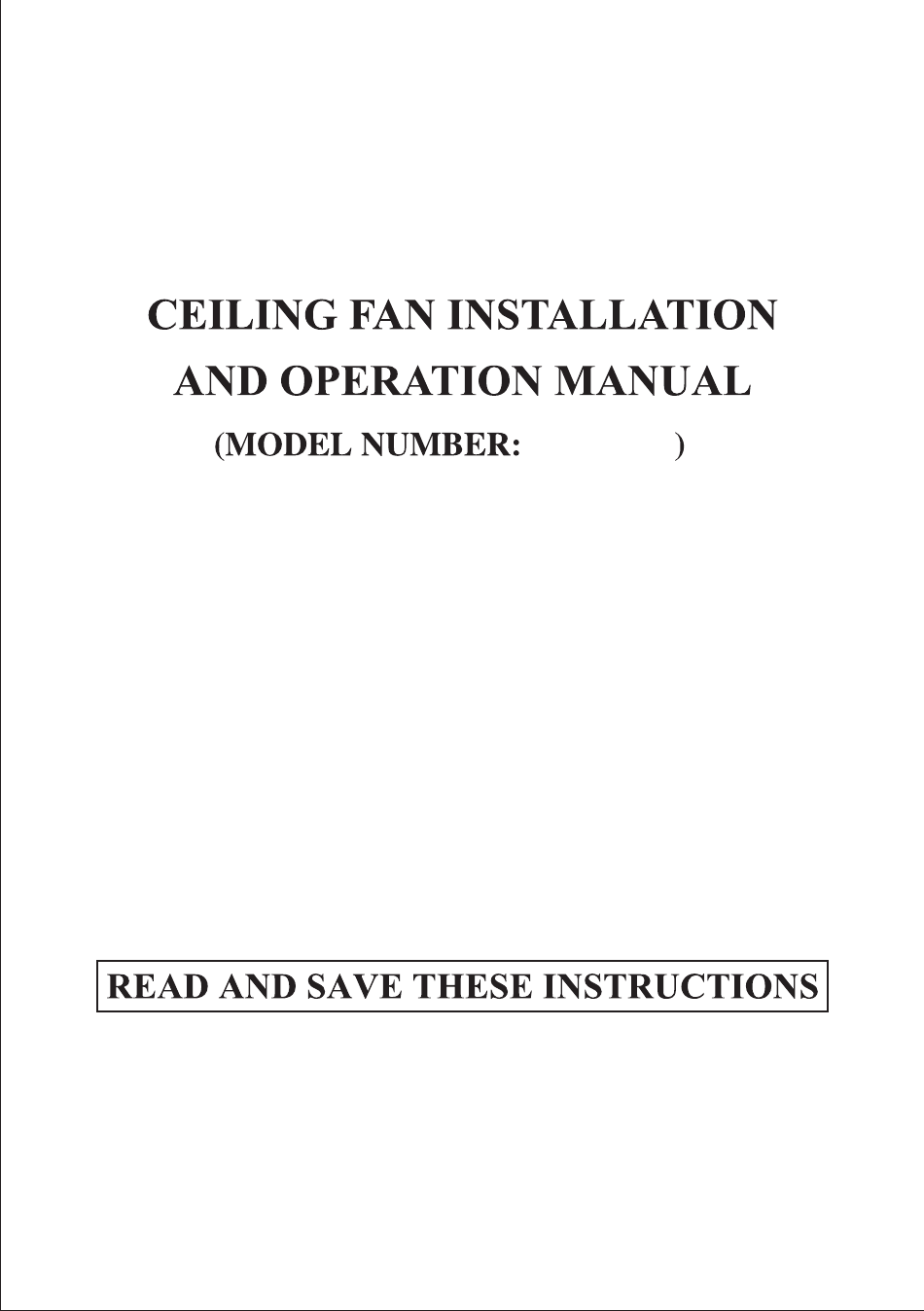

- Page 1 AC-22054...
- Page 2 13m (7ft.) The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and careful attention to detail are factors which cannot be built into this product.
- Page 3 FAN BODY SCREW WASHER BLADE FAN BODY Caution : Partially attach all 5 blades , OUTLET BOX then tighten once all 5 are in place. HANGER BRACKET fan body FLAT WASHER RECEIVER STAR WASHER SPRING WASHER SCREW RECEIVER HANGER BRACKET DOWNROD CEILING CABLE...
- Page 4 OUTLET BOX GREEN WIRE RECEIVER RED WIRE PURPLE WIRE WHITE WIRE GREY WIRE BLUE WIRE HANGER BRACKET wire SCREW HANGER BRACKET CANOPY SCREW CANOPY SCREW CANOPY HOLE COVER...
- Page 5 LIGHT KIT 1.Remove lens from LED light. (see Fig.11) LENS SCREW 2.Remove 3 screws on light kit adapter.(see Fig.12) 3.Gently pull the wires through light kit.Align the 3 round holes on light kit with 3 holes on LIGHT KIT SCREW ADAPTER light kit adapter.(see Fig.13) 4.Plug together light kit wires from fan to LED light...
- Page 6 COUNTER CLOCKWISE CLOCKWISE...
- Page 8 TNA17051101...
- Page 9 BLDC CEILING FAN REMOTE CONTROLLER WARNING! SHUT OFF THE POWER WITH FUSE OR CIRCUIT BREAKER. 1. SAFETY PRECAUTIONS: WARNING: HIGH VOLTAGE: Disconnect the electric power source by removing fuse or switching off circuit breakers. Only used for BLDC ceiling fans. Electrical wiring must meet all local and national electrical code requirements.
