Summary of Contents for Kendal Lighting Triax AC-22352

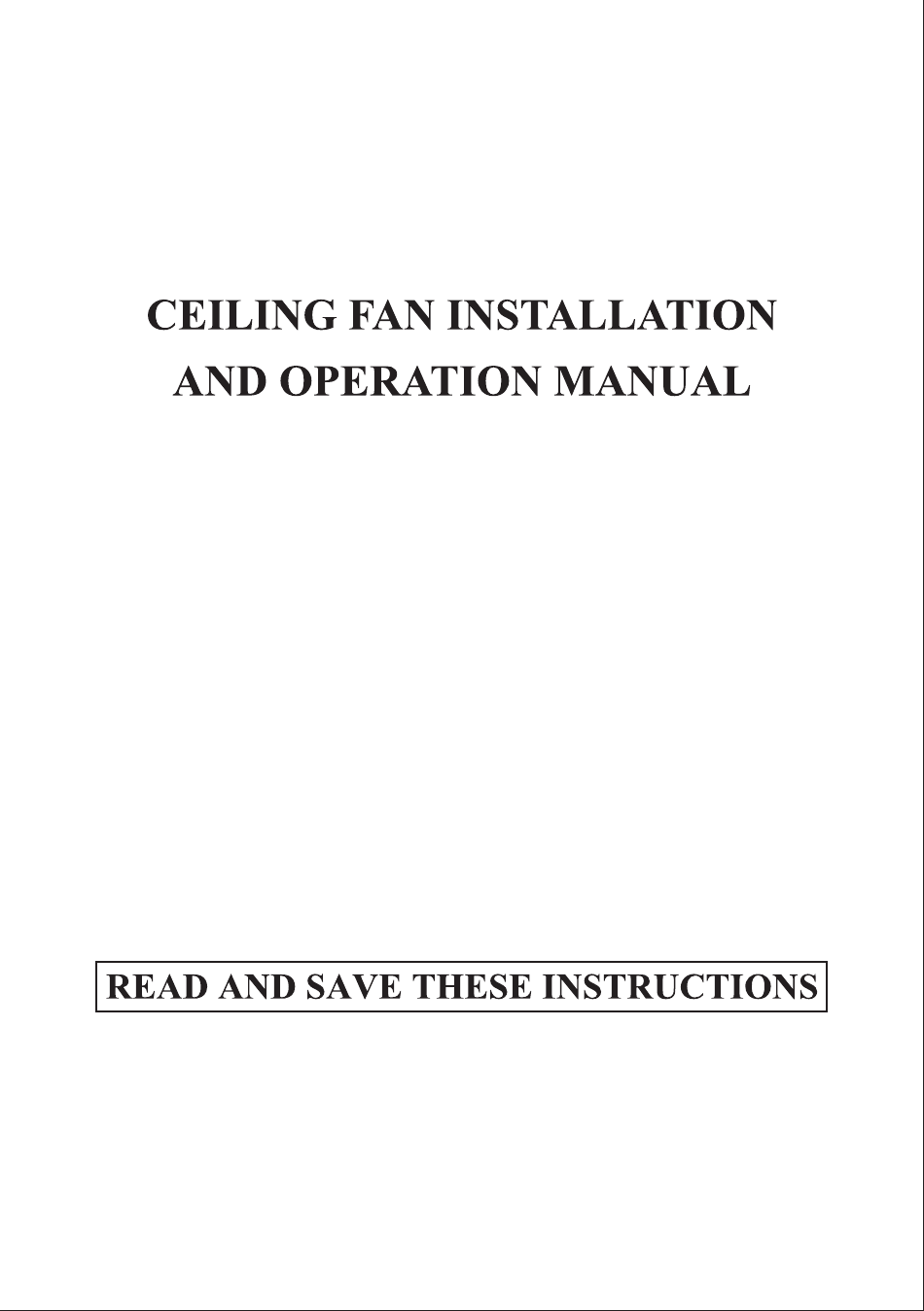

- Page 1 (MODEL NUMBER:AC-22352)
- Page 3 Putting Your Fan Together 1. Remove the hairpin clip & washer from the clevis pin and remove clevis pin from down rod. (see Fig.1) 2. Insert the down rod through the center opening in DOWNROD ASSEMBLY the canopy,coupling cover and route the motor leads through the hanger ball/downrod assembly.
- Page 4 Wiring Your Ceiling Fan Caution: To avoid possible electrical shock, be sure electricity is turned off at the main HANGER BRACKET fuse box before wiring. 1. If you are not sure that the electrical box is SCREW grounded,contact a licensed electrician for advice.It must be grounded for safe operation.
-
Page 5: Installing The Light Kit
Installing The Light Kit LIGHT KIT 1. Remove 1 of 3 screws on light kit adapter,and ADAPTER BLADE loosen the other 2 screws. (See Fig.11) 2.Gently pull the wire through light kit plate. Have the key hole over the loosened the screws. LIGHT KIT Turn the light kit plate until it get the end of ADAPTER... - Page 8 TNA17071703...
- Page 9 BLDC CEILING FAN REMOTE CONTROLLER WARNING! SHUT OFF THE POWER WITH FUSE OR CIRCUIT BREAKER. 1. SAFETY PRECAUTIONS: WARNING: HIGH VOLTAGE: Disconnect the electric power source by removing fuse or switching off circuit breakers. Only used for BLDC ceiling fans. Electrical wiring must meet all local and national electrical code requirements.
