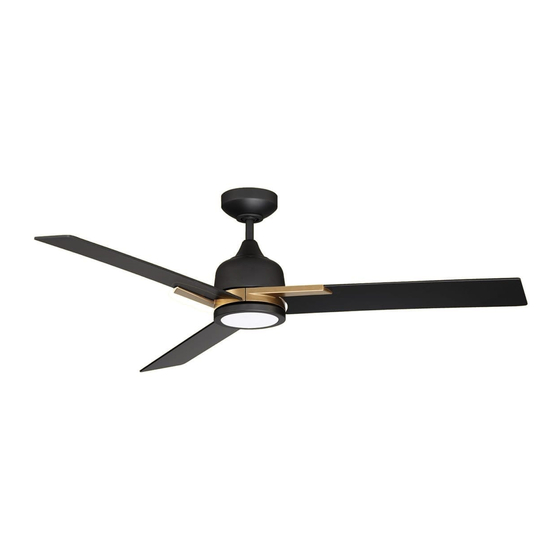

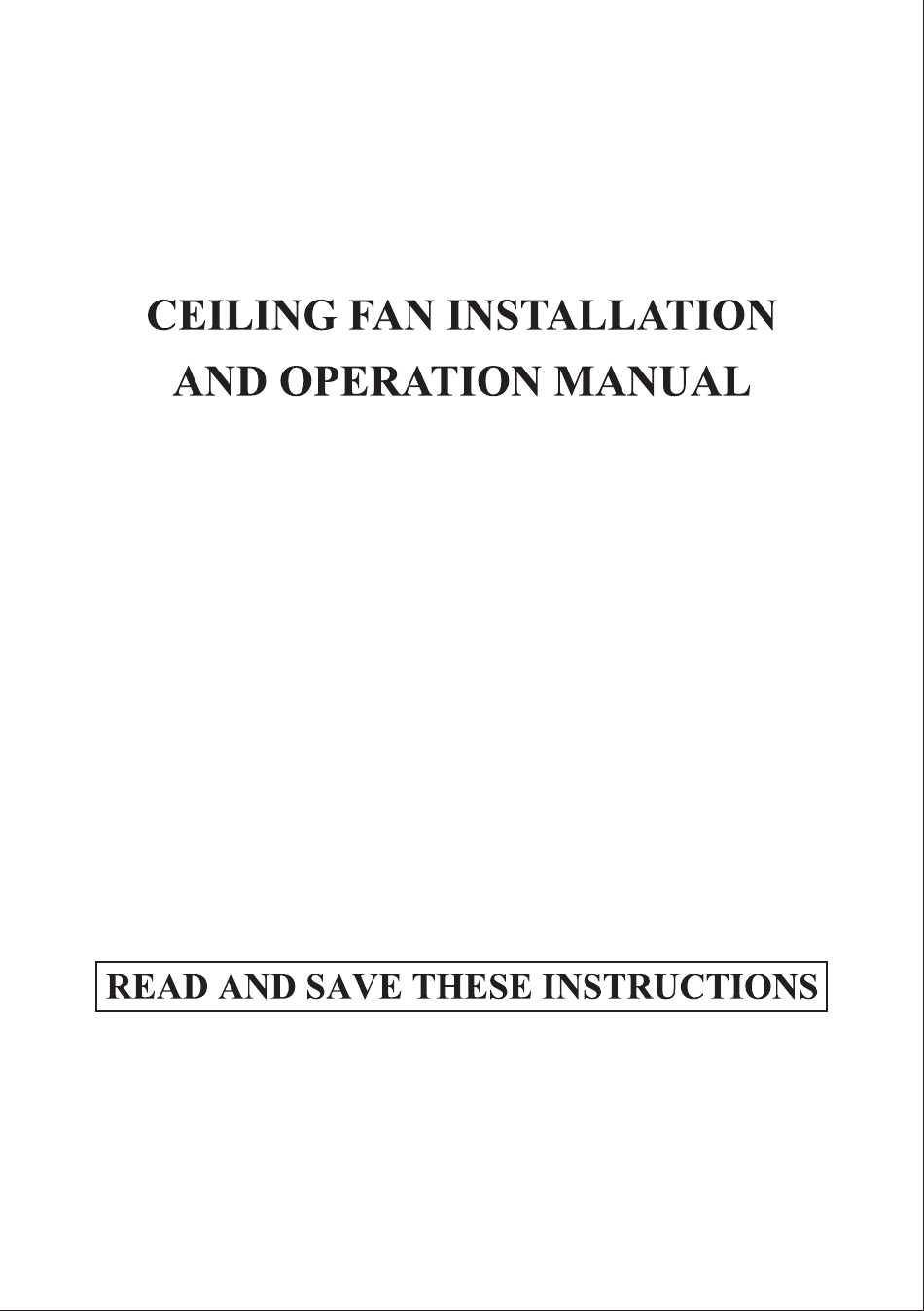

- Page 1 (MODEL NUMBER:AC-22452)
- Page 3 Putting Your Fan Together 1. Remove the hairpin clip & washer from the clevis pin and remove clevis pin from down rod. (see Fig.1) DOWNROD ASSEMBLY 2. Insert the down rod through the center opening in the canopy,coupling cover and route the motor COUPLING COVER leads through the hanger ball/downrod assembly.
- Page 4 Wiring Your Ceiling Fan Caution: To avoid possible electrical shock, be sure electricity is turned off at the main HANGER BRACKET fuse box before wiring. 1. If you are not sure that the electrical box is SCREW grounded,contact a licensed electrician for advice.It must be grounded for safe operation.
-
Page 5: Installing The Light Kit
Installing The Light Kit LIGHT KIT ADAPTER 1. Remove 1 of 3 screws on light kit adapter,and SCREW loosen the other 2 screws. (See Fig.12) 2.Gently pull the wire through light kit plate. LIGHT KIT ADAPTER Have the key hole over the loosened the screws. Turn the light kit plate until it get the end of narrow end. - Page 8 TNA17071705...
- Page 9 CEILING FAN WALL TRANSMITTER CONTROLLER WARNING! SHUT OFF THE POWER WITH FUSE OR CIRCUIT BREAKER. 1. SAFETY PRECAUTIONS: WARNING: HIGH VOLTAGE: Disconnect the electric power source by removing fuse or switching off circuit breakers. Do not use with solid state fans. Electrical wiring must meet all local and national electrical code requirements.
Need help?
Do you have a question about the AC-22452 and is the answer not in the manual?
Questions and answers
looking for troubleshooting guide for ceiling fan. switch stopped working. there is power to it, has a good battery
The manual does not provide a specific troubleshooting guide for when the switch stops working despite having power and a good battery. However, based on the provided information, try the following steps:
1. Check frequency interference setup:
- Turn off power to the ceiling fan.
- Turn power back on to the receiver.
- Within 60 seconds, press and hold the “SET” button on the wall transmitter. Do not press any other button before this.
2. Check the light mode DIP switch:
- Ensure the DIP switch inside the plate is set correctly:
- Set to “D” for dimming mode.
- Set to “ON” for ON/OFF mode.
3. Check receiver protective function:
- If the fan or light load is too high, the receiver may shut off due to overload protection. Reduce the load and reset power.
If the issue continues after these steps, further diagnosis may be needed.
