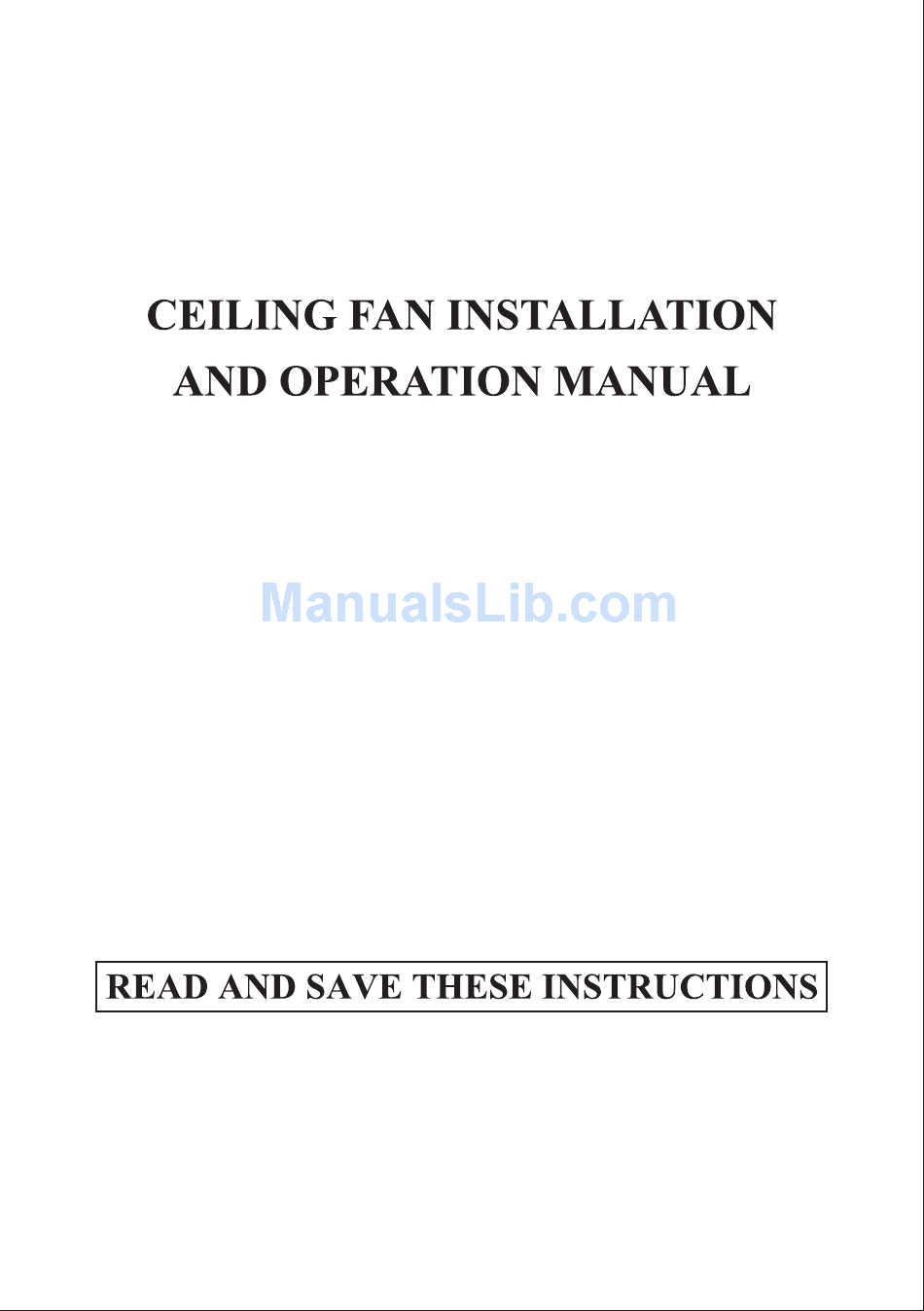

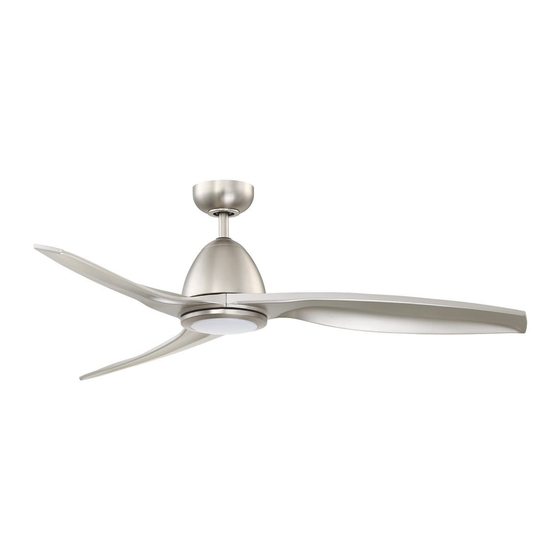

- Page 1 (MODEL NUMBER:AC-21750)
- Page 3 COUPLING COVER FLAT WASHER (see Fig 3) (see Fig 4) OUTLET BOX (see Fig 5) RECEIVER GREEN WIRE RED WIRE PURPLE WIRE GREY WIRE BLUE WIRE WHITE WIRE...
- Page 4 HANGER BRACKET SCREW SCREW 2. Connect the red wire from receiver to the red wire from fan with wire nut .Connect the purple wire from receiver to the purple HANGER wire from fan with wire nut.Connect the BRACKET blue wire from receiver to the blue wire CANOPY from fan with wire nut.Connect the grey wire from receiver to the grey wire from...
- Page 5 LIGHT KIT ADAPTER SCREW 1. Remove three screws from the light kit adapter. LIGHT KIT ADAPTER (see Fig.11) LIGHT KIT PLATE 2. Lift the light kit plate up to light kit adapter PLUG&PIN and pull the light wire through the hole of light kit adapter.
- Page 8 TNA15111007...
-
Page 9: Remote Control Setting And Operation
REMOTE CONTROL SETTING AND OPERATION TRANSMITTER OPERATION Remove the battery cover from the remote control transmitter and install batteries, Replace the cover. Note : Use 2 1.5V/AAA batteries (included). Note : If not using for long period of time, remove battery to prevent damage to remote transmitter, and store the remote transmitter away from excess heat or humidity. - Page 10 Remote Control Fan Speed And Light Functions. Fan speed 1 = minimum speed 2 = low speed 3 = medium low speed 4 = medium speed 5 = medium high speed 6 = high speed This button turns the fan off. Forward / Reverse button- This button controls the direction of the fan rotation .
