SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, OPC UA and
EtherNet/IP.
By Pressing the "Set Communication" button from the main window for SW67B39 (Fig. 2)
the window "Set Communication" appears (Fig. 3).
The means of the fields for "OPC UA Server" are:
In the field "IP Address" the IP address for OPC UA side of the converter is defined;
In the field "SubNet Mask" the SubNet Mask for OPC UA side of the converter is
defined;
In the field "Gateway" the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out
of the net;
In the field "DNS" the IP Address of the DNS server is defined. This feature can be
enabled or disabled pressing the Check Box field;
In the field "Port" the port of OPC UA Server is defined.
The means of the fields for "EtherNet/IP" are:
In the field "IP Address" the IP address for EtherNet/IP side of the converter is
defined;
In the field "SubNet Mask" the SubNet Mask for EtherNet/IP side of the converter
is defined;
In the field "Gateway" the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out
of the net;
In the field "Port" the port used for EtherNet/IP communication is defined;
In the fields "Number Byte
defined;
In the fields "Number Byte
defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
IN" the number of input byte of the slave station is
Out" the number of output byte of the slave station is
User Manual OPC UA Server / EtherNet/IP Slave
Document code: MN67B39_ENG

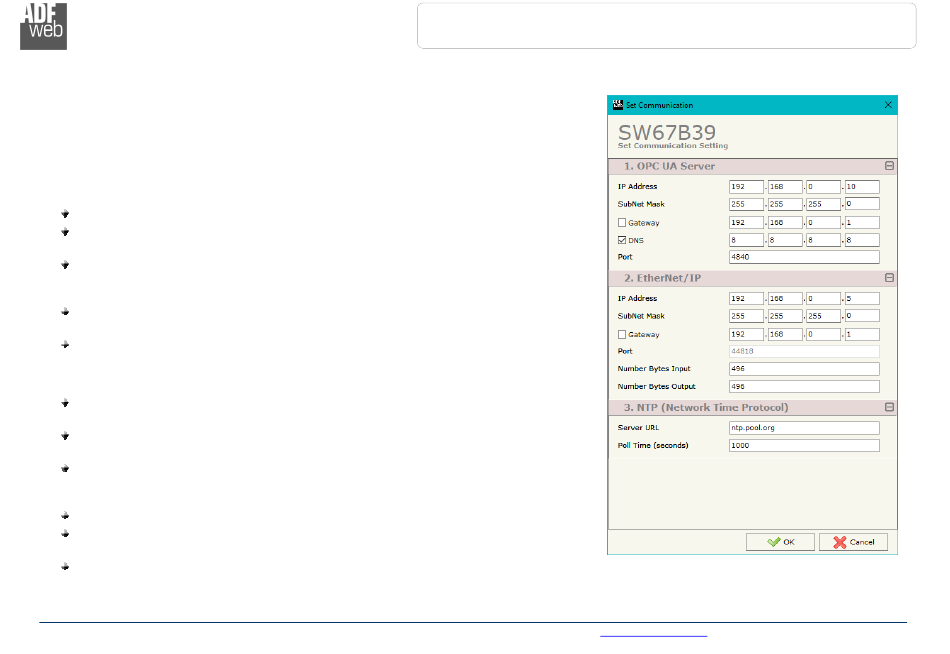

Figure 3: "Set Communication" window
