Industrial Electronic Devices
User Manual
Revision 1.000
English

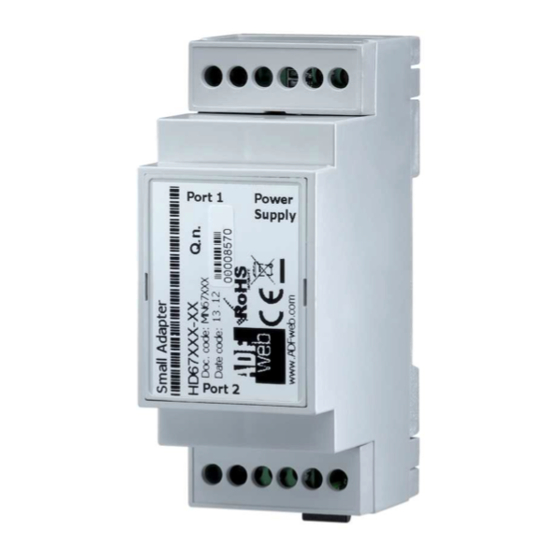

OPC UA Server / Modbus Slave -
Converter
(Order Code: HD67B28-B2)
for Website information:
http://www.adfweb.com/?Product=HD67B28
for Price information:
http://www.adfweb.com/?Price=HD67B28-B2
Benefits and Main Features:
Triple electrical isolation
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual OPC UA Server / Modbus Slave
Document code: MN67B28_ENG
Revision 1.000
For others OPC UA Server devices, see also the following links:
OPC UA Server from/to ...
www.adfweb.com?Product=HD67B26
www.adfweb.com?Product=HD67B27
www.adfweb.com?Product=HD67B29
www.adfweb.com?Product=HD67B30
www.adfweb.com?Product=HD67B31
www.adfweb.com?Product=HD67B32
www.adfweb.com?Product=HD67B33
www.adfweb.com?Product=HD67B34
www.adfweb.com?Product=HD67B35
www.adfweb.com?Product=HD67B36
www.adfweb.com?Product=HD67B37
www.adfweb.com?Product=HD67B38
www.adfweb.com?Product=HD67B39
www.adfweb.com?Product=HD67B40
www.adfweb.com?Product=HD67B41
www.adfweb.com?Product=HD67B42
www.adfweb.com?Product=HD67B43
www.adfweb.com?Product=HD67B44
www.adfweb.com?Product=HD67B45
www.adfweb.com?Product=HD67B46
www.adfweb.com?Product=HD67B47
www.adfweb.com?Product=HD67B48
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Page 1 of 28
(Serial)
(Modbus Master)
(Modbus TCP Master)
(Modbus TCP Slave)
(Bacnet Master)
(Bacnet Slave)
(CAN)
(CANopen)
(DeviceNet Master)
(DeviceNet Slave)
(DMX)
(EtherNet/IP Master)
(EtherNet/IP Slave)
(J1939)
(KNX)
(MQTT)
(NMEA0183)
(NMEA2000)
(PROFINET Master)
(PROFINET Slave)
(SNMP Manager)
(SNMP Agent)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web HD67B28-B2
Summary of Contents for ADF Web HD67B28-B2
- Page 1 Industrial Electronic Devices User Manual Revision 1.000 English OPC UA Server / Modbus Slave - Converter (Order Code: HD67B28-B2) For others OPC UA Server devices, see also the following links: for Website information: http://www.adfweb.com/?Product=HD67B28 OPC UA Server from/to … www.adfweb.com?Product=HD67B26 (Serial) www.adfweb.com?Product=HD67B27...
-
Page 2: Table Of Contents
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 2 of 28 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 3 of 28 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 4 of 28 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 5 of 28 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67B28-2-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... - Page 6 User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 6 of 28 Industrial Electronic Devices Figure 1b: Connection scheme for HD67B28-5-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
-
Page 7: Characteristics
Page 7 of 28 Industrial Electronic Devices CHARACTERISTICS: The HD67B28-B2 is a OPC UA Server / Modbus Slave converter. It allows the following characteristics: Up to 1500 bytes in reading and 1500 bytes in writing; Two-directional information between Modbus bus and OPC UA bus;... -
Page 8: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67B28-B2 Consumption at 24V DC: Device W/VA HD67B28-B2 Caution: Not reverse the polarity power HD67B28-B2 ADFweb.com Srl –... -
Page 9: Function Modes
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 9 of 28 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’: The first, with Dip1 in Off position (factory setting), is used for the normal working of the device. The second, with Dip1 in On position, is used for upload the Project/Firmware. -
Page 10: Leds
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 10 of 28 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 11: Rs232
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 11 of 28 Industrial Electronic Devices RS232: The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a Null Modem cable (a serial cable where the pins 2 and 3 are crossed). It is recommended that the RS232 cable not exceed 15 meters. -
Page 12: Rs485
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 12 of 28 Industrial Electronic Devices RS485: For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet). -
Page 13: Ethernet
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 13 of 28 Industrial Electronic Devices ETHERNET: The Ethernet connection must be made using Connector3 of HD67B28-x-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. -
Page 14: Use Of Compositor Sw67B28
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 14 of 28 Industrial Electronic Devices USE OF COMPOSITOR SW67B28: To configure the Converter, use the available software that runs with Windows called SW67B28. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 15: New Configuration / Open Configuration
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 15 of 28 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “OPC UA Server / Modbus Slave - Converter”... -
Page 16: Software Options
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 16 of 28 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. In the section “Language”... - Page 17 User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 17 of 28 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 18: Set Communication
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 18 of 28 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, OPC UA Server and Modbus. By Pressing the “Set Communication”... - Page 19 User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 19 of 28 Industrial Electronic Devices The means of the fields for “NTP (Network Time Protocol)” are: In the field “Server URL” the URL or the IP Address of the NTP Server is defined; In the field “Poll Time (seconds)”...
-
Page 20: Opc Ua Access
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 20 of 28 Industrial Electronic Devices OPC UA ACCESS: By Pressing the “OPC UA Access” button from the main window for SW67B28 (Fig. 2) the window “OPC UA Server Access” appears (Fig. 4). This section is used to define the list of OPC UA variables to read/write. -
Page 21: Update Device
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 21 of 28 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 22 User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 22 of 28 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67B28 device. Warning: If Fig.
-
Page 23: Modbus Map
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 23 of 28 Industrial Electronic Devices MODBUS MAP: On Modbus side, the map is created automatically. In relation to the configuration defined, it is possible to have two different maps. Read with Input Register / Status Function not enabled Data in reading: Type... - Page 24 User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 24 of 28 Industrial Electronic Devices Read with Input Register / Status Function enabled Data in reading: Type Address Function Description Input Bytes 0-1 of internal array Input Register Input Bytes 2-3 of internal array Input Register...
-
Page 25: Mechanical Dimensions
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 25 of 28 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 7: Mechanical dimensions scheme for HD67B28-x-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 26: Ordering Informations
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 26 of 28 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67B28 – x – B 2 Connectors Type 2: Fixed Screw Terminal Enclosure Type... -
Page 27: Disclaimer
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 27 of 28 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 28: Warranties And Technical Support
User Manual OPC UA Server / Modbus Slave Document code: MN67B28_ENG Revision 1.000 Page 28 of 28 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
