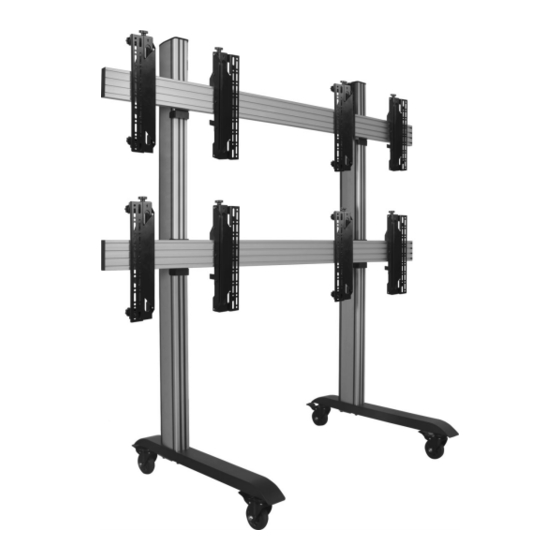

BT8371
UNIVERSAL MOBILE VIDEOWALL STAND
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Stand
PLEASE KEEP THIS FOR FUTURE REFERENCE
Installation Safety Notes....................................................................................................... . ..............2
Parts List.............................................................................................................................................6
Installation Instructions....................................................................................................... . ................8
Optional Accessories...............................................................................................................
B-Tech Contact Details........................................................................................................... . ..........24
INSTALLATION TOOLS REQUIRED
Crosshead
screwdriver
CONTENTS
10mm Spanner
B-TECH AV MOUNTS
www.btechavmounts.com
FEATURES
• Universal stand suitable for video wall screens
from 32" - 70" (81cm - 177cm)
• Max weight per screen: 50kg (110lbs)
• Designed for screens with VESA
mounting patterns
• Suitable for landscape or portrait screen mounting
• Includes non-marking 4" locking/braked castors
and alternative levelling feet
• Collar compatible accessories such as shelves
can be fitted directly to the extrusion
• Integrated cable management
• All mounting hardware included
This assembly manual covers different installations.
Please note that some parts or procedures shown
may not be required for installation.
70"
177cm
Per Screen
Level
& non-VESA
®
50kg
...............23
Knife
TM
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for B-Tech BT8371
Summary of Contents for B-Tech BT8371
- Page 1 70" 50kg 177cm Per Screen CONTENTS Installation Safety Notes........................2 Parts List.............................6 Installation Instructions........................8 Optional Accessories..........................23 B-Tech Contact Details........................24 INSTALLATION TOOLS REQUIRED Crosshead 10mm Spanner screwdriver Level Knife B-TECH AV MOUNTS www.btechavmounts.com...
- Page 5 BT8390-VESA400MAF 481.6mm* 468.4mm* BT8390-VESA400MAP (Closed) 950mm *+/-10mm Micro-Adjustment BT8371 MAX LOAD CONFIGURATIONS MAX COLUMN HEIGHT 3.6M Note: Screen weight must be evenly spread up the vertical column Column height: Up to 2.4m Column height: 3m Column height: Up to 3.6m...
- Page 6 BT8371 Due to the multiple installations available each option below PARTS LIST is dependent on the stand ordered. PLEASE KEEP THIS FOR FUTURE REFERENCE BASE CASTORS BT8380-BASE BT8380-CASTORS ITEM PART NAME PER PACK BASE SUPPORT STEM M8 x 90mm SCREW...
- Page 7 SPACER BT8390-SP PART NAME ITEM PER PACK SPACER OPTIONAL RAIL EXTENSION KIT BT8390-EXT PART NAME ITEM TOTAL PER PACK JOINING BAR M6 x 8mm GRUB SCREW 3AF HEX KEY Screen Interface Arms INTERFACE KIT BT8390-VESA200F BT8390-VESA400F BT8390-VESA400MAF PART NAME ITEM PER PACK SCREEN INTERFACE ARM M6 x 8mm HEX SCREW...
- Page 8 OPTIONAL: EXTENDING THE COLUMNS i. Insert the joining bars (item C7) halfway into the non-threaded end of the column (item C1). The two joining bars with grub screws (item C8) go in the front of the column and the 2 joining bars with hex bolts (item C9) go in the back.
- Page 9 OPTIONAL: EXTENDING THE MOUNTING RAIL Combine Mounting Rails together using the BT8390-EXT i. On the intended front facing side of the mounting rail (item E1) insert 4 x joining bars (item G1) half-way into each slot, on the back side insert 1 x joining bar into the top slot and 1 x joining bar into the third slot (see fig.
- Page 10 INSTALLATION INSTRUCTIONS Attach Joining Plate to Column i. Connect together the M8 x 12mm (item D3) with M8 Sliding Nut (item D2) onto the joining plates (item D1). ii. Lay columns (items C1) on the floor and slide on the joining plates (item D1). IMPORTANT: Make sure the end with M8 threads are at the bottom of the columns.
- Page 11 iii. Use the spacer (item G1) to set the distance between joining plates (items D1) on the column (item C1) according to the screen size. Once set, tighten the M8 x 12mm screws (item D3). ADJUSTMENT KNOB Leave at least a 5mm gap at the top of the column (item C1) for the end cap (item C2)
- Page 12 Insert Sliding Nuts into Mounting Rails Lay mounting rails (item E1) on the floor and insert 4 x M8 sliding nuts (item D2). 2 in the second slot, 2 in the bottom slot. Insert 4 sliding nuts for each joining plate (item D1) to be attached to the rail.
- Page 13 Attach Rails to Columns On the floor, lay the columns (item C1) face down onto the mounting rails (item E1). Through the joining plates (item D1), fasten the M8 x 12mm screws (item D3) into the M8 sliding nuts (item D2) attaching the rails to the columns. To ensure straight assembly of columns (item C1), make sure the distance of the outer joining plates (item D1) to the end of the rails (item E1) are set the same on each rail.
- Page 14 Assemble Bases to Columns i. For a mobile application, unscrew the levelling feet (item A5) on the base (item A1) and replace with the castors (item B1) before attaching the base to the columns. NOTE: Ensure castors are set on the braked position for assembly.
- Page 15 Attaching Fixed and Tilt Interface Arms to the Screens Attach the interface arms (items H1) to the back of the screen using the screen fixing kit (items A-I). Ensure the arms are positioned the correct way round and the same holes are used on both arms.
- Page 16 Attaching Micro-Adjustment Interface Arms to Screen (BT8390-VESA400MAF) Attach the interface arms (items H1) to the back of the screen using the screen fixing kit (items D-I). Ensure the arms are positioned the correct way round and the same holes are used on both arms. INTERFACE ARM LEFT SCREEN FIXING KIT INTERFACE ARM RIGHT...
- Page 17 Attaching Pop-Out Interface Arms to Screens (BT8390-VESA400MAP) i. Attach the interface arms (items H1) to the back of the screen using the screen fixing kit (items D-I). Ensure the arms are positioned the correct way round and the same holes are used on both arms. SCREEN FIXING KIT INTERFACE ARM LEFT INTERFACE ARM RIGHT...
- Page 18 Mount Screen to Rail i. Hook the first screen onto bottom left of the stand. A. FIXED & TILT ARMS B. BT8390-VESA400MAF ARMS C. BT8390-VESA400MAP ARMS ii. With a level, align the screen to the floor using the height A. FIXED & TILT ARMS adjustment screws / knobs on top of the interface arms.
- Page 19 iii. Laterally adjust screen by hand. Lateral adjustment X axis Lateral adjustment X axis NOTE: If mounting 3 or more screens across, mount the first screen centrally onto the bottom rail. Hook on the remaining flat screens After mounting each screen use the Y & Z micro-adjustment knobs on the interface arms to level and align screen* (see next page).
- Page 20 Using a level, align the flat screen to the floor using the Z axis adjustment knobs. Use the Y axis knobs to ensure flat screen is perpendicular with the floor. HEIGHT ADJUSTMENT Z AXIS KNOB DEPTH ADJUSTMENT Y AXIS KNOB DEPTH ADJUSTMENT Y AXIS KNOB...
- Page 21 Secure Screens Once screens are aligned, tighten the safety screws on the bottom of interface arms (item H1) SAFETY SAFETY SCREW SCREW Servicing Screens (Pop-Out Arms only) Push centrally at the left and right of the screen Item H1 to pop-out the mount. The screen will rest in the popped-out 'open' position for servicing.
- Page 22 Add End Caps and Cable Management Covers i. After screen cables are connected and routed down the back of the columns (item C1), partially clip on the cable management covers (item C3), this allows easy removal if more cables need adding. Once satisfied all cables are fitted, clip the covers on fully. ii.
- Page 23 OPTIONAL ACCESSORIES Insert 2 x M8 sliding nuts (items C5) into the column (item C1) front slots. Mount a B-Tech Shelf (BT7032 / BT7033 / BT7863) by fastening the M8 x 12mm screws (item C6) to the M8 sliding nuts (item C5).
- Page 24 B-Tech AV Mounts is a division of B-Tech International Design & Manufacturing Ltd. B-Tech, Better By Design & System X are registered trademarks of B-Tech International Design & Manufacturing Ltd. All other brands and product names are trademarks of their respective owners.
