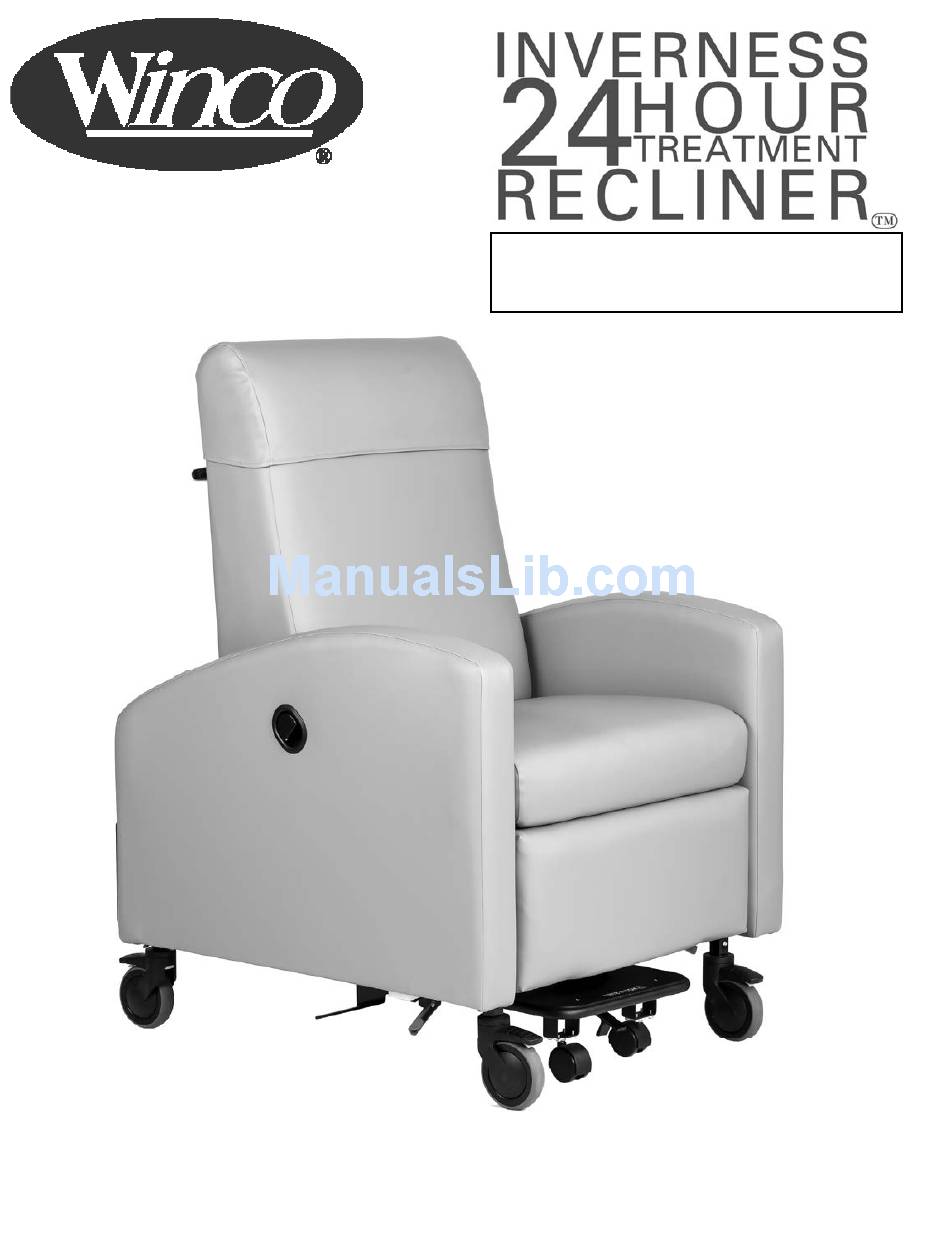

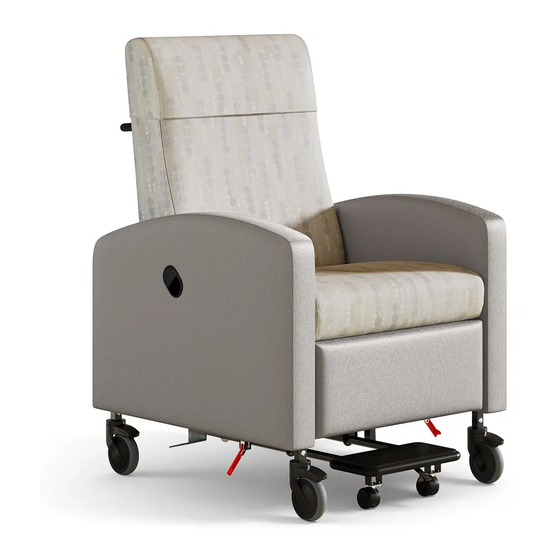

OWNER'S OPERATING &
MAINTENANCE MANUAL
PATENT PENDING
PLEASE DO NOT DISCARD THIS MANUAL! KEEP FOR FUTURE REFERENCE AND TRAINING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6240 Inverness 24 Hour Treatment Recliner and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winco 6240 Inverness 24 Hour Treatment Recliner

Summary of Contents for Winco 6240 Inverness 24 Hour Treatment Recliner

  • Page 1 OWNER’S OPERATING & MAINTENANCE MANUAL PATENT PENDING PLEASE DO NOT DISCARD THIS MANUAL! KEEP FOR FUTURE REFERENCE AND TRAINING...

  • Page 2: Table Of Contents

    24 HOUR CHAIR OPTIONS......................19 ARMREST COVER INSTALLATION INSTRUCTIONS...............20-22 CONTACT & WARRANTY INFORMATION............…..BACK COVER Winco assumes no responsibility for damage or injury caused by the improper assembly, installation, use or maintenance of this product. IMPORTANT! PLEASE READ THIS ENTIRE MANUAL BEFORE USING RECLINER. DO NOT INSTALL, MAINTAIN OR OPERATE THIS EQUIPMENT WITHOUT READING AND FOLLOWING THIS MANUAL.

  • Page 3: Important Safety Information

    DO NOT MODIFY THE PLUG IN ANY WAY. No adapter should be used with this product. 14. For an added level of safety; Winco recommends the use of a 120 volt GFCI (ground fault circuit interrupter) out- let.
  • Page 4 “Class II Double-Insulated” devices. ISOLATION DIAGRAM FOR HEAT & MASSAGE SYSTEM Area Insulation Type Basic Operational Double Insulated/Reinforced Double Insulated/Reinforced Double Insulated/Reinforced Double Insulated/Reinforced Double Insulated/Reinforced Inlet FE pin only connects to inlet & pad Copyright 2016, WINCO MFG., LLC...
  • Page 5 5. STAY CLEAR of the recliner mechanisms when operating chair. 6. DO NOT use recliner for transporting in or with ANY type of vehicle or trailer. Winco recliners have not been tested or approved for use by an occupant in any type of vehicle or trailer.

  • Page 6: Assembly Instructions

    PREPARATION: 1. Carefully examine your product for any damage. Inspect all components. IF DAMAGE IS EVIDENT, REFUSE SHIPMENT, & CONTACT FREIGHT CARRIER OR WINCO IMMEDIATELY. 2. Remove all packaging material that was secured for shipping. 3. Carefully remove the product from the carton.
  • Page 7 7. Ensure that the rear apron rests OVER the rear brace of chair. IMPORTANT: • Test to ensure the back has been properly installed by pulling up on the back's push handle. The back should remain securely in place. Copyright 2016, WINCO MFG., LLC...

  • Page 8: Attendant Operating Instructions

    WARNING: • Footplate can be a tripping hazard if not returned to its stored position after use. • ALWAYS store footplate when not in use. Copyright 2016, WINCO MFG., LLC...
  • Page 9 NOTE: The recline lever does NOT have to be used to return legrest to its stored position. WARNING: • Attendant should NOT use foot to return the legrest to it's stored position. Damage to mechanism may occur. Copyright 2016, WINCO MFG., LLC...
  • Page 10 Keep hands away from mecha- nism NOTE: Pushing down on the seat or legrest (B) is recommended for maximum leverage. Release the Trendelenburg lever. IMPORTANT: • Check to be sure the Trendelenburg lever has returned to the locked position. Copyright 2016, WINCO MFG., LLC...
  • Page 11 This should only be performed by an attendant. WARNING: • Do NOT recline chair with either/both swing-arms in the 180° position. • Do NOT leave occupant unattended with either or both swing- arms in any open position. Copyright 2016, WINCO MFG., LLC...
  • Page 12 When closing swing-arm, make sure occupants extremities are clear of swing-arm travel and latch. • When closing swing-arm, make sure any foreign objects are clear of swing-arm travel and latch. This section intentionally left blank Copyright 2016, WINCO MFG., LLC...

  • Page 13: Attendant Operating Instructions

    IMPORTANT: • Pivot-tables have been rated for a MAXIMUM weight capacity of 20 lbs. (9.0 kg) TO REMOVE THE TABLE: 3. Loosen the adjustment knob (A) 2 full turns and lift up on pivot-table. Copyright 2016, WINCO MFG., LLC...

  • Page 14: Occupant Operating Instructions

    Release the recline lever once the back has fully returned to the upright position. 2. Press down on the legrest with legs/feet until it locks NOTE: The recline lever does NOT have to be used to return legrest to its stored position. Copyright 2016, WINCO MFG., LLC...
  • Page 15 If switch displays a flashing light; Disconnect from wall, check all accessible wire connectors under chair for possible loose connections, then re-plug into wall and test again. • If system still does not work contact Winco customer service: 1-800-237-3377. CORD STORAGE: (Models with Heat-HT or Heat & Massage-HM) To prevent tripping on cord, damage to cord, damage to recliner, power cord should be coiled and stored in the "Hook &...

  • Page 16: General Maintenance

    Proceed to step 5 or 6 depending on the necessary adjustment. IMPORTANT: • DO NOT allow button on end of cylinder to depress while performing this task or gas cylinder will extend fully and become impossible to reinstall on chair. Copyright 2016, WINCO MFG., LLC...
  • Page 17 • Periodically inspect tightness of all screws, bolts, and nuts. Winco furnishings are built to provide durable reliable service when properly cared for. In general all of our products should be 1) Cleaned 2) Rinsed 3) Allowed to air dry.

  • Page 18: Specifications

    Seat Height ......25.5" to Foot Plate....19" Seat Depth......21" Seat Width (arm to arm)..26" Weight ........199lbs. Overall Height ......51.5" Overall Width (Trays Down)..39" (Trays Up)..56.25" (Arms at 180°)..33.5" Maximum Weight Capacity..500 lbs. Copyright 2016, WINCO MFG., LLC...

  • Page 19: Hour Chair Options

    (Marine Board Only) FACTORY INSTALLED ONLY Accessory Holder IV Pole & Attachment ARMREST COVERS Available on LEFT, RIGHT, or BOTH sides AIRX....ARMREST COVER RIGHT IV........ IV Pole & Attachment AILX....ARMREST COVER LEFT This page intentionally left blank Copyright 2016, WINCO MFG., LLC...

  • Page 20: Armrest Cover Installation Instructions

    Pull down tight for best fit. 4. Fit the rear portion of the Armrest cover over the rear of the arm. 5. Smooth wrinkles. 6. Make sure openings align with release handle. This section intentionally left blank Copyright 2016, WINCO MFG., LLC...
  • Page 21 5. Fit the rear portion of the Armrest cover over the rear of the arm. 6. Gently insert pivot table into bracket. 7. Tighten knob. Copyright 2016, WINCO MFG., LLC...
  • Page 22 IV bracket. 4. Reattach the bracket using the screw that was removed in step 1. Tighten both screws. This section intentionally left blank Copyright 2016, WINCO MFG., LLC...
  • Page 23 This page intentionally left blank Copyright 2016, WINCO MFG., LLC...

  • Page 24: Limited Warranty

    TERMS Winco Mfg., LLC. warrants this product to be free of manufacturer’s defects in material and workmanship, provided that the product is used ac- cording to normal operating conditions and proper maintenance intended by manufacturer. This warranty is available only to the original retail purchaser, is non-transferable and commences on the date of retail sale;...
