Press INFO to access the second page of Settings. Here you can turn the Compressor On or Off. When set to On,
bitbox will apply a compressor to the signals sent to Out1 and Out2. Press INFO again to cycle through the two Settings
screens.
Press the HOME button to go back to the Main screen.

Working in Flipped Mode

When the value for Flip UI is set to ON, the user interface on the touch screen will be inverted. Use this setting when the
module is installed in a rack with the touchscreen on the bottom. When flipped, the firmware adjusts how the buttons,
Control Knobs and CV Trigger jacks are mapped to the user interface. One noteworthy change is that the HOME and INFO
buttons now reverse functions. This is done so that HOME is always on the left and INFO is always on the right. The
alignment of the Control Knobs in this mode is slightly high compared to the parameters on the touch screen. However, the
top left control knob will control the top left parameter, and the lower right control knob will control the lower right
parameter. The CV Trigger inputs are also now mapped to the inverted display. The Input Jacks and Output Jacks maintain
their original assignments. The figure below shows the faceplate labels for an inverted module.

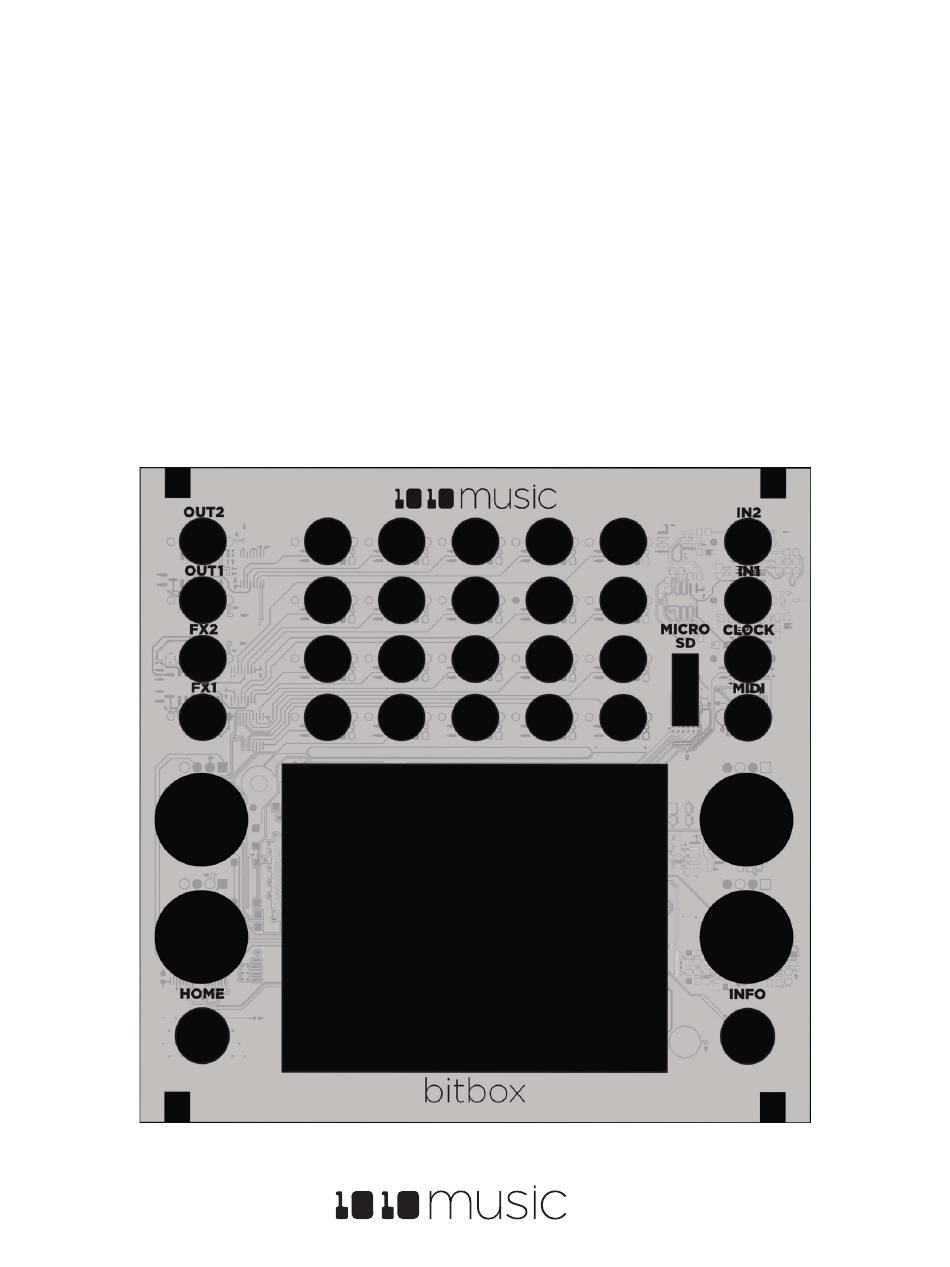

Figure 7: Inverted Faceplate Labels
