1010music Bitbox Micro 2.2 Quick Start Manual

Advertisement

Quick Links

Bitbox Micro 2.2 Quick Start Guide

SETUP

1. Insert the microSD card into the MICRO SD slot, notched edge away
from the screen.
2. Connect the narrow end of the ribbon power cable to the module, with
the red side of the cable on the side of the header with a white bar.
3. Turn off your Eurorack then connect the wide end of the ribbon power
cable to the Eurorack +12V power supply, with the red side of the cable
aligned with pin 1 or the -12V pins on the power supply bus.
4. Mount the module into the rack and then power it up.
5. After boot up, the bitbox micro displays the Pads screen with a grid of
WAV files loaded from one of the presets provided on the microSD
card.
6. Connect Out 7 and Out 8 to your mixer or speakers.

OVERVIEW

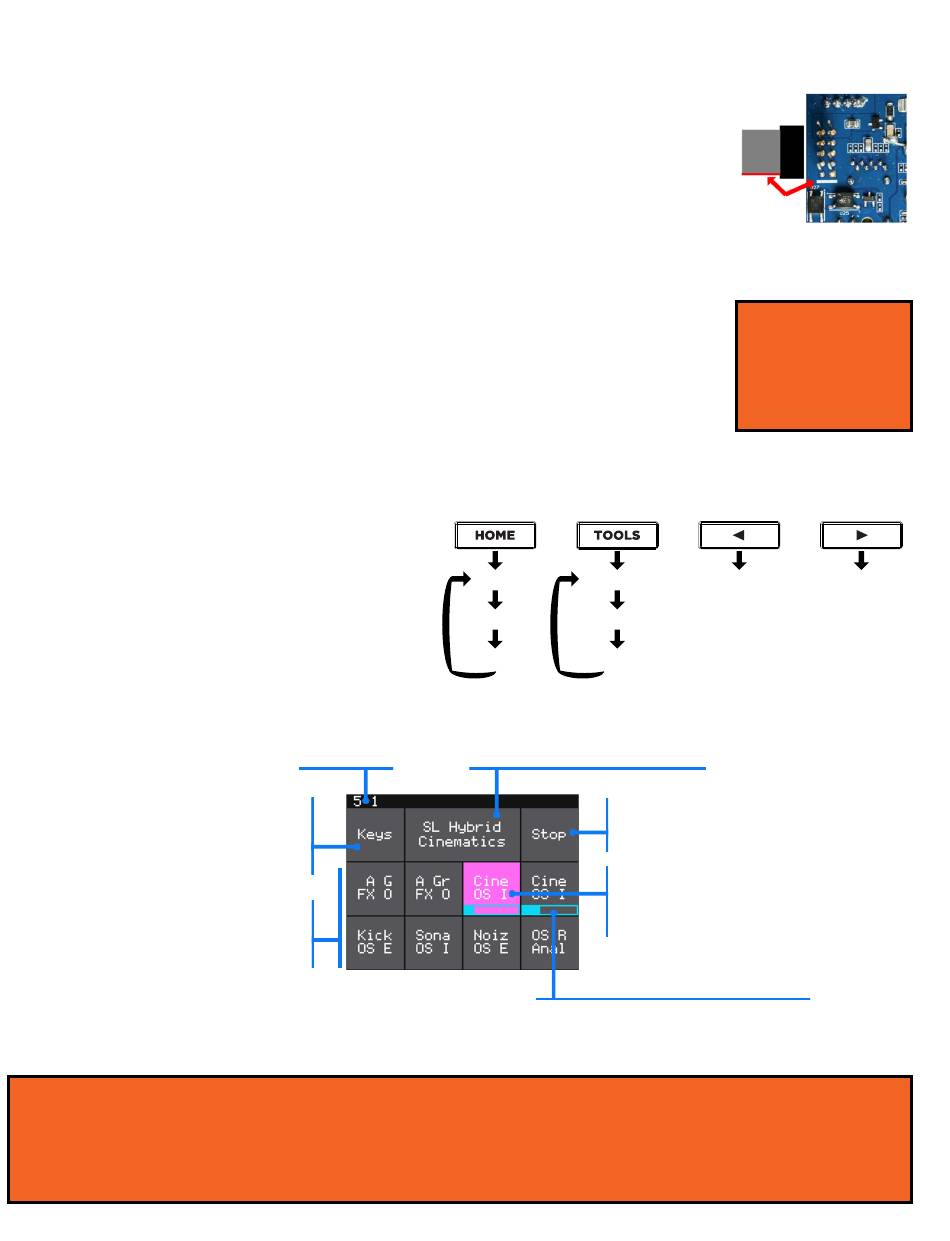

When bitbox micro powers up, you see the
Pads Screen. Touch a pad to trigger it.
Push the Home and Tools buttons to cycle
through the other screens. Push the
arrow buttons to view more or less detail
about the selected element. Turn the
knobs to select elements and assign
values.
KEYS BUTTON
Touch to play selected
pad with on screen
keyboard.
NOTE:
■ The bitbox micro does not automatically save your changes. Any unsaved
changes will be lost when you load a preset or power down the module. Touch
the Preset Name and then touch Save to commit the changes to the preset.
Copyright 2023 by 1010music LLC
CLOCK
Beats : bars
PADS
Touch to
trigger.
Pads Screen
Pads
Settings
Mixer
Input
FX
Output
PRESET NAME
Touch to load and save presets.
STOP BUTTON
Touch once to stop
playback of pads.
SELECTED PAD
Touch a pad or turn a knob
to change selection.
PROGRESS BAR
Bar is white when waiting for
quantization break to start playback.
Ribbon Cable
Orientation
The bitbox
micro requires
400mA on the
+12V rail only.
Less Detail
More Detail
Page 1
