Chapter 4

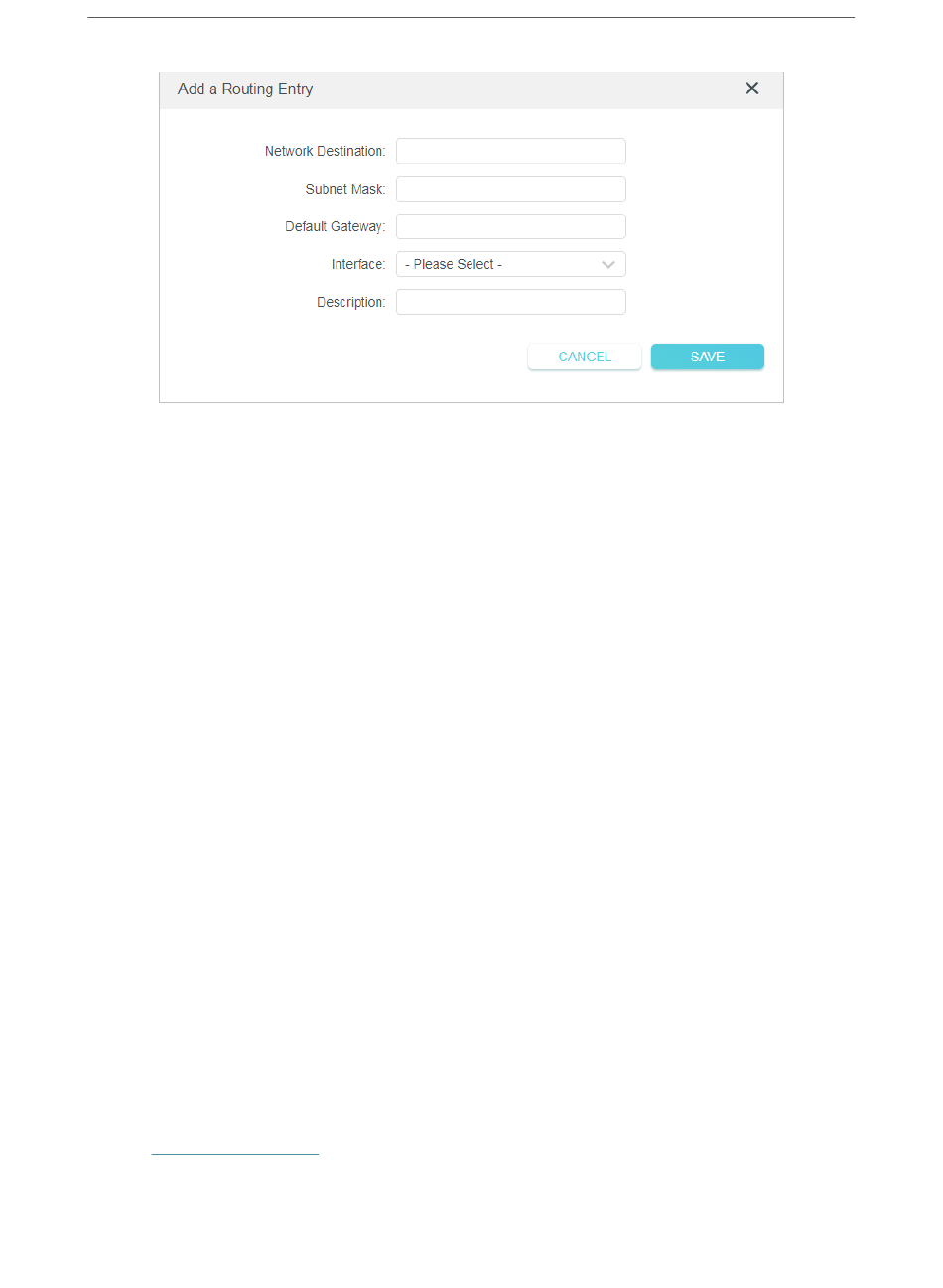

• Network Destination
static route. This IP address cannot be on the same subnet with the WAN IP or
LAN IP of Router A. In the example, the IP address of the company network is
the destination IP address, so here enter 172.30.30.1.
• Subnet Mask
the network portion, and which portion is the host portion.
• Default Gateway
packets will be sent. This IP address must be on the same subnet with the
router's IP which sends out data. In the example, the data packets will be sent to
the LAN port of Router B and then to the Server, so the default gateway should
be 192.168.0.2.
• Interface: Determined by the port (WAN/LAN) that sends out data packets. In
the example, the data are sent to the gateway through the LAN port of Router
A, so LAN should be selected.
• Description:
5 Click SAVE.
6 Check the Routing Table
is set successfully.
4 3

Wireless

4 3 1

Wireless Settings

1. Visit http://tplinkwifi.net, and log in with the password you set for the router.
2. Go to Advanced >
3. Configure the wireless settings for the wireless network and click SAVE.
- The destination IP address that you want to assign to a
- The Subnet Mask determines which portion of an IP address is
- The IP address of the gateway device to which the data
Enter a description for this static routing entry.
below. If you can find the entry you've set, the static routing
Wireless > Wireless
Configure the Router in Wireless Router Mode
Settings.
31
