Installing the Device
2.5.1 Connecting AC or DC Power
4.
5.
6.
14
Connect the positive wire from the power source to the positive/live (+/L) termi-
nal on the terminal block.
1
3
4
5
6
7
Screw-Type Terminal Block
1
Pluggable Terminal Block
2
Jumper
3
Positive/Live (+/L) Terminal
4
Negative/Neutral (-/N) Terminal (-/N)
5
Surge Ground Terminal
6
Chassis Ground Terminal
7

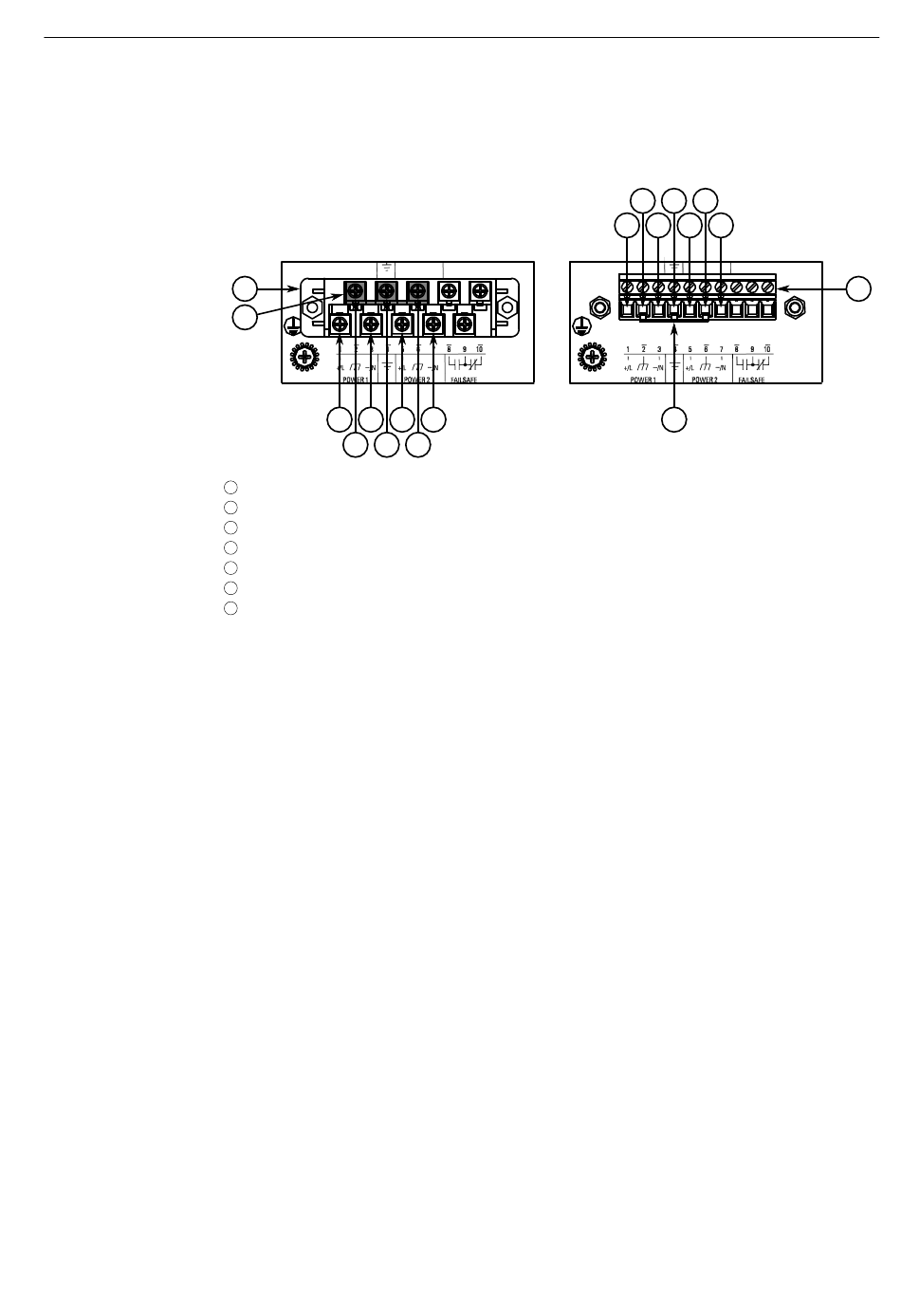

Figure 2.4
Terminal Block Wiring
Connect the negative wire from the power source to the negative/neutral (-/N)
terminal on the terminal block.
Install the supplied metal jumper between terminals 2, 4 and 6 to connect the
surge ground terminals to the chassis ground terminal. The surge ground termi-
nals are used as the ground conductor for all surge and transient suppression cir-
cuitry internal to the unit.
4
5
6
6
7
6
4
5
4
5
3
RUGGEDCOM M2200F
Installation Manual, 01/2020, C79000-G8976-1343-06
