Step 4: Connect To Power And Turn On - SureCall SC-FusionInstall User Manual

Place the Booster
To install the booster to a wall, select a location that is near a working AC outlet. Use the supplied screws or appropriate
screws for surface of mounting location and drill through screw tab holes on booster (see "Booster Diagram" illustration) and
mount the booster to a wall.
Next, connect the outside antenna and booster by connecting the open end of the 50 ft. cable leading from the outside
antenna to the port of the booster marked "OUTSIDE".
44
OFF
44
OFF
45
OFF
52
OFF
51
OFF

Step 4: Connect to Power and Turn On

Connect the AC power cord to the booster and plug into a 110V AC power outlet. Once the booster has been completely
assembled, turn the booster's power switch to ON.
Note: If the Power LED does not turn ON, see the "Troubleshooting" on page 10 .
Note: This booster is rated for 5-15V input voltage. DO NOT use the booster with a higher voltage power supply. This can damage the booster,
cause personal injury, and void your warranty.
This booster should not be used near open fire or flame. Storage and transportation: Store and place in non-extreme room-temperature
and dry environment.
SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com
N connector to inside antenna
54
64
54
64
55
65
62
72
61
71
Screw tab holes for optional wall mounting
F connector to outside antenna

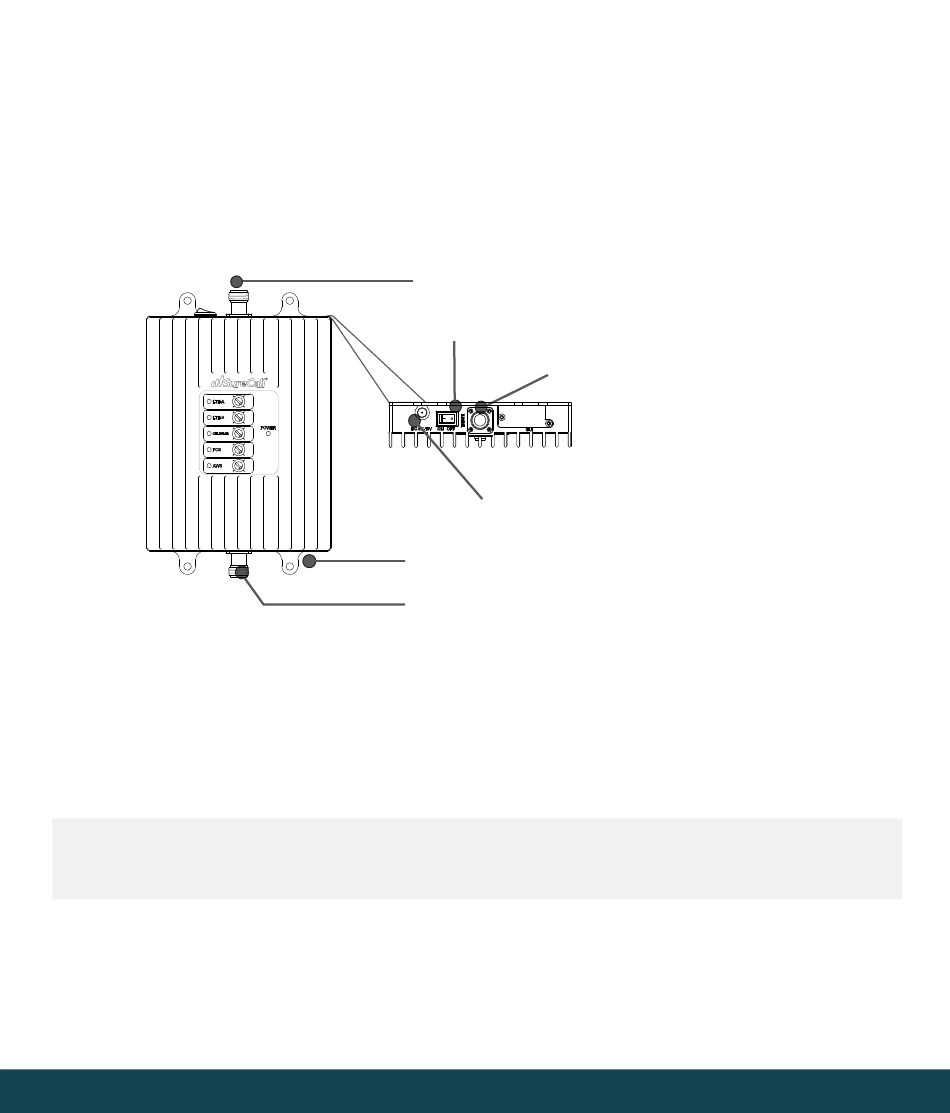

Booster Diagram
