Steps

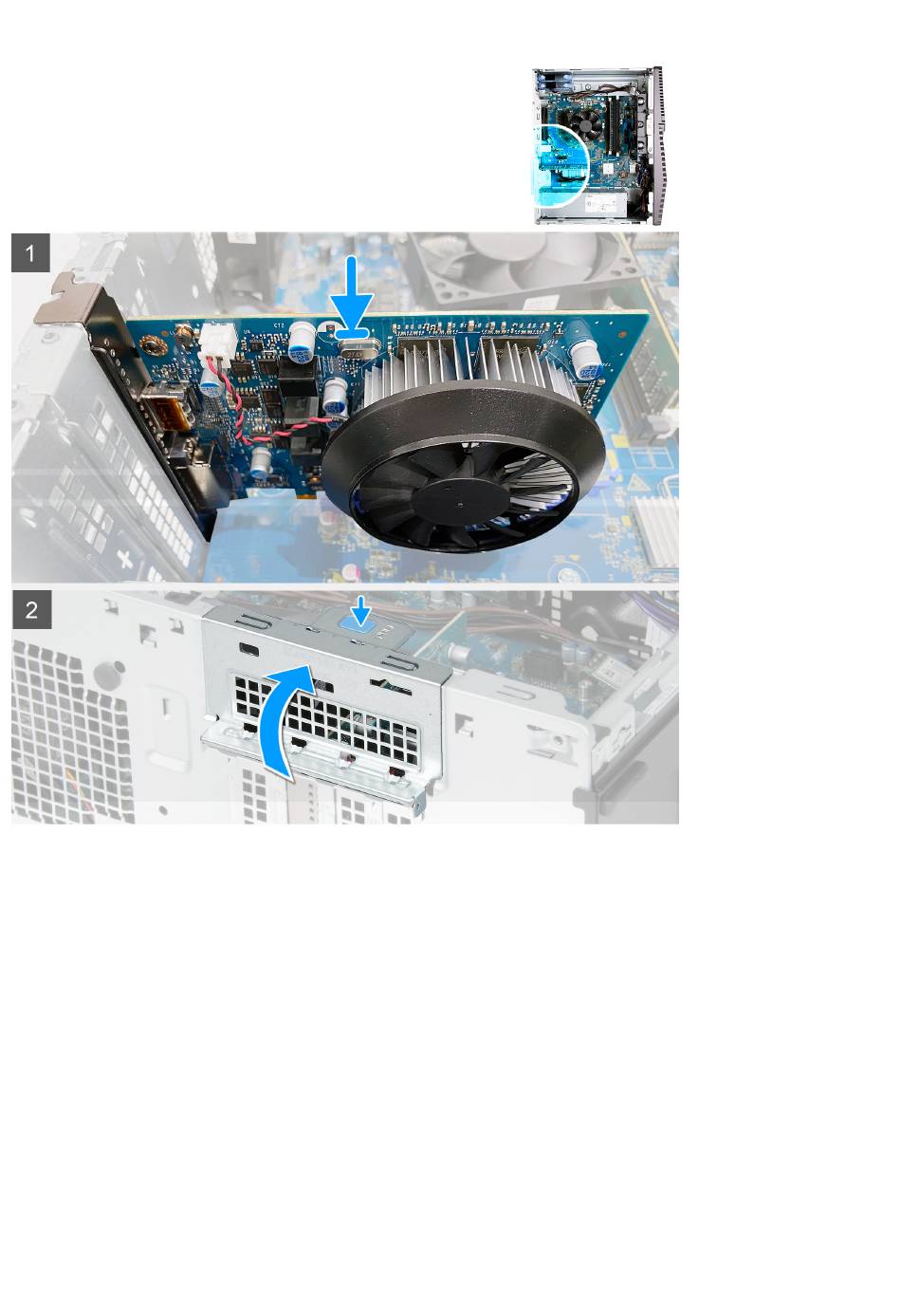

1. Align the graphics card with the PCI-Express card connector on the system board.
2. Using the alignment post, connect the card in the connector and press down firmly. Ensure that the card is firmly seated.
3. Close the PCIE door.
Next steps
1. Install the
left-side
cover.
2. Follow the procedure in
Power button
Removing the power button
Prerequisites
1. Follow the procedure in
2. Remove the
left-side
cover.
30
Removing and installing components
After working inside your
computer.
Before working inside your
computer.
