Disassembly And Reassembly; Left-Side Cover - Dell G5 5000 Service Manual

16. hard-drive assembly

Disassembly and reassembly

Left-side cover

Removing the left-side cover
Prerequisites
Follow the procedure in Before working inside your computer
About this task

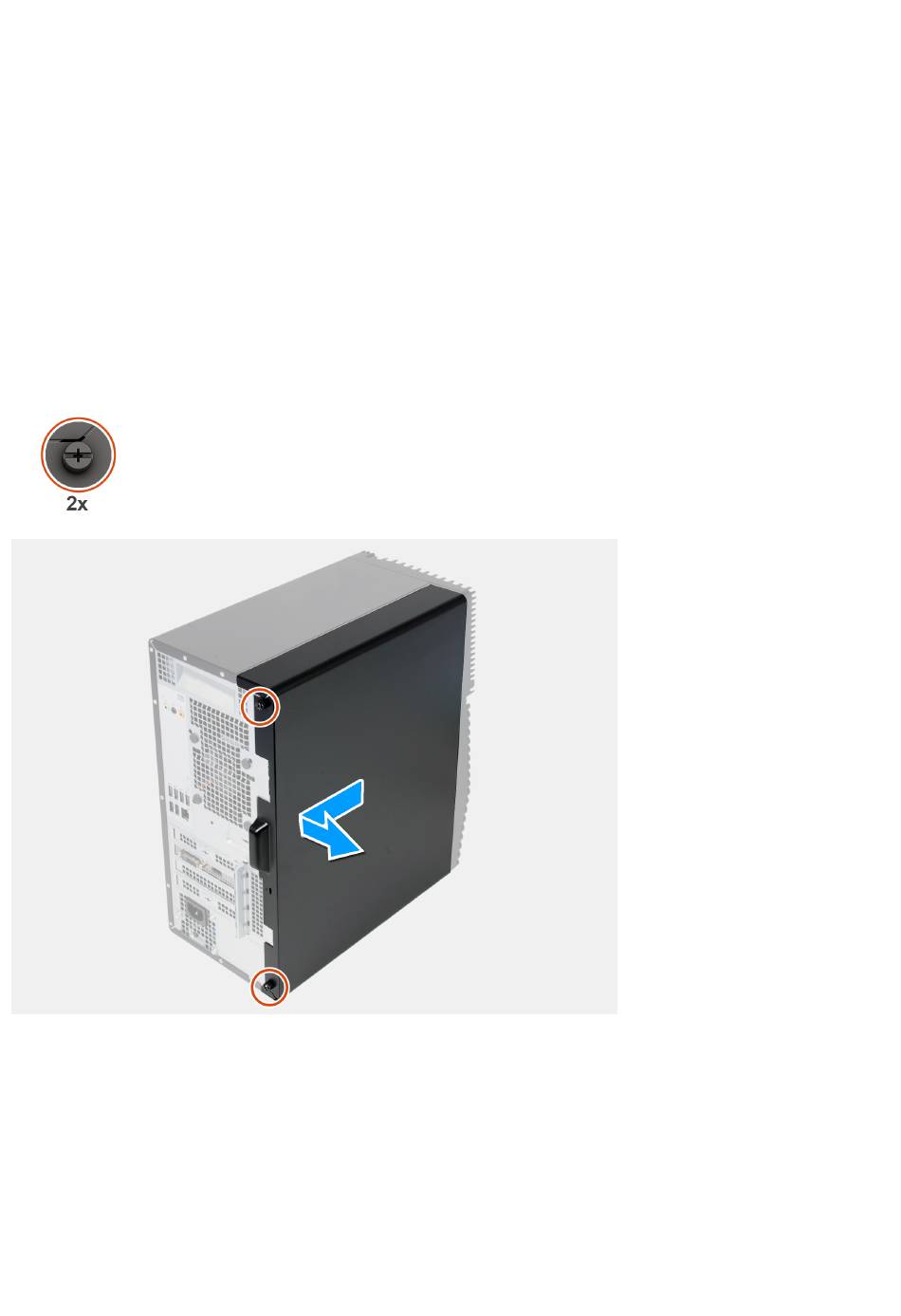

The following images indicate the location of the left-side cover and provides a visual representation of the removal procedure.
Steps
1. Loosen the two captive screws that secure the left-side cover to the chassis.
2. Using the tab on the left-side cover, slide and lift the left-side cover off the chassis.
Installing the left-side cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
10 Removing and installing components
