Major Components Of G5 5000 - Dell G5 5000 Service Manual

Table 1. Screw list (continued)
Component
System board
System board

Major components of G5 5000

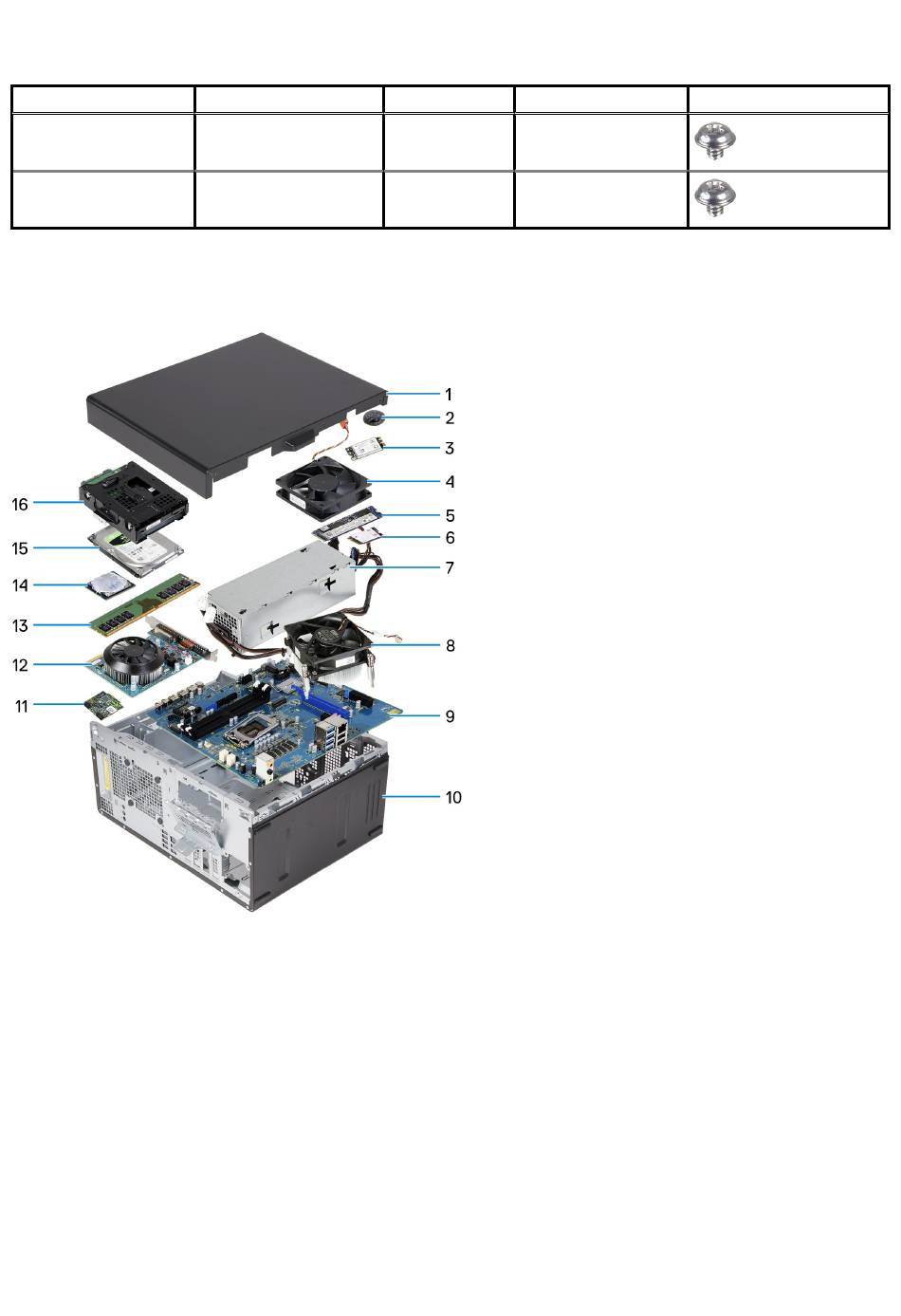

The following image shows the major components of G5 5000.
1. left-side cover
2. coin-cell battery
3. wireless card
4. chassis fan
5. M.2 2280 solid-state drive
6. M.2 2230 solid-state drive
7. power-supply unit
8. processor fan and heat-sink assembly
9. system board
10. front cover
11. LED daughter board
12. graphics card
13. memory module
14. processor
15. hard drive
Secured to
Chassis
Chassis
Screw type Quantity
#6-32 8
M2x4 1
Screw image
Removing and installing components 9
