Chassis Fan - Dell G5 5000 Service Manual

Steps

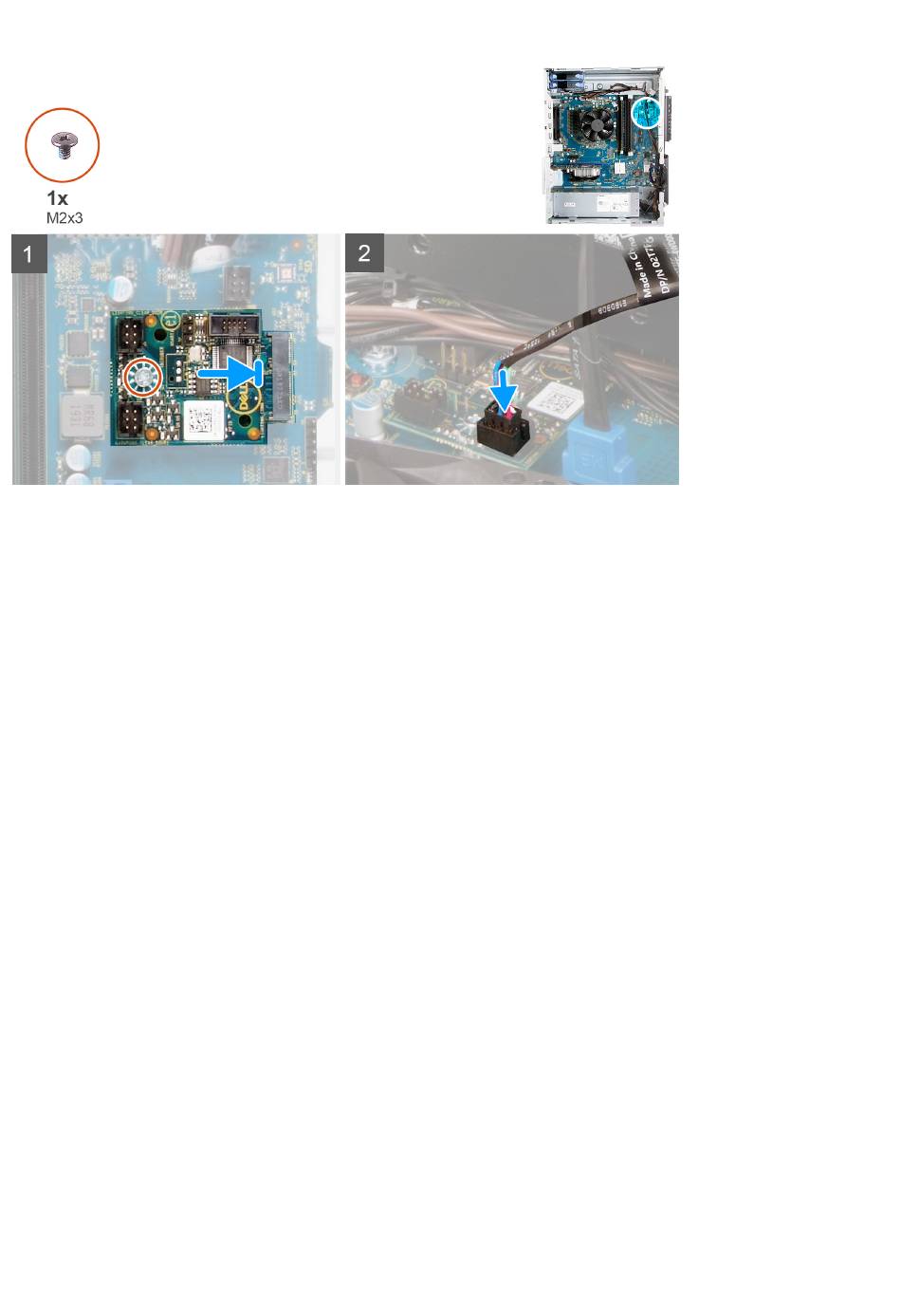

1. Slide the LED daughter board in place on the system board.
2. Replace the screw (M2x3) that secures the LED daughter board to the system board.
3. Connect the front-LED cable to the connector on the LED daughter board.
Next steps
1. Install the left-side cover.
2. Follow the procedure in

Chassis fan

Removing the chassis fan
Prerequisites
1. Follow the procedure in
2. Remove the left-side cover.
About this task
The following images indicate the location of the chassis fan and provides a visual representation of the removal procedure.
After working inside your computer.
Before working inside your computer.
Removing and installing components 17
