Traditional Barrel BBQ Grill
Owner's Manual
Assembly and Operating Instructions
Model # CG2036003-MM
Tools required for assembly: (Not Included)
Pliers, Philips & Flathead Screwdrivers, and Adjustable Wrench.
Keep this manual for future reference.
CG2036003-MM Eng
Page 1 of 24
20190711

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CG2036003-MM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Member's Mark CG2036003-MM

Summary of Contents for Member's Mark CG2036003-MM

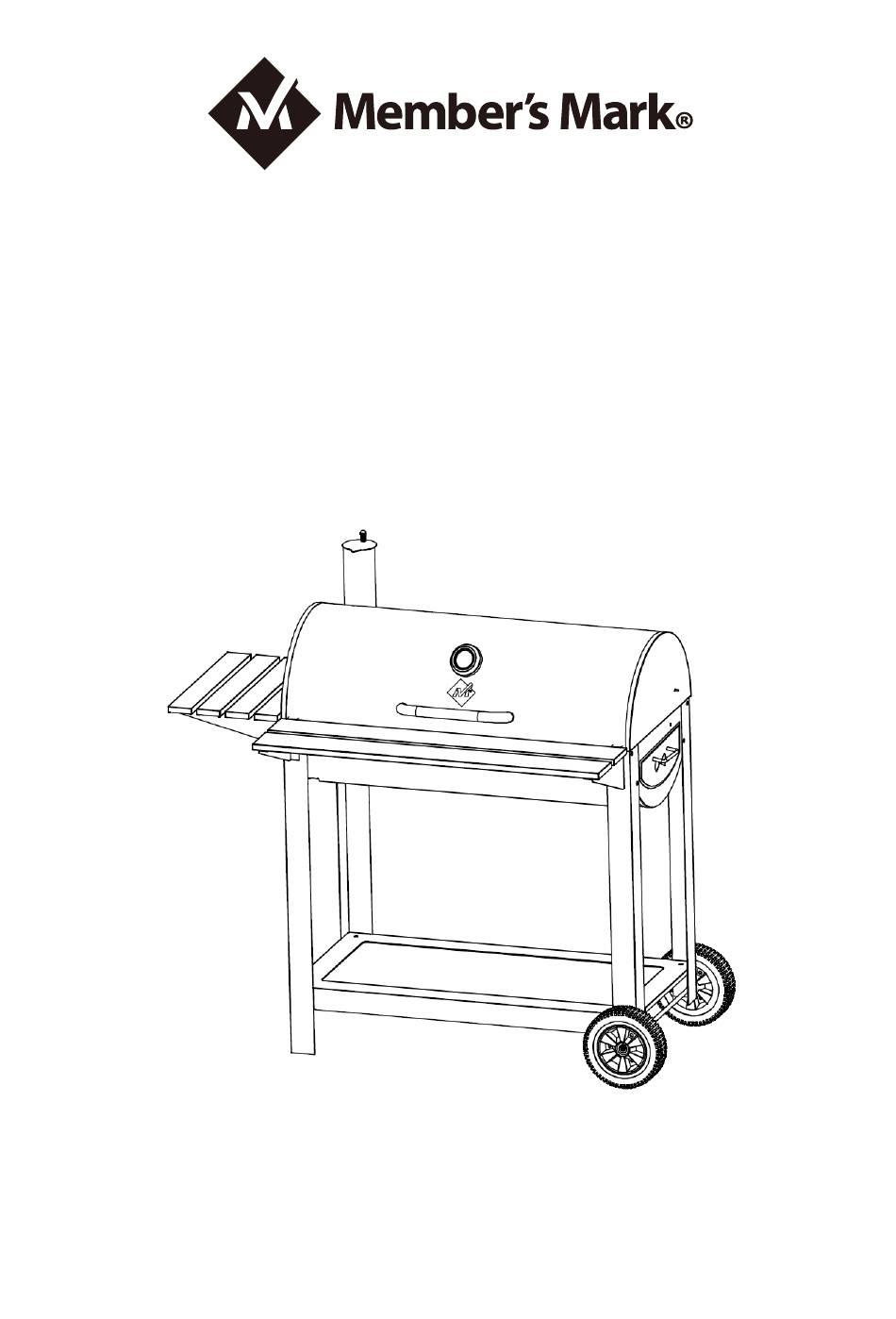

  • Page 1 Traditional Barrel BBQ Grill Owner’s Manual Assembly and Operating Instructions Model # CG2036003-MM Tools required for assembly: (Not Included) Pliers, Philips & Flathead Screwdrivers, and Adjustable Wrench. Keep this manual for future reference. CG2036003-MM Eng Page 1 of 24 20190711...
  • Page 2 DO NOT attempt to move the grill. Wear protective gloves or oven mitts. DO NOT touch any hot grill surfaces. DO NOT wear loose clothing or allow hair to come in contact with grill. 20190711 CG2036003-MM Eng Page 2 of 24...
  • Page 3 Use caution and common sense when operating your grill, Failure to adhere to safety warning and guidelines in this manual could result in bodily injury or property damage. Save this manual for future reference. 20190711 CG2036003-MM Eng Page 3 of 24...
  • Page 4 We recommend two people for assembly of this grill. The following tools are required for assembly and are not included: ● Pliers ● Philips & Flathead Screwdrivers ● Adjustable Wrench WARNING ● Please wear gloves while assembling the grill. CG2036003-MM Eng Page 4 of 24 20190711...

  • Page 5: Product Diagram

    Product Diagram CG2036003-MM Eng Page 5 of 24 20190711...

  • Page 6: Component List

    2 pcs 2 pcs 2 pcs 1 pc 13. Front table slate 14. Right front table 15. Left front table 16. Temperature Gauge support support 2 pcs 1 pc 1 pc 1 pc 20190711 CG2036003-MM Eng Page 6 of 24...
  • Page 7 26. Cooking Grid 27. Lifter Handle 1 pc 1 pc 3 pcs STOP! DO NOT RETURN TO RETAILER. For assembly assistance, missing or damaged parts, please contact customer service at CustomerService@Rankam.com or at 1-888-837-1380. CG2036003-MM Eng Page 7 of 24 20190711...
  • Page 8 2 pcs Flange Nut (M6) 2 pcs Hinge Pin 2 pcs Cotter Pin Lid Handle Insulation 2 pcs Washer 2 pcs Wheel Washer Charcoal Grate Handle 2 pcs Insulation Washer 1 pc Spring 20190711 CG2036003-MM Eng Page 8 of 24...

  • Page 9: Assembly Procedures

    (5) as well. Then tighten them with nut M8(F). Assembly of legs on the right hand side of the grill 20190711 CG2036003-MM Eng Page 9 of 24...
  • Page 10 Place the Bottom Rack (8) under the Grill Body and tighten it with bolt M6x12 (D) to each leg’s bracket.. Mount the Charcoal Grate Clip (9) with Bolt M6x12 (D) and Nut M6 (H) 20190711 CG2036003-MM Eng Page 10 of 24...
  • Page 11 Assemble the Lower Hinges (11) on Grill Body (5) by bolts M6x30 (C) and lock nuts M6 (I). Do not tighten them at this moment Step 6. Assemble the Side Shelf (12) to Left legs (1) and (4), and Grill body (5) by bolt M6x12 (D) and nut M6 (H). 20190711 CG2036003-MM Eng Page 11 of 24...
  • Page 12 Step 8. Attach Front Table to Grill Body by using bolt M8x15 (A) - upper, bolt M6x12 (D) – lower and Nut M8 (F), and also bolt (D) to the front legs as well. 20190711 CG2036003-MM Eng Page 12 of 24...
  • Page 13 Temperature Gauge (16) to middle front of Lid (19) and tighten with the nut. Do not tighten thermometer by turning thermometer head; tighten rear bolt to moderate tension. DO NOT OVER TIGHTEN DAMAGE MAY OCCUR TO THERMOMETER. 20190711 CG2036003-MM Eng Page 13 of 24...
  • Page 14 Assemble the Warming Rack (22) to the Lid (19) and Grill Body (5), and tighten the wire end with cap nut M6 (J) and Cap nut M5 (K). Hang the Grease Cup Holder (23) to the right side of Grill Body (5) 20190711 CG2036003-MM Eng Page 14 of 24...
  • Page 15 Charcoal Grate smoothly towards the Grill Body. (IV) Keep pushing the Charcoal Grate in until the back lock at the bottom of Charcoal Grate hooks up to the latch on the inside of Grill Body. See below illustration Step 1 – Step 4 20190711 CG2036003-MM Eng Page 15 of 24...
  • Page 16 Charcoal Grate hooks up to the latch on the in side of Grill Body, then add charcoal. See below illustration Step 1 – Step 3. NOTE: Always close the Air-Vent and wear mittens/gloves before removing the Charcoal Grate 20190711 CG2036003-MM Eng Page 16 of 24...
  • Page 17 Grill Body. (IV) Remove the Charcoal Grate and proceed with cleaning. See below illustration Step 1 – Step 3. NOTE: Always close the Air-Vent and wear mittens/gloves before removing the Charcoal Grate. CG2036003-MM Eng Page 17 of 24 20190711...
  • Page 18 Step 17. Place cooking grid (26) onto the Grill Body (5). Note: when removing the grill, use the lifter (27) for help. See illustration below. Step 18. Assembly completed! CG2036003-MM Eng Page 18 of 24 20190711...

  • Page 19: Preparation For Use & Lighting Instructions

    Start with 5 pounds (2.3kg) of charcoal. This should be enough charcoal to cook with, once the curing process has been completed. When charcoal is burning strong, carefully place hot coals on charcoal grate. 20190711 CG2036003-MM Eng Page 19 of 24...
  • Page 20 Follow the instructions below carefully to build a fire. You may use charcoal and/or wood as fuel in the Barrel Grill (see “Adding Charcoal/Wood During Cooking” section of this manual). WARNING Never use charcoal that has been pre-treated with lighter fluid. Use only a high grade plain charcoal or charcoal/wood mixture. 20190711 CG2036003-MM Eng Page 20 of 24...
  • Page 21 Place food on cooking grids and close grill lid. Always use a meat thermometer to ensure food is fully cooked before removing from grill. Step 7 Allow grill to cool completely, and then follow instructions in the “After-Use Safety” and “Proper Care & Maintenance” sections of this manual. 20190711 CG2036003-MM Eng Page 21 of 24...

  • Page 22: Flavoring Wood

    When charcoal is burning strong again, wear oven mitts/gloves and carefully the return charcoal grid to grill body. Extinguish any hot ashes, coals or embers which may have fallen from the grill or beneath and around grill. 20190711 CG2036003-MM Eng Page 22 of 24...

  • Page 23: After-Use Safety

    We would like to hear from you with any comments or suggestions. In the continental U.S or Canada, you can call us toll-free at 1-888-301-0332 from 8 a.m. to 5 p.m. CST Monday – Friday. You can also send us an email using the feedback icon at SamsClub.com. Call center for missing parts 1-888-837-1380 CG2036003-MM Eng Page 23 of 24 20190711...

  • Page 24: Limited Warranty

    Do not return product to the store. WE CAN HELP. Rankam (China) Manufacturing Company Limited customerservice@rankam.com Please contact Customer Service at 1-888-837-1380 or at , Mon to Fri, 8:00 a.m. – 5:00 p.m. Pacific Standard Time. CG2036003-MM Eng Page 24 of 24 20190711...
