Member's Mark CG2320401-MM Owner's Manual

35 inch barrel grill
Hide thumbs Also See for CG2320401-MM:
Table of Contents

Advertisement

Quick Links

 This instruction manual contains important information necessary for
the proper assembly and safe use of the appliance.
 Read and follow all warnings and instructions before assembling and
using the appliance.
 Follow all warnings and instructions when using the appliance.
 Keep this manual for future reference.
Tools required for assembly: (Not Included)
For assistance, contact customer service at
or at 1 – 888 – 837 – 1380, 8:00am – 5:00pm, Pacific Standard Time, Monday to Friday
CG2320401-MM Eng

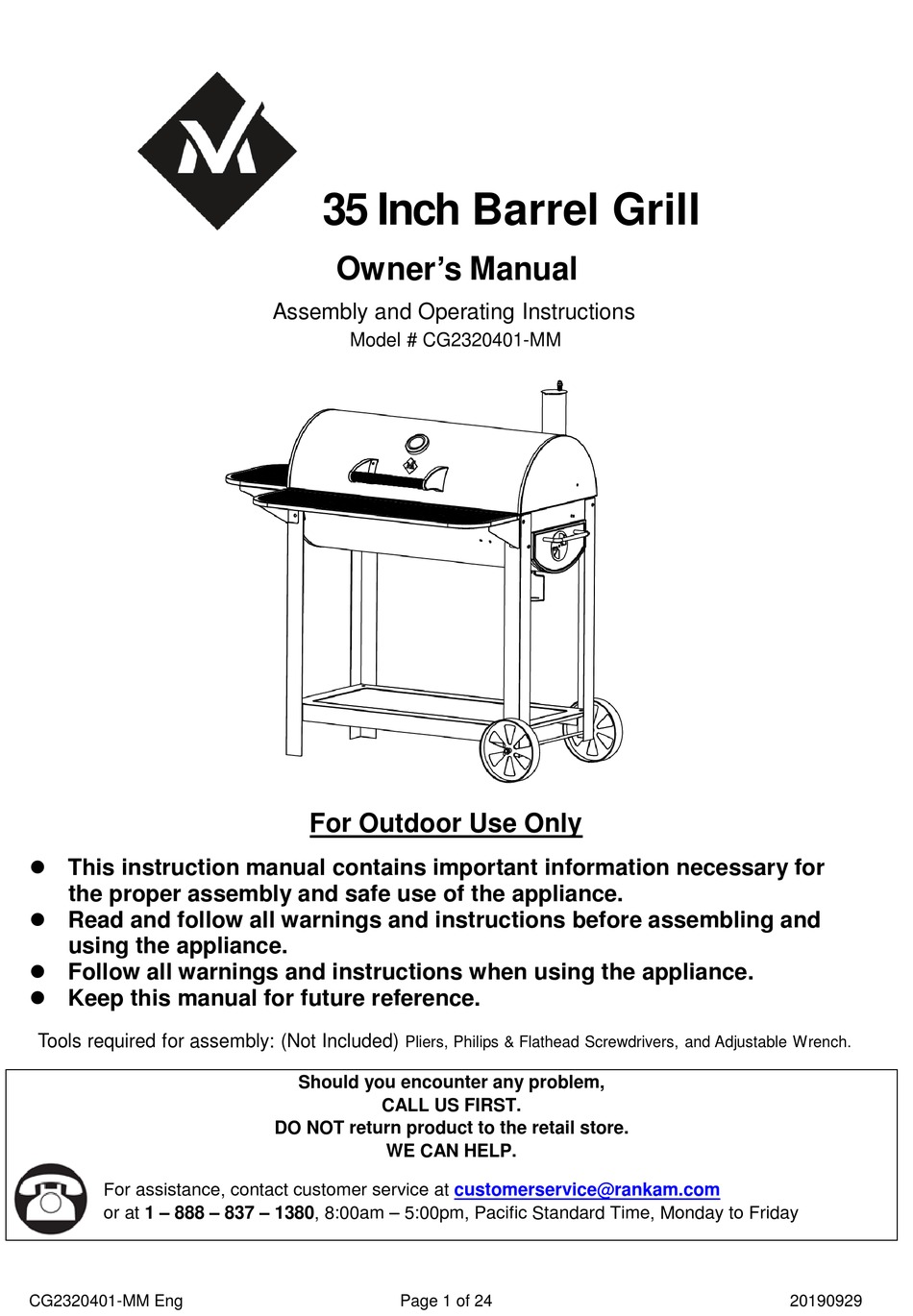

35 Inch Barrel Grill
Owner's Manual
Assembly and Operating Instructions
Model # CG2320401-MM
For Outdoor Use Only
Pliers, Philips & Flathead Screwdrivers, and Adjustable Wrench.
Should you encounter any problem,
CALL US FIRST.
DO NOT return product to the retail store.
WE CAN HELP.
Page 1 of 24
customerservice@rankam.com
20190929

Advertisement

Table of Contents
loading

Related Manuals for Member's Mark CG2320401-MM

Summary of Contents for Member's Mark CG2320401-MM

  • Page 1 35 Inch Barrel Grill Owner’s Manual Assembly and Operating Instructions Model # CG2320401-MM For Outdoor Use Only  This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.  Read and follow all warnings and instructions before assembling and using the appliance.
  • Page 2 DO NOT attempt to move the grill. • Wear protective gloves or oven mitts. • DO NOT touch any hot grill surfaces. • DO NOT wear loose clothing or allow hair to come in contact with grill. CG2320401-MM Eng Page 2 of 24 20190929...
  • Page 3 Use caution and common sense when operating your grill, Failure to adhere to safety warning and guidelines in this manual could result in bodily injury or property damage. Save this manual for future reference. CG2320401-MM Eng Page 3 of 24 20190929...

  • Page 4: California Proposition

    We recommend two people for assembly of this grill. The following tools are required for assembly and are not included: ● Pliers ● Philips & Flathead Screwdrivers ● Adjustable Wrench WARNING ● Please wear gloves while assembling the grill. CG2320401-MM Eng Page 4 of 24 20190929...

  • Page 5: Product Diagram

    Product Diagram CG2320401-MM Eng Page 5 of 24 20190929...

  • Page 6: Component List

    12. Side Shelf 2 pcs 1 pc 2 pcs 2 pcs 13. Front Shelf 14. Left Front Shelf 15. Right Front Shelf 16. Temperature Gauge Support Support 1 pc 1 pc 1 pc CG2320401-MM Eng Page 6 of 24 20190929...
  • Page 7 25. Charcoal Tray 26. Cooking Grid Handle 3 pcs 1 pc STOP! DO NOT RETURN TO RETAILER. For assembly assistance, missing or damaged parts, please contact customer service at CustomerService@Rankam.com or at 1-888-837-1380. CG2320401-MM Eng Page 7 of 24 20190929...

  • Page 8: Hardware List

    Hardware List CG2320401-MM Eng Page 8 of 24 20190929...

  • Page 9: Assembly Procedures

    Assembly left front leg (4) and left rear leg (1) to left side of grill body (5) with M8 x 12 bolts (B) and M8 nuts (F). Also assembly the left legs with M8 x 15 bolts (A) and M8 nuts (F). Put the M6 x 12 bolt (D) to left rear leg (2). CG2320401-MM Eng Page 9 of 24 20190929...
  • Page 10 Assembly bottom rack (8) to four legs with M6 x 12 bolts (D). Step 4. Assembly the wheels (6) and axles (7) to grill cart right legs with washers (P) and M10 lock nuts (E). CG2320401-MM Eng Page 10 of 24 20190929...
  • Page 11 Assembly air vent (10) to left panel of grill body (5) with M6 x 12 bolt (D) and M6 lock nut (L). Assembly lower hinges (11) to back side of grill body (5) with M6 x 30 bolts (C) and M6 nuts (H). CG2320401-MM Eng Page 11 of 24...
  • Page 12 Assembly side shelf (12) to left side panel of grill body (5) with M6 x 12 bolts (D) and M6 nuts (H) Step 8. Assembly left front shelf support (14) and right front shelf support (15) to front shelf (13) with M6 x 12 bolts (D) CG2320401-MM Eng Page 12 of 24 20190929...
  • Page 13 Assembly lip handle (20) to grill lid (19) with M6 x 12 bolts (D), big insulating washers (Q) and M6 nuts (H). Assembly upper hinge (21) to grill lid (19) with M6 x 30 bolts (C) and M6 nuts (H). CG2320401-MM Eng Page 13 of 24...
  • Page 14 M6 nuts (H). Then assembly the smoke stack lid (18) to smoke stack (17) with spring (R) and M8 cap nut (G). Step 12. Assembly the grill lid (19) to grill body (5). Aline the upper hinge (21) and lower hinge (11), insert hinge pins (M) and lock them with cotter pin (N). CG2320401-MM Eng Page 14 of 24 20190929...
  • Page 15 Assembly air vent (10) to charcoal tray (24) with M6 x 12 bolts (D) and M6 lock nut (L). Assembly charcoal tray ha ndle (25) to charcoal tray (24) with small insulating washer (S) and M6 nut (H). CG2320401-MM Eng Page 15 of 24...
  • Page 16 (III) Slide the charcoal tray smoothly towards the grill body. (IV) Keep pushing the charcoal tray in until the back lock at the bottom of charcoal tray hooks up to the latch on the inside of grill body. See below illustration Step 1 – Step 4 CG2320401-MM Eng Page 16 of 24 20190929...
  • Page 17 (IV) Remove the charcoal tray and proceed with cleaning. See below illustration Step 1 – Step 3. NOTE: Always close the Air-Vent and wear mittens/gloves before removing the charcoal tray CG2320401-MM Eng Page 17 of 24 20190929...
  • Page 18 Step 18. Place cooking grid (26) onto the grill. Assembly completed. CG2320401-MM Eng Page 18 of 24 20190929...

  • Page 19: Preparation For Use & Lighting Instructions

    Start with 5 pounds (2.3kg) of charcoal. This should be enough charcoal to cook with, once the curing process has been completed. When charcoal is burning strong, carefully place hot coals on charcoal grate. CG2320401-MM Eng Page 19 of 24...
  • Page 20 Follow the instructions below carefully to build a fire. You may use charcoal and/or wood as fuel in the Barrel Grill (see “Adding Charcoal/Wood During Cooking” section of this manual). WARNING Never use charcoal that has been pre-treated with lighter fluid. Use only a high grade plain charcoal or charcoal/wood mixture. CG2320401-MM Eng Page 20 of 24 20190929...
  • Page 21 Place food on cooking grids and close grill lid. Always use a meat thermometer to ensure food is fully cooked before removing from grill. Step 7 Allow grill to cool completely, and then follow instructions in the “After-Use Safety” and “Proper Care & Maintenance” sections of this manual. CG2320401-MM Eng Page 21 of 24 20190929...

  • Page 22: Flavoring Wood

    When charcoal is burning strong again, wear oven mitts/gloves and carefully the return charcoal grid to grill body. Extinguish any hot ashes, coals or embers which may have fallen from the grill or beneath and around grill. CG2320401-MM Eng Page 22 of 24...

  • Page 23: After-Use Safety

    A little residue left on the Cast Iron grates helps protect them between uses. The more Cast Iron Grids are used the better the non-stick qualities become. This is a great excuse to grill often! CG2320401-MM Eng Page 23 of 24 20190929...

  • Page 24: Limited Warranty

    1 – 888 – 837 – 1380, 8:00am – 5:00pm, Pacific Standard Time, Monday to Friday Manufacturer Information RANKAM (CHINA) MANUFACTURING COMPANY LIMITED Address: 18/F., New Lee Wah Centre, 88 Tokwawan Road, Kowloon, Hong Kong CG2320401-MM Eng Page 24 of 24 20190929...
