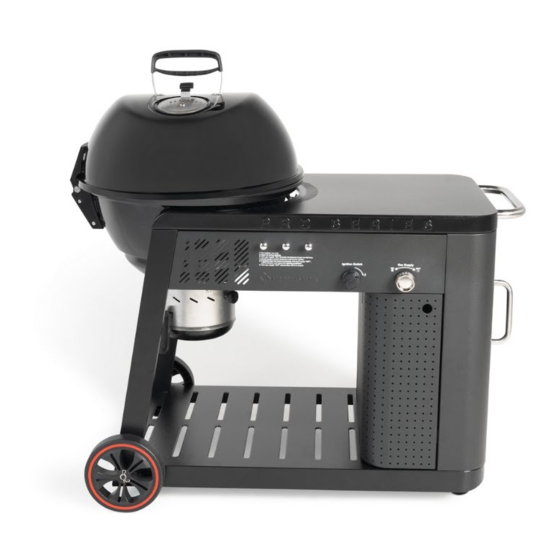

PRO SERIES
GAS ASSIST CHARCOAL GRILL
Assembly Instructions & User Manual
Model C35001 / C35001-1
STOP
Do not return this product to the store. If you need help, or require parts, call the Customer Care Hotline:
1-833-454-0864
This manual must remain with the product at all times.
FOR OUTDOOR USE ONLY.
Manual Revision #: 11.08.2021
