Connecting to the Scanner
Ethernet port:
1 Gbps ethernet adapter with RJ45
■
socket
Category Cat5e or better ethernet
■
cables
PoE is not supported
■

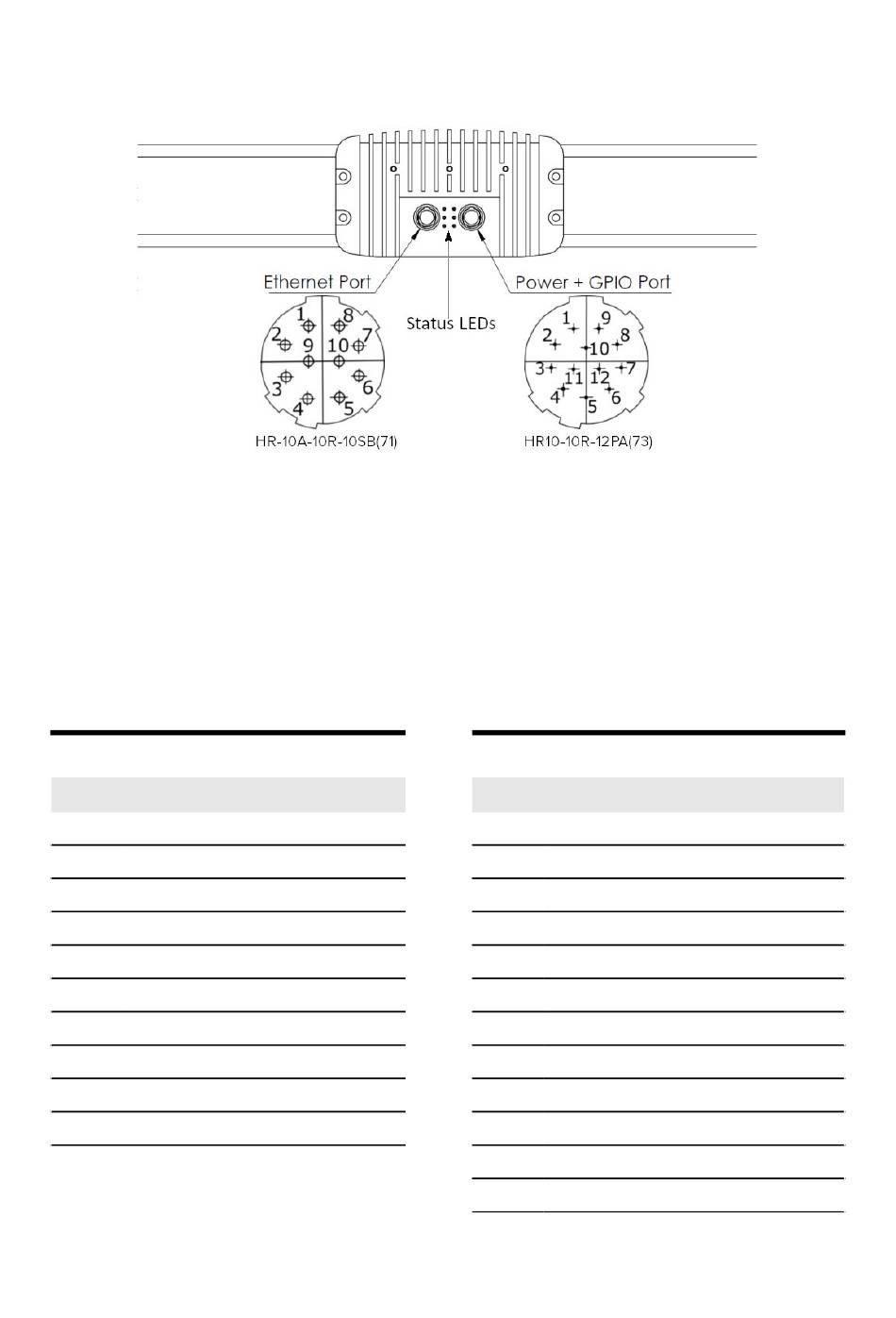

Ethernet Pinout
Pin Pinout
1 MD1_P
2 12V_IN
3 MD2_N
4 MD2_P
5 MD0_P
6 MD0_N
7 MD3_P
8 GND
9 MD1_N
10 MD3_N
01/2020
Power + GPIO port:
12 VDC power supply
■
Use only the supplied power
■
adapter
The I/O ports are reserved for
■
future use
Power Pinout
Pin
1
2
3
4
5
6
7
8
9
10
11
12
PhoXi 3D Scanner M - Quick Start Guide
Pinout
IN2: laser interlock (5 - 12 V)
IN1
OUT2
OUT1
POWER_+12VDC
POWER_GND
GPIO1
GPIO3
GPIO2
IN_GND: laser interlock ground
OUT_GND
GPIO4
