Mounting the Scanner

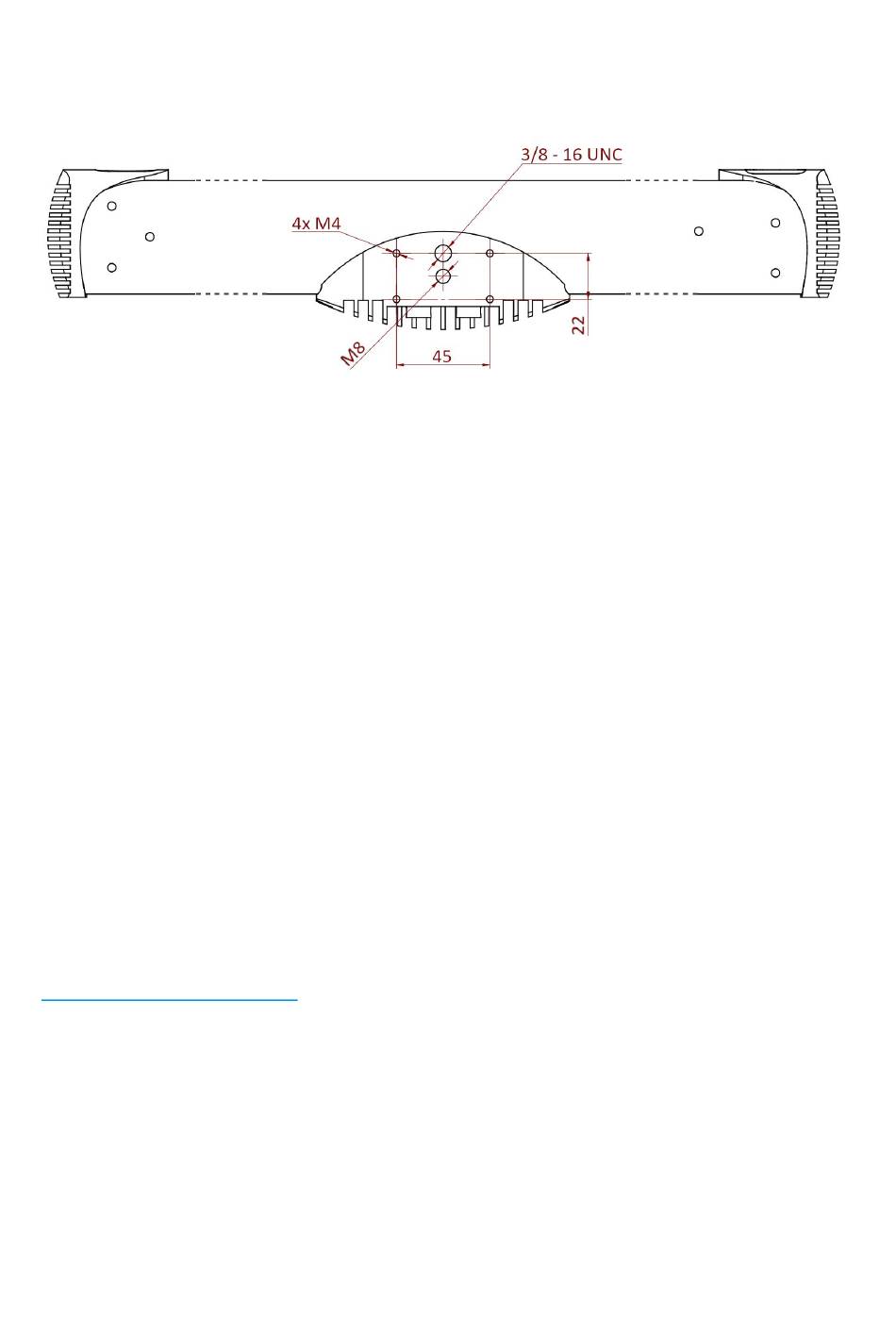

Mounting options:
Use 4x M4 screws with the supplied mounting plate.
■
Use a M8 screw.
■
Use a 3/8 - 16 UNC screw with a tripod.
■
Installation site restrictions:
Ensure that mounting construction is rigid enough to avoid vibrations during scanning.
■
Allow clearance of 25 mm for natural convection cooling.
■
The ambient temperature range for the scanner operation is 0 °C to 30 °C.
■
Separate the scanner from high-voltage devices and devices generating high electrical
■
noise.
The complete environment conditions for installation can be found in the full user manual at
www.photoneo.com/support
