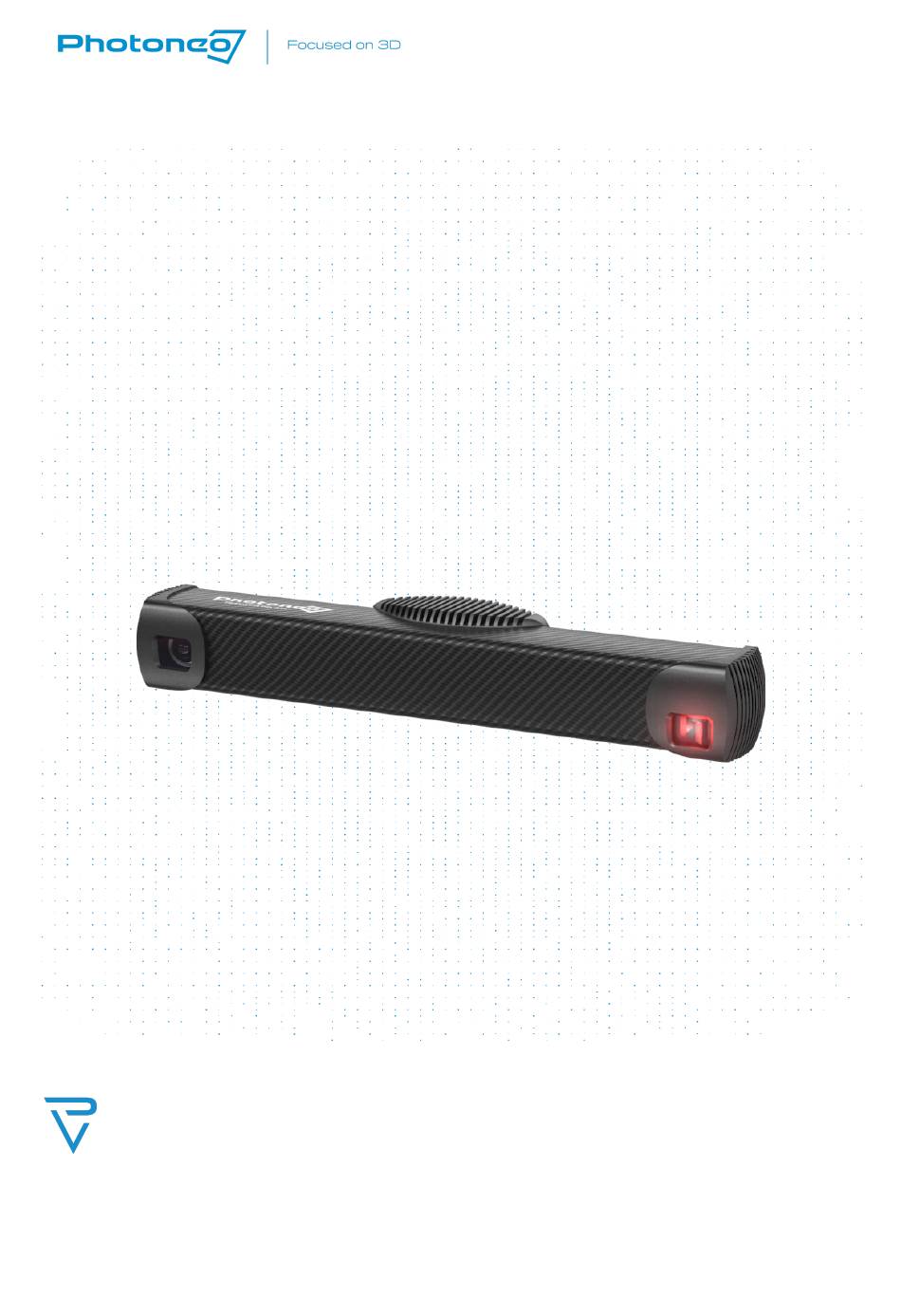

PhoXi 3D Scanner
User Manual and Installation Instructions

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PhoXi and is the answer not in the manual?

Questions and answers

Related Manuals for Photoneo PhoXi

Summary of Contents for Photoneo PhoXi

  • Page 1   PhoXi 3D Scanner  User Manual and Installation Instructions    1 ...
  • Page 2 01/2020  Thank you for choosing Photoneo® PhoXi® 3D Scanner. Please take a few minutes to read this manual and become  familiar with the device.   For more information on our products, accessories, replacement parts, software and services, see our website  www.photoneo.com/phoxi-3d-scanner/​...
  • Page 3 Please note the following:  ⚠ WARNING  Photoneo products may only be used in accordance with relevant technical documentation. If products and components  from other manufacturers are used, these must be recommended or approved by Photoneo. Proper transport, storage,  installation, assembly, commissioning, operation, and maintenance are required to ensure that the products operate safely ...
  • Page 4 01/2020  Preface  Purpose of the Manual  This manual provides information about the installation and set up of the PhoXi 3D Scanner and is designed for engineers,  installers, and electricians who possess a general knowledge of automation.  Scope of the Manual  ...

  • Page 5: Table Of Contents

    27  Declaration of Conformity 27  FCC Rules and Regulations 28  28  Laser Classification 28  Degree of Protection 28  Warranty 29  Dimensions and Illustrations 30  Bottom View: Mounting Plate 30  support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 5/36 ...
  • Page 6 01/2020  Bottom View: Detail A 31  Front View: Projection Unit and Camera Unit 32  Changelog 33  Contact Information 34        support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 6/36 ...

  • Page 7: Product Overview

    Product Overview  Photoneo PhoXi 3D Scanner is a device that uses a structured light projection to reconstruct the geometry of a 3D surface  of an inspected object. One or more structured patterns are projected onto a scene during scan, which allows calculation of ...
  • Page 8 Laser radiation warning with laser class label. The serial number of the device can be found  above the warning labels.    Label specifying wavelength, average power, pulse energy and pulse length of the laser. User on  scanner models M, L, XL.    support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 8/36 ...

  • Page 9: Objects Suitable For Scanning

    Objects Suitable for Scanning  The PhoXi 3D Scanner uses structured light patterns to acquire 3D data. The scene must be completely still during the scan,  free from smoke and particles dispersed in the air. Always bear in mind that the Scanner can only see what you can see ...

  • Page 10: Scope Of Delivery

    Figure 2: Power cable from scanner to power adapter, power adapter, power cable and ethernet adapter    Figure 3: L-Shaped mounting plate    NOTICE  Software components are needed for the operation of the Scanner. See section ​ C onfiguration​ for more information.      support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 10/36 ...

  • Page 11: Installation

    Use network cables capable of 1 Gbps or 10 Gbps ethernet (Category Cat5e or better). ​   A CAD model of the Scanner is available at the Photoneo Wiki: ​ w iki.photoneo.com/index.php/PhoXi_3D_scanners_family#CAD_data​ . support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions...

  • Page 12: Status Leds

    The I/O ports are reserved for future use.  Download and install the PhoXi Control application from the Photoneo webpage.  Run the PhoXi Control application and try to make your first scan. Please refer to the ​ P hoXi Control User Guide​...

  • Page 13: Supported Network Topologies

    Scanner connected to a switch  ■   Figure 9: Connected to a switch  The following network topology is not supported by the PhoXi 3D Scanner:  Scanner connected to a router:  ■ support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions...

  • Page 14: Mounting Restrictions

    PhoXi 3D Scanners are designed to be cooled through natural convection cooling. In order to ensure adequate cooling, a  clearance of at least 25 mm above and below the device must be allowed. When planning placement of the PhoXi 3D ...

  • Page 15: Configuration

    API trigger the same response in the GUI as user inputs. After triggering the scan by calling API method, the application will  execute the scan, send it as an output of the call and display it simultaneously in the GUI.  The API serves as a central platform for building custom applications for PhoXi 3D Scanners. In order to facilitate the   ...

  • Page 16: Hardware Parameters

    5  White orange  MD0_P  6  orange  MD0_N  7  White brown  MD3_P  8  (-) Black  GND  9  Green  MD1_N  10  Brown  MD3_N  Power over ethernet (PoE) is not supported.    support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 16/36 ...

  • Page 17: Power Connector

    5 %  e​ Rated operating current I​ (I​ )  2 A (3 A)   e​ max​   Recommended 5 A power supply   Overcurrent protection  Yes  Short circuit protection  Yes (< 1 s, PTC)  support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 17/36 ...

  • Page 18: Cables

    M, L, XL  Light source  Visible red light (laser)  Visible red light (laser)  Wavelength  639 nm  637 nm  Average power  0.314 mW  4.32 mW  Pulse energy  382 nJ  93.7 μJ  Pulse length    0.96 ms  1.32 ms  support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 18/36 ...

  • Page 19: Environmental Conditions

    From 0 % to 95 % non-condensing  Atmospheric pressure  From 1080 hPa to 660 hPa (corresponding to an  altitude of -1000 m tp 3500 m)  Maximum acceleration  20 ms​ -2  EN 60068-2-32, Free fall  Consult ​ s upport@photoneo.com      support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 19/36 ...

  • Page 20: Scanning Parameters

    Alternatively, the square of the point size is the average surface sampled by a single 3D point on the plane scanned  in the focus distance of the camera.   Figure 14: Relationship between scanning distance and point size.   support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 20/36 ...

  • Page 21: Calibration Accuracy

    Data acquisition time from shortest possible to maximum estimated in a worst case scenario.  Note​ :   Values in datasheets are valid in the temperature range 22 °C - 25 °C.      support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 21/36 ...
  • Page 22 0.03  Scanning time  250 - 2000 ms  Dimensions  77 x 68 x 296 mm  Baseline  85 mm  Weight  900 g  Projection angle  73°       Figure 15: PhoXi 3D Scanner XS scanning range  support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 22/36 ...
  • Page 23 Scanning time  250 - 2250 ms  Dimensions  77 x 68 x 296 mm  Baseline  230 mm  Weight  900 g  Projection angle  74.55°       Figure 16: PhoXi 3D Scanner S scanning range    support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 23/36 ...
  • Page 24 Scanning time  250 - 2500 ms  Dimensions  77 x 68 x 416 mm  Baseline  350 mm  Weight  950 g  Projection angle  78.25°       Figure 17: PhoXi 3D Scanner M scanning range    support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 24/36 ...
  • Page 25 Scanning time  250 - 2750 ms  Dimensions  77 x 68 x 616 mm  Baseline  550 mm  Weight  1100 g  Projection angle  80.55°       Figure 18: PhoXi 3D Scanner L scanning range    support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 25/36 ...
  • Page 26 Scanning time  250 - 3000 ms  Dimensions  77 x 68 x 941 mm  Baseline  850 mm  Weight  1200 g  Projection angle  82.5°       Figure 18: PhoXi 3D ScannerX L scanning range      support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 26/36 ...

  • Page 27: Cleaning Instructions

    01/2020  Cleaning Instructions  PhoXi 3D Scanners are generally low maintenance. To preserve their performance and quality of the scans, please check  and maintain their outer optical parts regularly.  The glasses covering the camera unit and the projection should not be touched by bare hands to avoid staining of the glass. ...

  • Page 28: Compliance With Standards

    01/2020  Compliance with Standards  The PhoXi 3D Scanner conforms with the following standards and test specifications. The test criteria under which were  the PhoXi 3D Scanner certified are stated in the standards. Please note that certification status may change without ...

  • Page 29: Fcc Rules And Regulations

    PhoXi 3D Scanners are primarily manufactured as laser class 3R devices. Models M, L and XL can be manufactured as laser  class 2 devices. The laser class was tested by an independent certification body Lasermet Limited which has issued ...

  • Page 30: Degree Of Protection

    01/2020  Degree of Protection  According to standard EN 60529 PhoXi 3D Scanners have the following mechanical protection:  IP40​ Mechanical Protection   Protected against solid foreign objects of 1 mm diameter and greater as tested by a standard probe. External  protection is required for dust, dirt, water and foreign objects of < 1 mm in diameter. ...

  • Page 31: Dimensions And Illustrations

    01/2020  Dimensions and Illustrations  Bottom View: Mounting Plate    Figure 20: Bottom view of PhoXi 3D Scanner  support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 31/36 ...
  • Page 32 01/2020  Bottom View: Detail A    Figure 21: PhoXi 3D Scanner - Detail A  support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 32/36 ...
  • Page 33 01/2020  Front View: Projection Unit and Camera Unit    Figure 22: Projection unit and camera of PhoXi 3D Scanner    support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 33/36 ...
  • Page 34 Updated list of standards complied with under CE  ■ Added information about laser certification  ■ Moved degree of protection to this section  ■ 29  Added section ​ W arranty        support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 34/36 ...
  • Page 35 EU VAT ID:  SK2023884907  Office contact: info@photoneo.com​ , +421 948 766 598  Sales contact: sales@photoneo.com​ , +421 948 766 479  Technical support: support@photoneo.com​ , +421 948 666 730      support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 35/36 ...
  • Page 36 01/2020    Photoneo s.r.o.  Plynárenská 1  82109, Bratislava  Slovakia  support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 36/36 ...
