Connecting to the Scanner
Power over ethernet:
Recommended powering option
■
1 Gbps ethernet cable to the PoE
■
injector IN port
M12-X ethernet cable to the PoE
■
injector OUT port

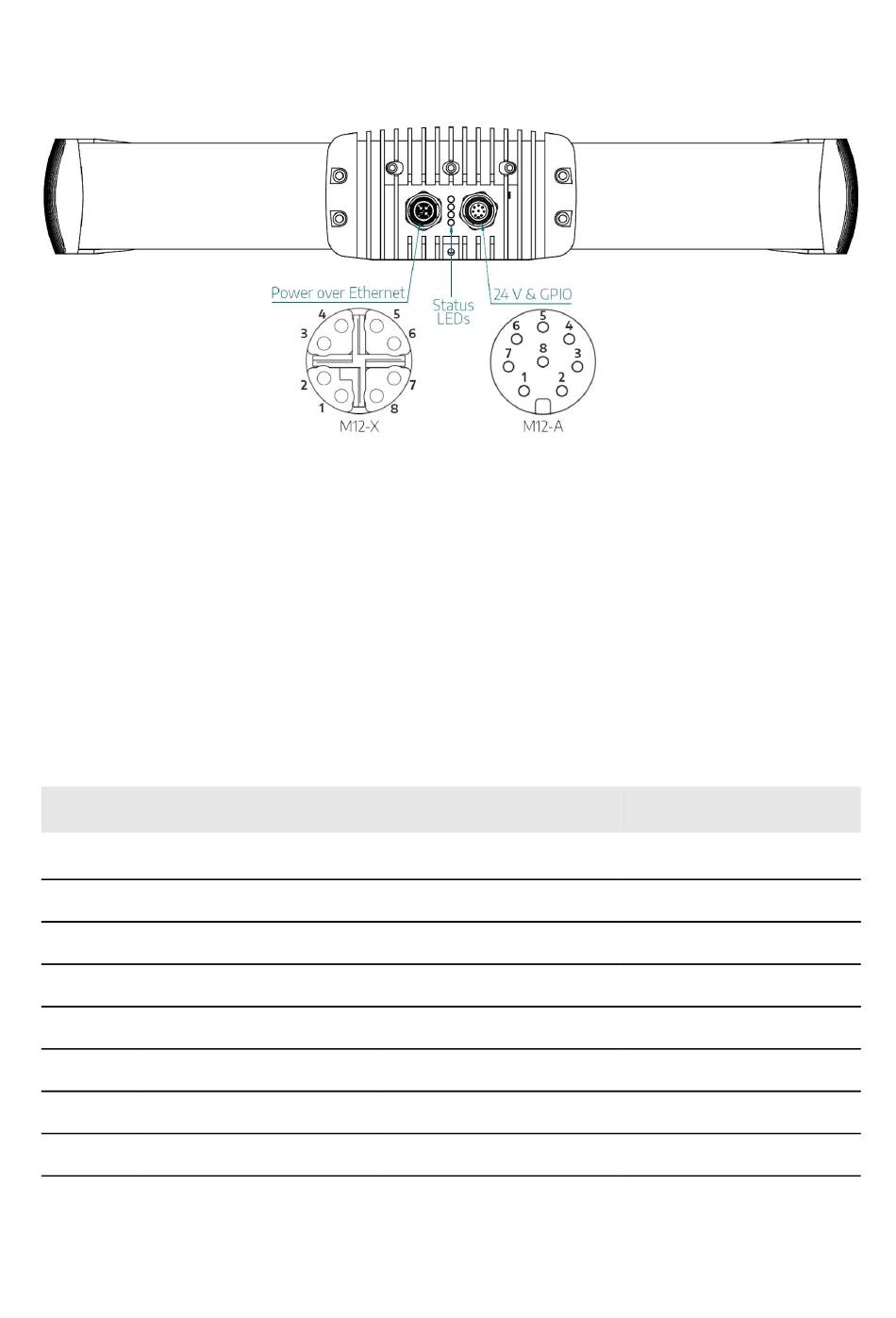

M12 A Coded - 24 V & GPIO Pinout
Pin Cable Color
1 White
2 Brown
3 Green
4 Yellow
5 Grey
6 Pink
7 Blue
8 Red
* laser interlock requires special firmware package
08/2020
24 V & GPIO:
Desktop & DIN rail adapters
■
supported
Pinout
DC_IN
OPTO_IN2_GND
GND
OPTO_IN1
OPTO_IN1_GND
OPTO_OUT
OPTO_OUT_GND
OPTO_IN2
PhoXi 3D Scanner M - Quick Start Guide
Function
+ 24 V
*laser interlock ground
-
-
-
-
ground
*laser interlock signal
