Summary of Contents for Photoneo PhoXi XS

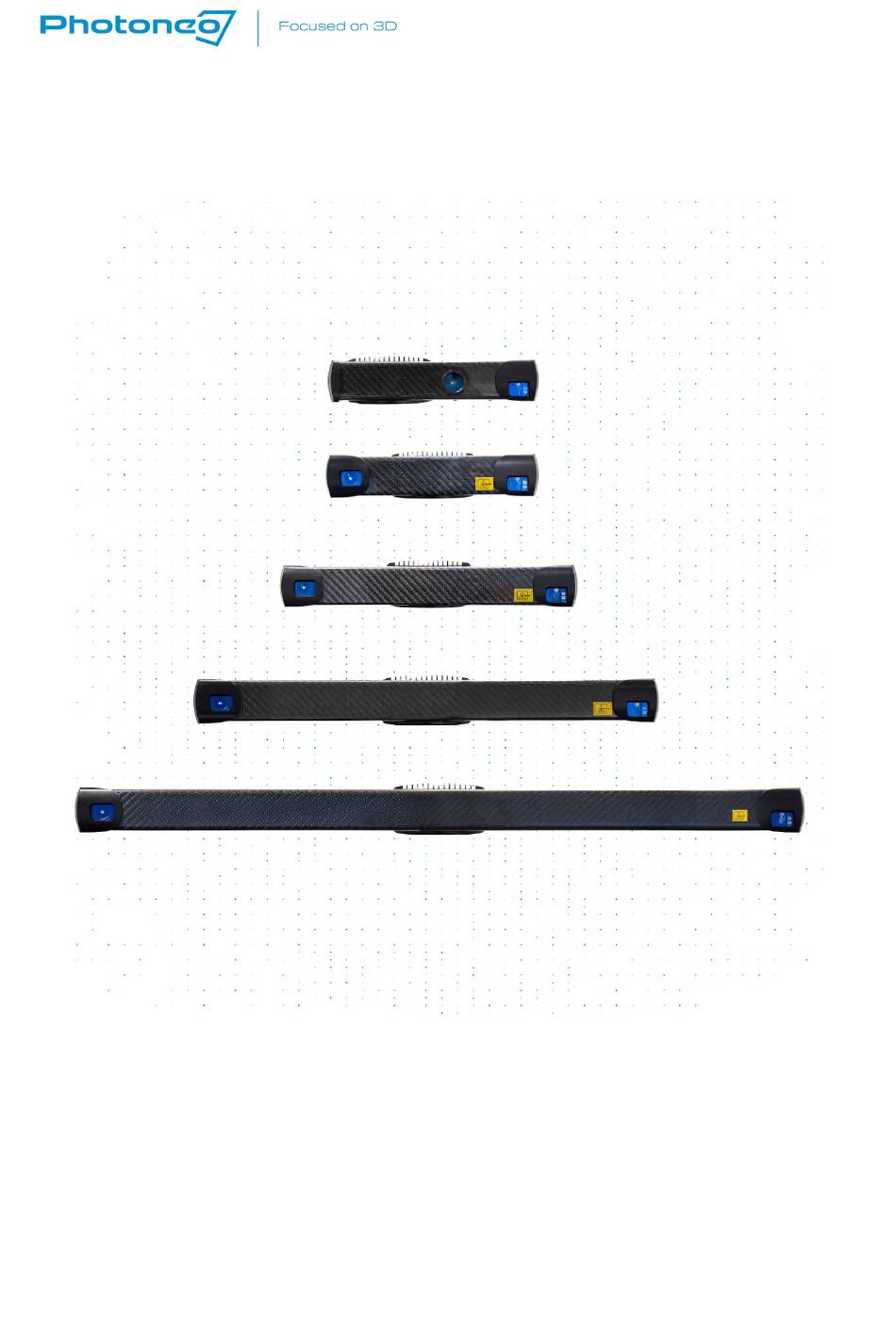

- Page 1 PhoXi 3D Scanner User Manual and Installation Instructions ...
- Page 2 08/2020 Thank you for choosing Photoneo® PhoXi® 3D Scanner. Please take a few minutes to read this manual and become familiar with the device. For more information on our products, accessories, replacement parts, software and services, see our website www.photoneo.com/phoxi-3d-scanner/...
- Page 3 Please note the following: ⚠ WARNING Photoneo products may only be used in accordance with relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Photoneo. Proper transport, storage, installation, assembly, commissioning, operation, and maintenance are required to ...
- Page 4 Photoneo® PhoXi® 3D Scanner ■ Trademarks All names identified by ® are registered trademarks of Photoneo s.r.o. The remaining trademarks in this publication may be trademarks that when used by third parties for their own purposes could violate the rights of the owner. ...
-
Page 5: Table Of Contents
Depth Map Resolution 23 Point to Point Distance 23 Calibration Accuracy 24 Temporal Noise 24 Data Acquisition Time 24 Cleaning Instructions 30 Compliance with Standards 31 Declaration of Conformity 31 support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 5/40 ... - Page 6 Dimensions and Illustrations 34 Bottom View: Mounting Plate 34 Bottom View: Detail A 35 Front View: Projection Unit and Camera Unit 36 Changelog 37 Contact Information 38 support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 6/40 ...
-
Page 7: Product Overview
08/2020 Product Overview Photoneo PhoXi 3D Scanner is a device that uses a structured light projection to reconstruct the geometry of a 3D surface of an inspected object. One or more structured patterns are projected onto a scene during scan, ... -
Page 8: Laser Device
The device uses the following labels and warning systems. Apart from the laser aperture label, all are located on the back panel of the device. Laser radiation hazard warning symbol. support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 8/40 ... -
Page 9: Objects Suitable For Scanning
Objects most suitable for scanning are (including and not limited to): rough surface objects, for example, wood, rubber, etc. ■ objects with a matte finish, such as sand-blasted aluminum, cast iron, etc. ■ molded, un-polished plastic materials. ■ support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 9/40 ... - Page 10 ■ most liquids (e.g. water, oil), ■ moving objects, ■ translucent and transparent objects (e.g. glass, transparent plastic), ■ some hairy objects (e.g. carpets). ■ support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 10/40 ...
-
Page 11: Scope Of Delivery
Ethernet cable M12-X male - RJ45 male, 5 m, PUR ■ NOTICE Software components are needed for operation of the Scanner. See section C onfiguration for more information. support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 11/40 ... -
Page 12: Installation
Powering the device & Data connection for more details. 4. Download and install the PhoXi Control application from the Photoneo webpage. Run the PhoXi Control application and try to make your first scan. Please refer to the P hoXi Control User ... -
Page 13: Powering Through Poe Connector
Connect the M12-X RJ45 cable to the scanner and to your computer or switch Connect the M12-A to the scanner and to the adapter and plug in the 24 V power adapter support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions... -
Page 14: Status Leds
No activity on link Off Link is down 4 ETH2 Green Gigabit ethernet connected Off No gigabit ethernet Figure 7: Status LEDs of correctly working device support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 14/40 ... -
Page 15: Supported Network Topologies
Figure 10: Connecting the Scanner through router is not supported Note: Connecting to the Scanner via WiFi is not recommended as it is slower and less reliable. ■ support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 15/40 ... -
Page 16: Mounting Restrictions
It is recommended to mount the scanner on a metal plate that will act as a thermal bridge and dissipate the heat produced by the processing unit away from the scanner. support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions... -
Page 17: Configuration
The API serves as a central platform for building custom applications for PhoXi 3D Scanners. In order to facilitate the development process and reduce computing demands all computations are performed on the device itself. Figure 11: PhoXi Control – Network Discovery support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 17/40 ... - Page 18 08/2020 You can download the latest version of PhoXi Control from our website www.photoneo.com/3d-scanning-software/ For more information about the PhoXi Control application, please refer to the P hoXi Control User Guide . support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions...
-
Page 19: Hardware Parameters
Rated operating current I (I ) 0. 360 A (0.6 A) e max Minimum Power 33 W Shielding Fully Shielded RJ45 Transfer data rate 1 Gbit Maximum recommended cable length 20 m support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 19/40 ... -
Page 20: 24 V Power Connector
Minimum Power 60 W Maximum recommended cable length 20 m * * for cable length over 10 m please ensure operating voltage at minimum 28 V support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 20/40 ... -
Page 21: Projection Unit
-1000 m tp 3500 m) ⚠ CAUTION Please ensure that the device is always transported in its original casing or that it is properly cushioned for transport. support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 21/40 ... -
Page 22: Operation
From 0 °C to 45 °C Humidity From 0 % to 95 % non-condensing Atmospheric pressure From 1080 hPa to 660 hPa (corresponding to an altitude of -1000 m tp 3500 m) Maximum acceleration 20 ms -2 support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 22/40 ... -
Page 23: Scanning Parameters
Alternatively, the square of the point size is the average surface sampled by a single 3D point on the plane scanned in the focus distance of the camera. support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions... -
Page 24: Calibration Accuracy
Data acquisition time from shortest possible to maximum estimated in a worst case scenario. Note : Values in datasheets are valid in the temperature range 22 °C - 25 °C. support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 24/40 ... - Page 25 Temporal noise (1 σ) 0.030 mm Scanning time 250 - 2000 ms Dimensions 77 x 68 x 296 mm Baseline 85 mm Weight 900 g Figure 16: PhoXi 3D Scanner XS scanning range support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 25/40 ...
- Page 26 Temporal noise (1 σ) 0.050 mm Scanning time 250 - 2250 ms Dimensions 77 x 68 x 296 mm Baseline 230 mm Weight 900 g Figure 17: PhoXi 3D Scanner S scanning range support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 26/40 ...
- Page 27 Temporal noise (1 σ) 0.100 mm Scanning time 250 - 2500 ms Dimensions 77 x 68 x 416 mm Baseline 350 mm Weight 950 g Figure 18: PhoXi 3D Scanner M scanning range support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 27/40 ...
- Page 28 Temporal noise (1 σ) 0.190 mm Scanning time 250 - 2750 ms Dimensions 77 x 68 x 616 mm Baseline 550 mm Weight 1100 g Figure 19: PhoXi 3D Scanner L scanning range support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 28/40 ...
- Page 29 Temporal noise (1 σ) 0.400 mm Scanning time 250 - 3000 ms Dimensions 77 x 68 x 941 mm Baseline 850 mm Weight 1200 g Figure 20: PhoXi 3D ScannerX L scanning range support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 29/40 ...
-
Page 30: Cleaning Instructions
Remove the film from the glass using peel tabs with wooden or plastic tips. The film removes any dirt or particles from the glass. w ww.photoniccleaning.com/product-p/rfcr.htm support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 30/40 ... -
Page 31: Compliance With Standards
PhoXi 3D Scanners conforms with the following standards and test specifications. The test criteria under which were PhoXi 3D Scanners certified are stated in the standards. Please note that the certification status may change without notification. Consult your local Photoneo representative if you need additional information related to the latest listing of exact approvals. ... -
Page 32: Fcc Rules And Regulations
Authorized Representative / CEO: Mgr. Ján Žižka, PhD. To see the full signed copy of Declaration of Conformity, please visit the following link: www.photoneo.com/dl/DoC FCC Rules and Regulations PhoXi 3D Scanners complies with the applicable requirements of FCC Part 2:2016 and FCC Part ... -
Page 33: Laser Classification
Details about the laser device used can be found in the section P rojection Unit . If necessary, please contact Photoneo for a written Declaration of Class 3R Laser Product for specific devices. Degree of Protection According to standard EN 60529 PhoXi 3D Scanners have the following mechanical protection: ... - Page 34 08/2020 support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 34/40 ...
-
Page 35: Dimensions And Illustrations
08/2020 Dimensions and Illustrations Bottom View: Mounting Plate Figure 22: Bottom view of PhoXi 3D Scanner support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 35/40 ... - Page 36 08/2020 Bottom View: Detail A Figure 23: PhoXi 3D Scanner - Detail A support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 36/40 ...
-
Page 37: Front View: Projection Unit And Camera Unit
08/2020 Front View: Projection Unit and Camera Unit Figure 24: Projection unit and camera of PhoXi 3D Scanner support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 37/40 ... -
Page 38: Changelog
31 - 33 Section C ompliance with Standards : Revised based on recertification ■ 34 -36 Updated illustrations in section D imensions and Illustrations support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 38/40 ... -
Page 39: Contact Information
08/2020 Contact Information Business name: Photoneo s. r. o. Registered seat: Jamnického 3, 841 05 Bratislava, Slovak Republic Headquarters: Plynárenská 1, 821 09 Bratislava, Slovak Republic Identification number: 47 353 309 Tax ID: 2023884907 EU VAT ID: SK2023884907 Sales contact: sales@photoneo.com... - Page 40 08/2020 Photoneo s.r.o. Plynárenská 1 82109, Bratislava Slovakia support@photoneo.com PhoXi 3D Scanner - User Manual and Installation Instructions 40/40 ...
