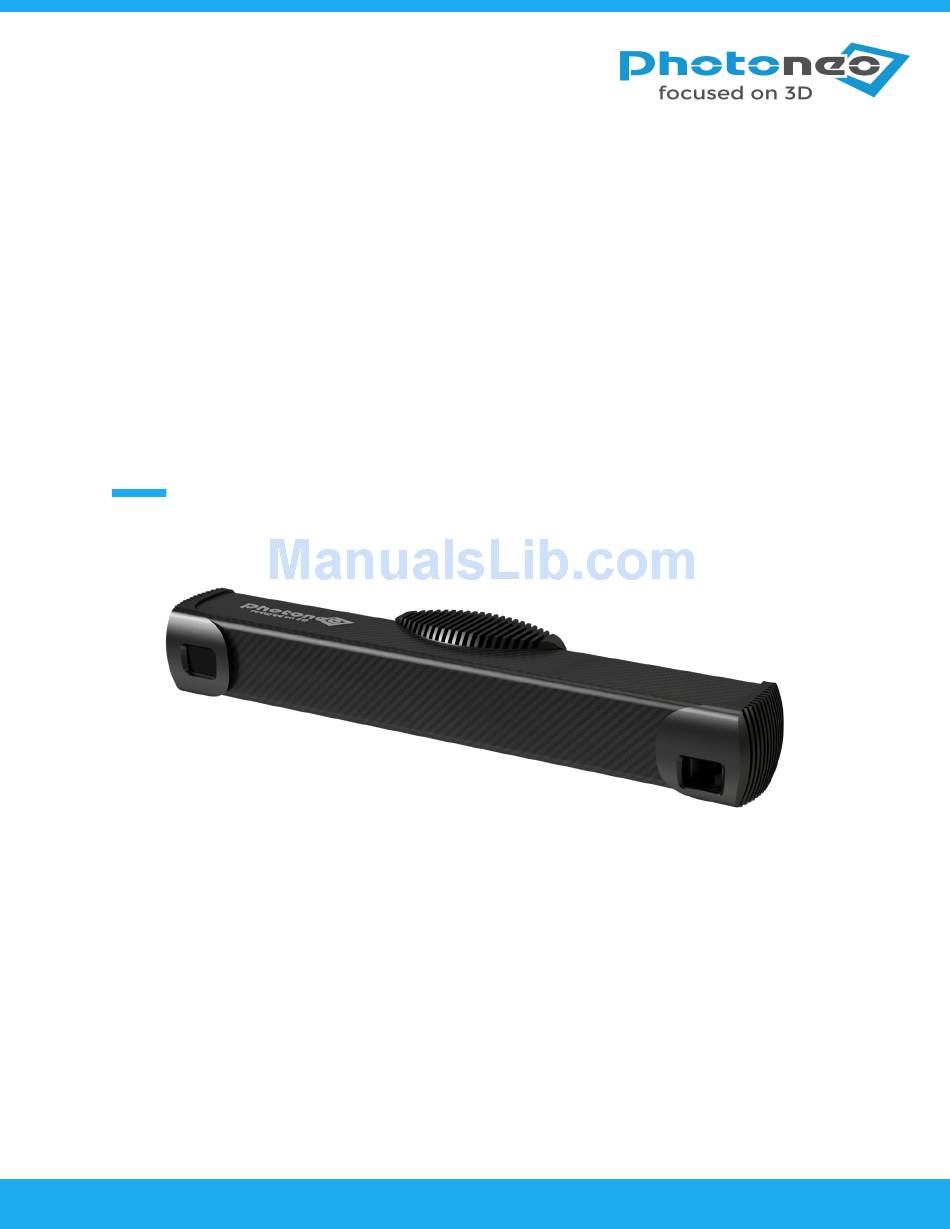

PhoXi® 3D Scanner
User manual and

Installation instructions

01/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PhoXi and is the answer not in the manual?

Questions and answers

Related Manuals for Photoneo PhoXi

Summary of Contents for Photoneo PhoXi

  • Page 1: Installation Instructions

    PhoXi® 3D Scanner User manual and Installation instructions 01/2018...

  • Page 2: Legal Information

    You have chosen a Photoneo® PhoXi® 3D Scanner. Please take a few minutes to read this manual and become familiar with the advantages of Photoneo® PhoXi® 3D Scanner. For more information on our products, accessories, replacement parts, software and services, see our website photoneo.com/product-showcase/phoxi_3d_scanners/...

  • Page 3: Qualified Personnel

    Proper use of Photoneo products Note the following:  WARNING Photoneo products may only be used for the applications described in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Photoneo. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 4: Preface

    Preface Purpose of the manual This manual provides information about installing and setup the PhoXi® 3D Scanner and is designed for engineers, installers, and electricians who have a general knowledge of automation. Required basic knowledge To understand this manual, it is necessary to have a general knowledge of automation.

  • Page 5: Table Of Contents

    Hardware components........................9 Software components........................9 3) Installation of PhoXi® 3D Scanner.......................10 Guidelines for installing........................10 Separate the PhoXi® 3D Scanners from heat, high voltage, and electrical noise......11 Provide adequate clearance for cooling and wiring...............12 4) Configuration..............................13 PhoXi® Control..........................13 PhoXi® 3D Scanner - User manual and Installation instructions – 01/2018, rev.3...
  • Page 6 Parameters.............................16 Degree of protection........................19 Industrial environments.........................19 6) Dimensions and drawings..........................20 Bottom view: Mounting plate......................20 Bottom view: Detail A........................21 Front view: Projection unit and camera..................22 7) Organisation..............................23 Technical support..........................23 PhoXi® 3D Scanner - User manual and Installation instructions – 01/2018, rev.3...

  • Page 7: Product Overview

    At the beginning Photoneo® PhoXi® 3D Scanner project special patterns onto scene. Duration of each pattern can be set in PhoXi® Control, total projection time is then number of patterns (most usually 17) × single pattern exposure (in miliseconds) × 2.

  • Page 8: Laser Radiation

    1: PhoXi® 3D Scanner’s laser projector location Laser radiation according to IEC / EN 60825-1 (2014): refer to Parameters, page 16. PhoXi® 3D Scanner - User manual and Installation instructions – 01/2018, rev.3...

  • Page 9: Scope Of Delivery

    ◦ Ethernet cable adaptor (with RJ45 socket) ◦ Power cable ◦ This manual Software components  PhoXi® Control (configuration tool downloadable from: photoneo.com/product- detail/phoxi-control-application/) 1- May vary with firmware version PhoXi® 3D Scanner - User manual and Installation instructions – 01/2018, rev.3...

  • Page 10: Installation Of Phoxi® 3D Scanner

    3) Installation of PhoXi® 3D Scanner Guidelines for installing PhoXi® 3D Scanner is designed to be easy to install. You can install a scanner either on a 4xM4 22x45mm raster,M8 or 3/8-16 UNC screw, and you can orient the scanner in every way 1.

  • Page 11: Separate The Phoxi® 3D Scanners From Heat, High Voltage, And Electrical Noise

    4. Download PhoXi® Control application from the Photoneo webpage: http://www.photoneo.com/product-detail/phoxi-control-application/ and install 5. Run the PhoXi® Control application and try to make your first scan. Please refer to Configuration, page 13. Separate the PhoXi® 3D Scanners from heat, high voltage, and...

  • Page 12: Provide Adequate Clearance For Cooling And Wiring

    DC wiring. Provide adequate clearance for cooling and wiring PhoXi® 3D Scanners are designed for natural convection cooling. For proper cooling, you must provide a clearance of at least 25 mm above and below the devices.

  • Page 13: Configuration

    4) Configuration PhoXi® Control PhoXi® Control application provide interface for PhoXi® 3D Scanner. An user may examine all scanners available on network as shown on image 4: PhoXi® Control – network discovery. image 4: PhoXi® Control – network discovery After succesfull connection (image 5: PhoXi® Control – main window) the user can tweak scanner parameters to achieve optimal point-cloud readout.
  • Page 14 5: PhoXi® Control – main window PhoXi® 3D Scanner - User manual and Installation instructions – 01/2018, rev.3...

  • Page 15: Technical Specifications

    FCC Rules and Regulations PhoXi® 3D Scanner complies with the applicable requirements of Parts 2 and 15 of the FCC Rules and Regulations and Industry Canada ICES-003. CE Approval The PhoXi®...

  • Page 16: Dimensions

    Laser radiation Light source Visible red light (laser) Wavelength 638nm Laser class 3R (IEC / EN 60825-1, 2014) Peak / CW Power 314µW Pulse energy 382nJ Pulse length 960µs PhoXi® 3D Scanner - User manual and Installation instructions – 01/2018, rev.3...
  • Page 17 0-95% noncondensing Atmospheric pressure 1080 to 795 Pa (corresponding to an altitude of -1000 to 2000m) EN 60068-2-27 Mechanical Consult support@photoneo.com shock 4 - May vary with firmware version PhoXi® 3D Scanner - User manual and Installation instructions – 01/2018, rev.3...
  • Page 18 6: Z-noise and point size vs. scanning distance PhoXi® 3D Scanner - User manual and Installation instructions – 01/2018, rev.3...

  • Page 19: Degree Of Protection

    < 1mm in diameter. Industrial environments The PhoXi® 3D Scanner is designed for use in industrial environments. Application field Noise emission requirements Noise immunity requirements Light industrial EN 61000-6-3:2007 EN 61000-6-1:2007 PhoXi® 3D Scanner - User manual and Installation instructions – 01/2018, rev.3...

  • Page 20: Dimensions And Drawings

    Dimensions and drawings Bottom view: Mounting plate PhoXi® 3D Scanner - User manual and Installation instructions – 01/2018, rev.3...

  • Page 21: Bottom View: Detail A

    Bottom view: Detail A PhoXi® 3D Scanner - User manual and Installation instructions – 01/2018, rev.3...

  • Page 22: Front View: Projection Unit And Camera

    Front view: Projection unit and camera PhoXi® 3D Scanner - User manual and Installation instructions – 01/2018, rev.3...

  • Page 23: Organisation

    47 353 309 Tax ID: 2023884907 EU VAT ID: SK2023884907 Contact: info@photoneo.com, +421 948 766 466 Technical support  Consult Photoneo Wiki at wiki.photoneo.com  Contact us at support@photoneo.com PhoXi® 3D Scanner - User manual and Installation instructions – 01/2018, rev.3...
