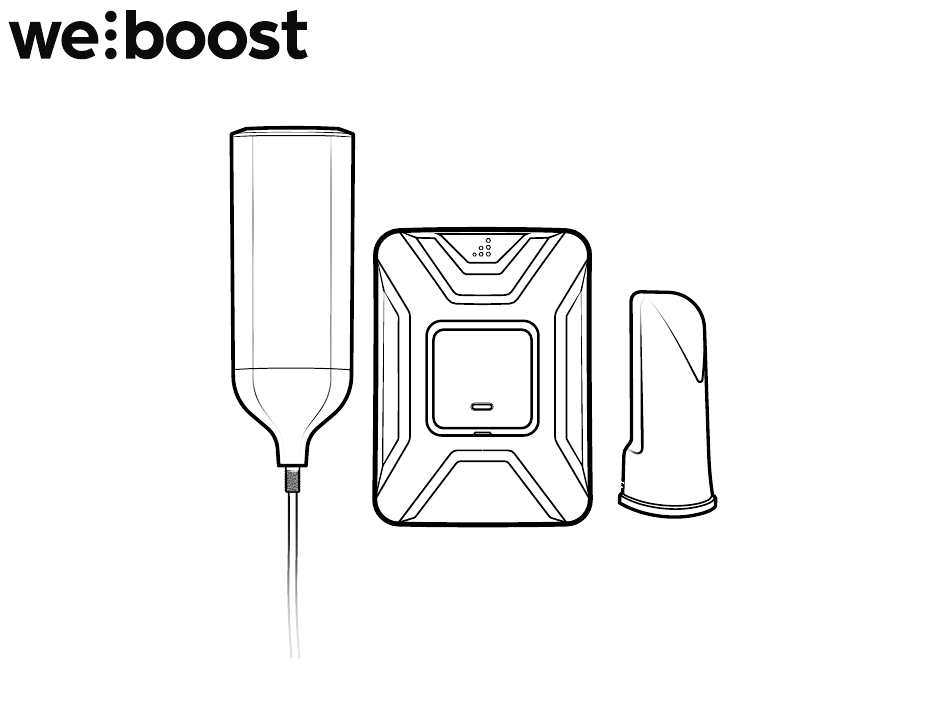

- Page 1 Installation Guide Drive X RV Vehicle Cell Signal Booster Kit Use our weBoost App to guide you through the installation. See inside page for more details.
- Page 2 Download the weBoost App Download the weBoost App Use our app to guide you through setting up a weBoost cell phone signal booster in your home, business, or vehicle. Boost every network, including 5G, right away. Videos to guide you...
-
Page 3: Table Of Contents
Index Package Contents ............1 Installation Overview . -
Page 4: Package Contents

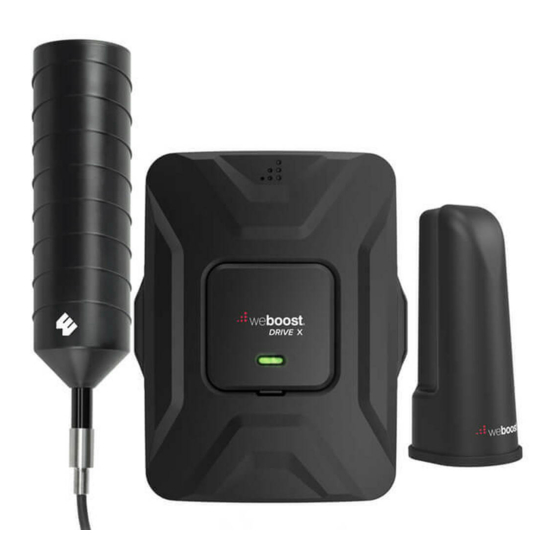

Package Contents Drive X Booster Inside Outside Antenna Mast Extension, Outside & Bracket Antenna & 25 ft. RG-6 Side-Exit Adapter, Antenna Cable Spring & Thread Ladder Lock Packs Mount AC/DC Wall DC/DC Hardwire Installation Power Supply Power Supply Accessories... -
Page 5: Installation Overview
Installation Overview Outside Antenna Booster Inside Antenna to power... -
Page 6: Step 1 Select Mounting Location & Assemble The Outside Antenna
STEP 1 Select Mounting Location common Outside & Assemble the Outside Antenna Antenna location Determine where you want the outside antenna on your RV. Mount outside antenna to a ladder or pole so that the entire outside antenna is above the roof line of the RV and clear of other metal obstructions. - Page 7 (STEP 1 cont.) After determining outside antenna mounting location and assembly is the correct height, insert coax cable through mast extension (mast can be used optionally), then through side-exit adapter. 13 in. mast cable from Outside Antenna Side Exit run cable Adapter through Mast Extension...
- Page 8 (STEP 1 cont.) Outside Antenna Apply the thread locker precisely to thread add Thread Locker points only (not plastic body of antenna). Screw mast onto antenna. mast Connect 25 foot cable to outside antenna cable. Heat shrink tube can be applied to mast the connection (optional).
- Page 9 (STEP 1 cont.) Mount outside antenna. L-bracket mount Side Exit Adapter and hardware is provided to mount to ladder or pole. If installing with spring, the add thread side exit adapter must be used. locker NOTE: Outside antenna location must be Spring within reach of the booster with the 25’...
- Page 10 (STEP 1 cont.) Option A Route cable into the RV. entry Option A: Using existing cable entry point. Option B: Through the slider on your RV (using the slider gasket as a seal). Option B Option C: Drill a hole with the included hole saw bit.
-
Page 11: Step 2 Select Inside Antenna Location
STEP 2 Select Inside Antenna Location Place inside antenna where strong signal is desired. -
Page 12: Step 3 Select Booster Location
STEP 3 Select Booster Location Find a location to place the booster, then mount by removing the bracket from back side of booster and fasten to desired surface. Snap booster back into bracket. NOTE: We recommend mounting in a cabinet near a power source. -
Page 13: Step 4 Connect Coax Cables To Booster
STEP 4 Connect Coax Cables to Booster Connect the coax cable from the inside antenna to the port labeled “Inside Antenna” on the booster. Then connect the cable from the outside antenna to the port labeled “Outside Antenna” on the booster. from Inside Antenna Note: All connections should be finger... -
Page 14: Step 5 Connect Power Supply To Booster
STEP 5 Connect Power Supply connect Power to Booster Supply Cord Connect power cable to booster, then into 110V wall plug and enjoy! NOTE: A fused 12V hardwire power supply is also included. -
Page 15: Using The Optional Cable Entry Accessories
Using The Optional Cable Entry Accessories gasket Skip if you used Option A or B in STEP 1. Pull Cable Entry the RG-6 cable through the rubber gasket, Cover then place the cable entry cover into the entry hole (as shown below) and fasten cover to side of RV. -
Page 16: Measuring Booster Performance
Measuring Booster Performance We've created an easy way to learn your signal strength and compare it before and after a booster. Download our free weBoost app to get accurate decibel measurements to help you get the best performance from your system. - Page 17 (Measuring Booster Performance cont.) Signal Strength (dBm) with weBoost system powered OFF: (dBm here) Signal Strength (dBm) with weBoost system powered ON: (dBm here) Compare Results Compare the decibels (dBm) on the chart below to find what signal strength you fall into.
-
Page 18: Booster Light Patterns
Booster Light Patterns SOLID GREEN This indicates that your booster is functioning properly and there are no issues with installation. SOLID RED Band has shutoff. This is due to a feedback loop condition called oscillation. This is a built in safety feature that causes a band to shut off to prevent harmful interference with a nearby cell tower. - Page 19 (Booster Light Patterns cont.) NOTE: The signal booster can be reset by disconnecting and reconnecting the power supply. After troubleshooting, you must initiate a new power cycle by disconnecting and then reconnecting power to the booster.
-
Page 20: Troubleshooting
Note: Horizontal separation of the two antennas typically requires a shorter separation distance than vertical separation. If you are having any difficulties while testing or installing your booster, contact our weBoost Customer Support team for assistance (1-866-294-1660). - Page 21 How can I contact customer support? Customer Support can be reached Monday through Friday by calling 1-866-294-1660, or through our support site at support.weboost.com. Why do I need to create distance between the outside antenna and inside antenna? Antennas connected to a booster create spheres of signal. When these spheres overlap, a condition called oscillation occurs.
-
Page 22: Safety Guidelines
Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. The signal booster unit is designed for use in an indoor, temperature-controlled environment (less than 150 degrees Fahrenheit). It is not intended for use in attics or similar locations subject to temperatures in excess of that range. - Page 23 (Safety Guidelines cont.) FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR WIRELESS PROVIDER IN THE U.S., PLEASE GO TO THE LINK BELOW: https://www.weboost.com/carrier-registration...
- Page 24 Antenna Info The following accessories are certified by the FCC to be used with the Drive X Booster. This radio transmitter 4726A-460021 has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.
-
Page 25: Specifications
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. -
Page 26: Warranty
DISCLAIMER: The information provided by weBoost is believed to be complete and accurate. However, no responsibility is assumed by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use. - Page 27 Notes 1-866-294-1660 www.weboost.com support@weboost.com...
- Page 28 3301 East Deseret Drive, St. George, UT 1-866-294-1660 www.weboost.com support@weboost.com Copyright © 2019 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000590_Rev01_03.26.24...
