Firewall - Zcom SP230 Series User Manual

SP230/SP230-S5

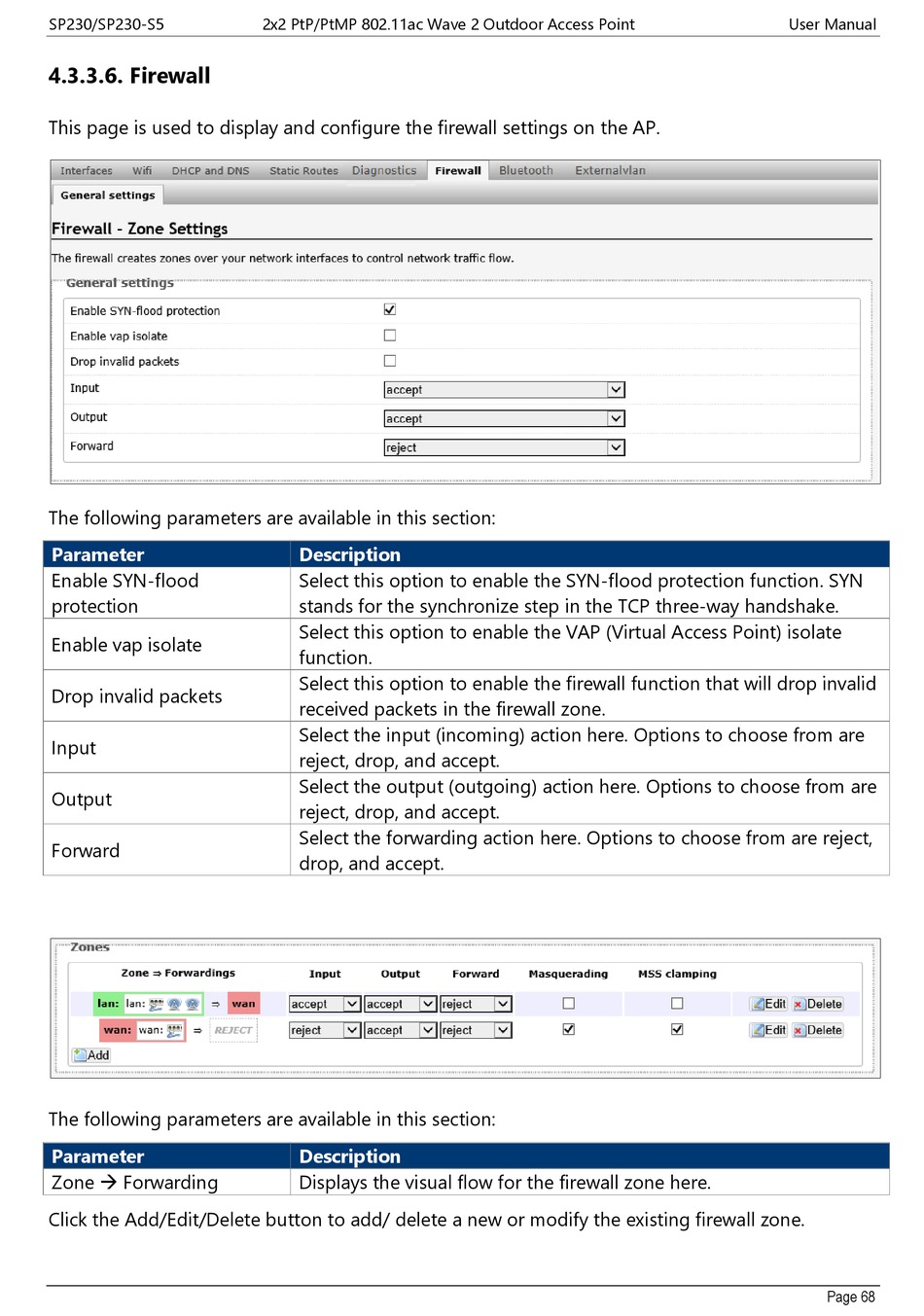

4.3.3.6. Firewall

This page is used to display and configure the firewall settings on the AP.
The following parameters are available in this section:
Parameter
Enable SYN-flood
protection
Enable vap isolate
Drop invalid packets
Input
Output
Forward
The following parameters are available in this section:
Parameter
Zone  Forwarding
Click the Add/Edit/Delete button to add/ delete a new or modify the existing firewall zone.
2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point
Description
Select this option to enable the SYN-flood protection function. SYN
stands for the synchronize step in the TCP three-way handshake.
Select this option to enable the VAP (Virtual Access Point) isolate
function.
Select this option to enable the firewall function that will drop invalid
received packets in the firewall zone.
Select the input (incoming) action here. Options to choose from are
reject, drop, and accept.
Select the output (outgoing) action here. Options to choose from are
reject, drop, and accept.
Select the forwarding action here. Options to choose from are reject,
drop, and accept.
Description
Displays the visual flow for the firewall zone here.
User Manual
Page 68
