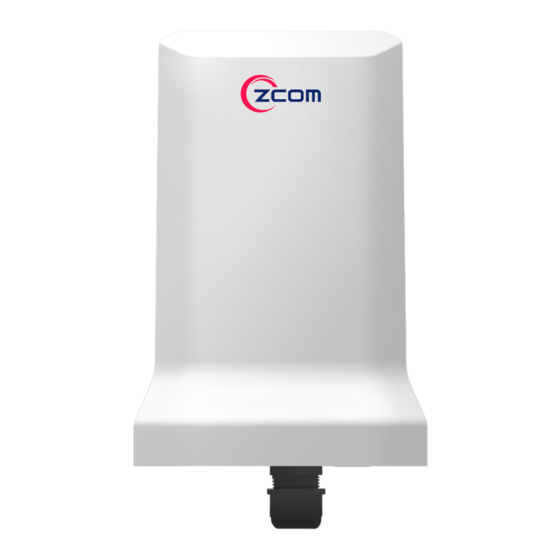

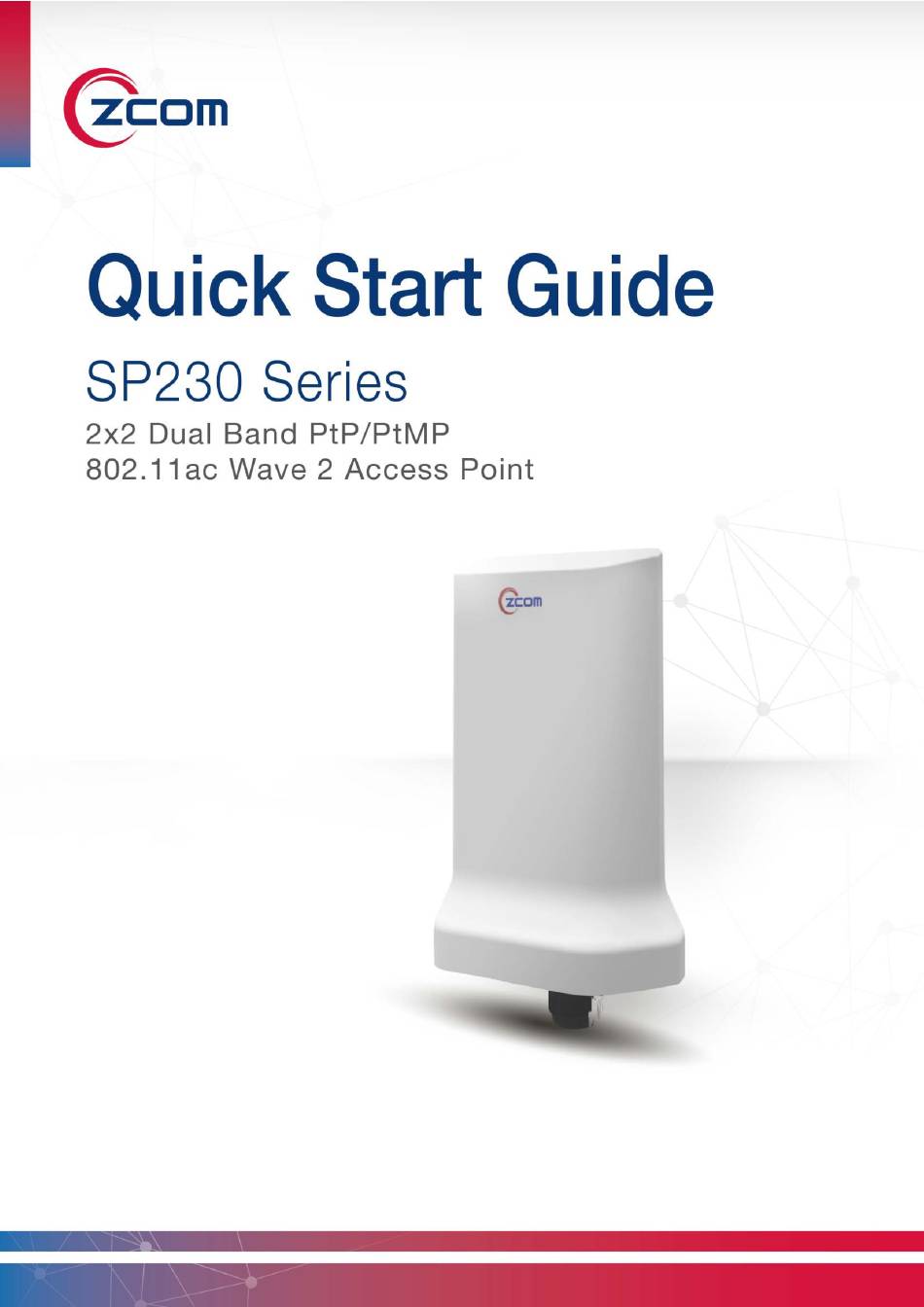

- Page 1 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Access Point Revision: 3.3.0.4 Page i...
-
Page 2: Package Contents
SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Access Point Package Contents One access point One clamp Two waterproof cable glands One ground wire One mounting bracket + Four screws Note: SP230 and SP230-S5 both provides two waterproof cable glands. Installation Requirements TERMS OF USE: All Ethernet cabling runs must use CAT5e, 24 AWG (or above) Shielded Twisted Pair (STP) cabling. - Page 3 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Access Point Two-dimensional Mounting Kit (Optional accessory_SP-MKM5) Pole-Mount Attach the intermediate steel plate to the Attach the two-dimensional mounting device using four M5 screws (included in the bracket to the intermediate steel plate using packaging).
- Page 4 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Access Point screws (included in the packaging). (included in the packaging). Securely tighten the Securely tighten the screws. screws. Attach half-mounting bracket to the M-type bracket, then screw four hex head machine bolts. Securely tighten the screws.
-
Page 5: Safety Notice
SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Access Point Grounding Connection & Protect from Lightning 1. Make your device GND port connect to ground wire. 2. The ground wire connects to the earth. In addition, the grounding wire meets to 6-AWG copper grounding wire. Note: Be sure that grounding is available and that it must comply with local and national electrical codes. -
Page 6: Powering The Access Point
Please refer to WLC QSG for settings first, then go back to finish the AP configuration. https://www.zcom.com.tw/index/downloads?keyword=&meterial_type=49 Step 1. Power on the AP. As the status of LED indicator from flashing change to steady green, the connection is successful. - Page 7 Step 3. Click save & apply to take effect. Note: For FAP mode, please refer to the user manual for more information. https://www.zcom.com.tw/index/downloads?keyword=&meterial_type=25 Bridge Mode Bridge mode allows two or more wireless access points to communicate with each for the purpose of joining multiple LANs.
-
Page 8: Technical Specifications
SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Access Point Note: For bridge mode settings, please refer to the user manual for more information. https://www.zcom.com.tw/index/downloads?keyword=&meterial_type=25 Technical Specifications Physical Dimensions 151 x 75.5 x 235 mm WAN/PoE In Port One 10/100/1000 Mbps port (L x W x H) (5.94 x 2.97 x 9.25 in) - Page 9 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Access Point Compliance FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions.
-
Page 10: Weee Compliance Statement
EU Declaration of Conformity Hereby, Z-COM, Inc. declares that the radio devices are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.zcom.com.tw/index/downloads?keyword=&meterial_type=56 NCC Statement The regulations from NCC:... -
Page 11: Optional Accessories
Note: When ordering power adaptors, you must specify the destination region by indicating -US, -EU instead of -XX. Contact Information All information may be changed by Z-COM at any time without prior notice or explanation to the user. For further information please refer to our website: www.zcom.com.tw 58-140007-IQN _V1.0 Page 10...
