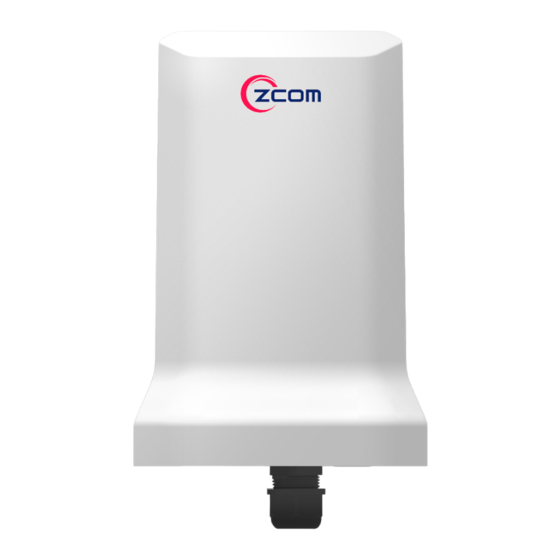

Zcom SP230 Series User Manual

2x2 dual band ptp/ptmp 802.11ac wave 2 outdoor access point
Hide thumbs Also See for SP230 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

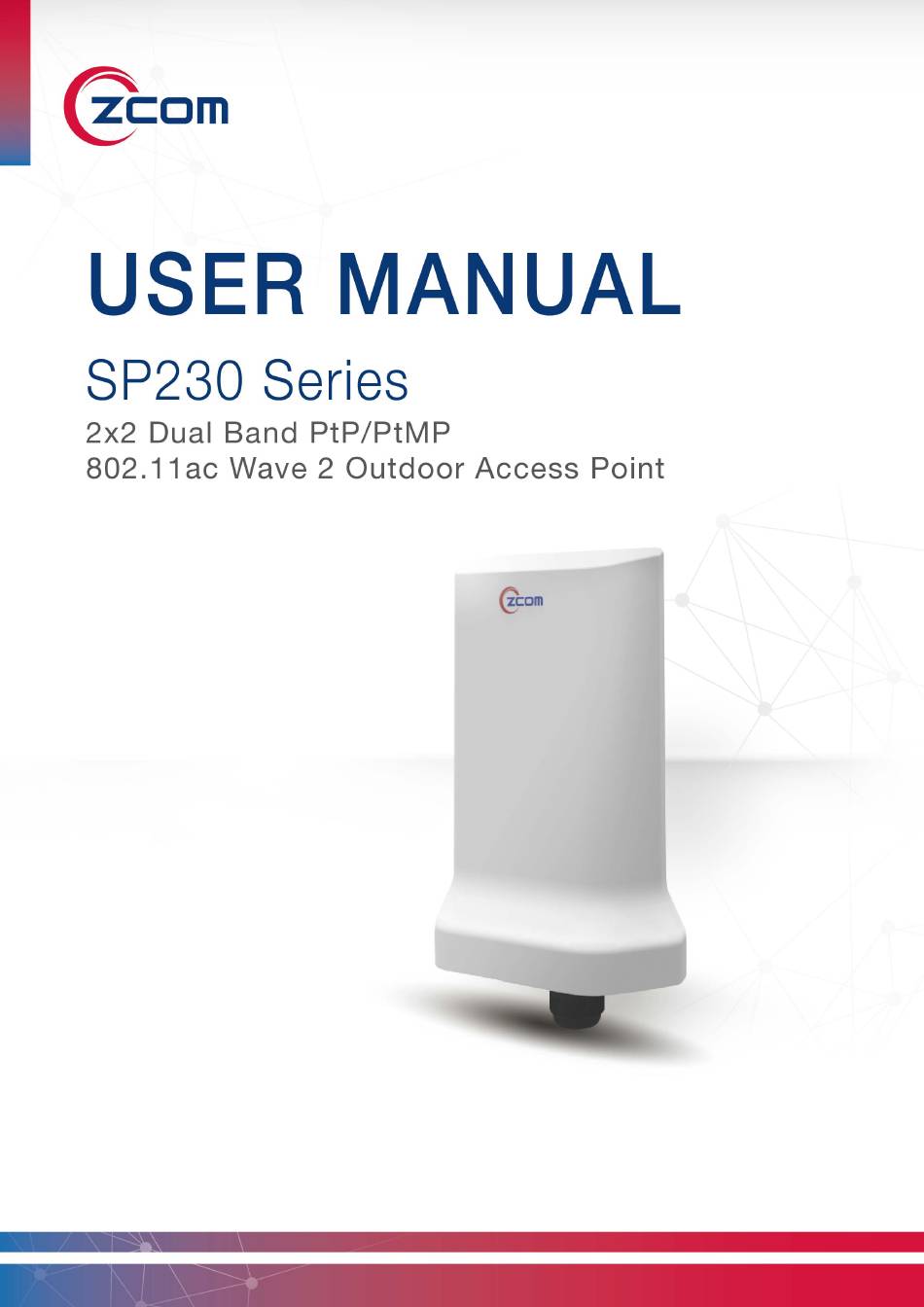

SP230/SP230-S5
2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point
User Manual
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP230 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zcom SP230 Series

Summary of Contents for Zcom SP230 Series

  • Page 1 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Page 1...

  • Page 2: Table Of Contents

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual ABLE OF ONTENTS Chapter 1. Introduction ................................. 4 1.1. Product Description ......................................4 Chapter 2. Hardware Features .............................. 5 2.1. Package Contents ......................................5 2.2. Installation Requirements ....................................5 2.3.
  • Page 3 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual 4.3.1.5. Kernel Log ....................................17 4.3.1.6. Real-time Graphs..................................17 4.3.2. System ........................................19 4.3.2.1. System ......................................19 4.3.2.2. Administration ................................... 19 4.3.2.3. Scheduled Tasks ..................................19 4.3.2.4. Backup / Flash Firmware ............................... 20 4.3.3.

  • Page 4: Chapter 1. Introduction

    This manual is intended for installing and managing the SP230 Series using the HTTP interface. The SP230 series will simply be referred to as the AP (Access Point) within this guide. The installer should be familiar with network structures, terms, and concepts.

  • Page 5: Chapter 2. Hardware Features

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Chapter 2. H ARDWARE EATURES 2.1. Package Contents Carefully remove all the items from the packing of AP. The following items should be included in the packaging: One outdoor access point One clamp Two waterproof cable glands One ground wire...

  • Page 6: Physical Ports

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual 2.3. Physical Ports The following physical ports are available on the SP230/SP230-S5. The following table describes the physical ports that are available on the AP from left to right. Port Description The WAN/PoE port operates at 10/100/1000 Mbps supports an RJ45...

  • Page 7: Chapter 3. Hardware Installation

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Chapter 3. H ARDWARE NSTALLATION 3.1. Mounting the Access Point on the Pole  Attach the mounting bracket to the AP using  Attach the clamp to encircle pole and the four screws (included in the packaging).

  • Page 8: Wall-Mount

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Note: The pole-supported bracket can accommodate up to 6 cm (2.36”) in diameter. 3.2.2. Wall-Mount  Separate it into two parts: half-mounting  Attach the intermediate steel plate to the bracket and M-type bracket and unscrew device using four M5 screws (included in four hex head machine bolts on the two-...

  • Page 9: Anti-Theft Steel Rope (Optional Accessory_Sp-Cbm5)

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual 3.3. Anti-theft Steel Rope (Optional accessory_SP-CBM5)  Insert three of anti-theft screws (included  Encircle the anti-theft steel rope around the pole, in the packaging) to the device through and insert the last anti-theft screw (included in the the mounting bracket.

  • Page 10: Installing A Waterproof Cable Gland For Ethernet Port (Optional Accessory_ Sp-Wp-Cm20)

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual 2. Protect components from electrostatic discharge: Please wear an ESD wrist strap or handle the power adapter by its edge and do not touch any component or printed circuit boards, especially for module device.

  • Page 11: Chapter 4. The Http Interface

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Chapter 4. T HTTP I NTERFACE The AP can be configured through its supported software interface HTTP. The HTTP interface can be accessed using any standard web browsing software through any network. This chapter explains all the elements that are available on the HTTP interface of the AP.
  • Page 12 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual https://www.zcom.com.tw/index/downloads?keyword=&meterial_type=49 Step 1. Power on the AP. As the status of LED indicator from flashing change to steady green, the connection is successful. Note: Please make sure DHCP is enabled on the network once accomplished WLC settings.

  • Page 13: Status

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual 4.2.2. Status 4.2.2.1. Overview This page is used to provide an overview of the software settings and status of the AP. The following parameters are available in this section: Parameter Description Kernel Version...

  • Page 14: System Log

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description IPv6 Address Enter the IPv6 address. IPv6 Prefix Enter the IPv6 prefix IP address. Default Gateway Enter the IPv6 address of the gateway for the interface. Enter primary/secondary DNS server. (if require the second IPv6 Primary/Secondary DNS Server one) Displays basic information of the switch mod:...

  • Page 15: Reboot

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual 4.2.3.2. Reboot Click the Perform reboot link to reboot the device. Any unsaved configuration changes will be lost. 4.3. Fat AP (FAP) Mode A FAT AP is suitable for family and small-scaled networks and provides full features. This Fat AP is wireless equipment used to control and manage wireless clients.

  • Page 16: Firewall

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description Displays information about the generic 802.11bgn wireless controller (wifi0)/(wifi1). SSID - Displays the SSID (Service Set Identifiers) for this wireless interface. Click on the hyperlink to configure this wireless interface. For more information, refer to Wireless Overview on page 49.

  • Page 17: System Log

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description MAC Address Displays the MAC address of the ARP entry. Interface Displays the physical interface that the ARP entry resides on. The following parameters are available in the Active IPv4/IPv6 Routes section: Parameter Description Displays the physical or logical interface the active IPv4/IPv6 route resides...
  • Page 18 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual This page is used to display the inbound and outbound data traffic graph for each physical and logical interface in real time. The following parameters are available in bond0/br-lan/eth0/eth0.1/eth0.2/milreg section: Parameter Description Displays the inbound data traffic measurement (kilobits and kilobytes per...

  • Page 19: System

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description • Peak - Displays the peak number of UDP network connections. The following parameters are available in this section: Parameter Description Network/Protocol Display the network/Protocol used by the active network connection. Displays the source/destination IP address and TCP/UDP port number of the Source/Destination active network connection.

  • Page 20: Backup / Flash Firmware

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual 4.3.2.3.1. Task specification Each line is a separate task written in the specification: 4.3.2.3.2. Crontab Examples A line in crontab file like below removes the tmp files from /home/someuser/tmp each day at 6:30 rm /home/someuser/tmp/* 4.3.2.4.

  • Page 21: Network

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual 4.3.3. Network 4.3.3.1. Interfaces This page is used to display and configure the LAN and WAN interface on the AP. After clicking the Add new interface button, the following page will appear: Page 21...
  • Page 22 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual To configure the WAN/LAN interfaces, click the Edit button. Note: The following web page take WAN interfaces for example, LAN interfaces are similar. 4.3.3.1.1. Static Address This page is used to display and configure the WAN interface settings. Page 22...
  • Page 23 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Displays basic status information of the interface. • Port - Displays the interface name. For example, "eth0.2". • Uptime - Displays the how long the interface is active. Status •...
  • Page 24 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Status Please refer to page 23. Enter the IPv4 address or domain name of the DNS (Domain Name Use custom DNS servers System) server for the WAN connection here.
  • Page 25 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Bridge interfaces Select this option to bridge this interface with another interface. Enable STP Note: This option is only available if Bridge interfaces are enabled. If desired, select and enter a Custom Interface name in the textbox provided.
  • Page 26 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Select the firewall zone that is assigned to this interface. Create / Assign firewall- Select unspecified to remove the interface from a firewall zone. zone To create a new firewall zone, enter the name of the new firewall zone in the space provided.
  • Page 27 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description Select this option to force the DHCP server function on the AP to assign Force IPv4 addresses to DHCP clients on the network even if another DHCP server is detected.
  • Page 28 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description requesting DHCP Accept router Select this option to accept router advertisement on this interface. advertisements Select this option to send router solicitations from this interface. Send router solicitations Note: This option is only available if Accept router advertisements is enabled.
  • Page 29 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Bridge interfaces Select this option to bridge this interface with another interface. Select this option to enable the STP function on this interface. Enable STP Note: This option is only available if Bridge mode is enabled.
  • Page 30 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Create / Assign firewall-zone Please refer to page 26. 4.3.3.1.3. Unmanaged The following parameters are available in this section: Parameter Description Status...
  • Page 31 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Select this option to bring up this interface when the device Bring up on boot rebooted. The following parameters are available in this section: Parameter Description Bridge interfaces...
  • Page 32 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Create / Assign firewall-zone Please refer to page 26. 4.3.3.1.4. PPP The following parameters are available in this section: Parameter Description Status...
  • Page 33 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description Select the modem for this interface here. Select the custom option to Modem device manually enter the modem device string here. Enter the PAP/CHAP username for the PPP account here. PAP/CHAP username PAP stands for Password Authentication Protocol.
  • Page 34 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Status Please refer to page 23. After clicking the Switch protocol button, the following will appear: Page 34...
  • Page 35 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Displays basic status information of the interface. • Port - Displays the interface name. For example, "eth0.2". Status • RX - Displays the RX (receiving) data rate through the interface. •...
  • Page 36 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description echo failures are reached. Enter 0 to ignore failures. LCP echo request are sent at this specified interval. This function is LCP echo interval only effective in conjunction with the failure threshold function. The connection is closed after the inactivity timer reached the Inactivity timeout timeout value.
  • Page 37 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Status Please refer to page 23. After clicking the Switch protocol button, the following will appear: The following parameters are available in this section: Parameter Description Displays basic status information of the interface.
  • Page 38 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Select this option to bring up this interface when the device Bring up on boot rebooted. Enable IPv6 negotiation on Select this option to enable IPv6 negotiation on the PPP link.
  • Page 39 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Select the physical interface that will be associated with this interface configuration here. Interface If desired, select and enter a Custom Interface name in the textbox provided.
  • Page 40 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Status Please refer to page 23. After clicking the Switch protocol button, the following will appear: The following parameters are available in this section: Parameter Description Displays basic status information of the interface.
  • Page 41 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description installed protocol. Select the PPPoA encapsulation method here. Options to choose PPPoA Encapsulation from are VC-Mux (Virtual Circuit Multiplexing) and LLC (Logical Link Control). ATM device number Enter the ATM device number here.
  • Page 42 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description The peer will be presumed to be dead after the given amount of LCP echo failure threshold LCP echo failures are reached. Enter 0 to ignore failures. LCP echo request are sent at this specified interval.
  • Page 43 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description Status Please refer to page 23. After clicking the Switch protocol button, the following will appear: The following parameters are available in this section: Parameter Description Displays basic status information of the interface. •...
  • Page 44 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description Select this option to bring up this interface when the device Bring up on boot rebooted. The following parameters are available in this section: Parameter Description Create / Assign firewall-zone Please refer to page 26.
  • Page 45 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Displays basic status information of the interface. • Port - Displays the interface name. For example, "eth0.2". Status • RX - Displays the RX (receiving) data rate through the interface. •...
  • Page 46 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Select this option to bring up this interface when the device Bring up on boot rebooted. Enable IPv6 negotiation on Select this option to enable IPv6 negotiation on the PPP link.
  • Page 47 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Create / Assign firewall-zone Please refer to page 26. 4.3.3.1.10. DSlite The following parameters are available in this section: Parameter Description Status...
  • Page 48 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Displays basic status information of the interface. • Port - Displays the interface name. For example, "eth0.2". Status • RX - Displays the RX (receiving) data rate through the interface. •...

  • Page 49: Wifi

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description interface Use TTL on tunnel interface Enter the TTL (Time To Live) value for the tunnel interface here. The following parameters are available in this section: Parameter Description Create / Assign firewall-zone Please refer to page 26.
  • Page 50 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description • Bitrate - Displays the current data rate (in megabits per second) through the wireless interface. • SSID - Displays the SSID hosted by the wireless interface. •...
  • Page 51 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual 4.3.3.2.1.1. Generic Atheros 802.11bgn (ath0) Click Add button, after clicking the Edit button in the Generic Atheros 802.11bgn (ath0) entry, the following will appear: The following parameters are available in this section: Parameter Description Displays a summary of the wireless configuration on this wireless...
  • Page 52 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description • Country - Display the country setting on the wireless interface. Wireless network is enabled Displays the current status of the wireless interface. Select the wireless channel for the wireless interface here. The range is from 1 (2.412 GHz) to 11 (2.462 GHz).
  • Page 53 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description Select the network interface to attach to this wireless interface here. Network Select the create option to enter and create and new network interface. Select this option to hide the ESSID from wireless clients. Wireless clients will Hide ESSID not be able to detect this interface by simply scanning for available wireless networks.
  • Page 54 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description Encryption After selecting the WPA2-PSK option, the following settings are available. Select the cipher method here. Options to choose from are Force CCMP (AES). CCMP stands for CCM Mode Protocol. Cipher CCM stands for Counter with CBC-MAC.
  • Page 55 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description Select the MAC address that is allowed access to the wireless interface here. MAC List Select custom option to manually enter the MAC address here. The following parameters are available in this section: Parameter Description After selecting the Allow all except listed option, the following setting is...
  • Page 56 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual After clicking the Edit button in the Generic Atheros 802.11an (ath1) entry, the following will appear: The following parameters are available in this section: Parameter Description Displays a summary of the wireless configuration on this wireless interface.
  • Page 57 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description 26 dBm, and 30 dBm. The following parameters are available in this section: Parameter Description Select the wireless mode on this interface here. Options to choose Mode from are auto, 802.11a, 802.11a+n, and 802.11ac.
  • Page 58 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Select the wireless encryption for this interface here. Options to choose from Encryption are No Encryption, WPA-PSK, WPA2-PSK, and WPA-PSK/WPA2-PSK Mixed Mode.
  • Page 59 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description After selecting the WPA-PSK/WPA2-PSK Mixed Mode option, the following Encryption settings are available. Select the cipher method here. Options to choose from are Force TKIP and Cipher CCMP (AES).
  • Page 60 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description After selecting Allow all except listed option, the following setting is MAC Address Filter available. Select the MAC address that is denied access to the wireless interface here. MAC List Select custom option to manually enter the MAC address here.

  • Page 61: Dhcp And Dns

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual 4.3.3.2.1.3. Associated Stations The following parameters are available in this section: Parameter Description Signal Strength Displays the signal strength of the associated wireless station. SSID Displays the SSID of the associated wireless station. MAC Address Displays the MAC address of the associated wireless station.
  • Page 62 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Parameter Description Select this option to specify that this DHCP server is the only DHCP Authoritative server on the local network. Enter the domain specification of the local DHCP server here. Names Local server matching this domain are never forwarded and resolved from DHCP or host files only.
  • Page 63 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Select this option to enable the TFTP (Trivial File Transfer Protocol) Enable TFTP server server function here. TFTP server root Enter the TFTP server root directory here.
  • Page 64 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Filter private Select this option not to forward reverse lookups for local networks. Select this option not to forward requests that cannot be answered Filter useless by public name servers.

  • Page 65: Static Routes

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Hostname/MAC Address/ Enter the hostname/MAC Address/ IPv4 Address for the static DHCP IPv4 Address client lease here. 4.3.3.4. Static Routes This page is used to display and configure static IPv4/IPv6 routes on the AP.

  • Page 66: Diagnostics

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Select the interface for the static IPv6 route here. Options to choose Interface from are lan and wan. Enter the target IPv6 address or network CIDR (Classless Inter- Target Domain Routing) for the static IPv6 route here.
  • Page 67 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual After clicking the Traceroute button, the following page will appear: After clicking the Nslookup button, the following page will appear: Page 67...

  • Page 68: Firewall

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual 4.3.3.6. Firewall This page is used to display and configure the firewall settings on the AP. The following parameters are available in this section: Parameter Description Enable SYN-flood Select this option to enable the SYN-flood protection function. SYN protection stands for the synchronize step in the TCP three-way handshake.
  • Page 69 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual After clicking the Add button, the following page will appear: The following parameters are available in this section: Parameter Description Name Enter the name for the firewall zone here. Select the input (incoming) action here.
  • Page 70 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual The following parameters are available in this section: Parameter Description Select the IP address family that will be restricted here. Options to Restrict to address family choose from are IPv4 and IPv6, IPv4 only, and IPv6 only. To restrict the masquerading function to a given source subnet, enter Restrict Masquerading to the IPv4 subnet of the source here.

  • Page 71: Bluetooth

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual 4.3.3.7. Bluetooth This page is used to display and configure the Bluetooth settings on the AP. 4.3.3.8. Externalvlan This page is used to enable VLAN transparent transmission settings on the AP. 4.4.

  • Page 72: Ap General Setup

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual 4.4.2. AP General Setup Step 2. Select NetworkInterfacesLANGeneral Setup in the menu bar to access the following information: Protocol: Static address IPv4: 192.168.1.1 IPv4 Netmask: 255.255.255.0 Note: For IPv4 gateway settings, the value can be set according to the needs of deployed environments.
  • Page 73 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Step 4. There are two steps for device configuration, general setup and advanced settings. Select General Setup, and access the following information: Channel: 149 (5.745 GHz) Transmit Power: 26 dBm Note: For Channel settings, it is recommended to avoid the interference frequency.
  • Page 74 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Step 5. Select Advanced Settings, and access the following information: Mode: 802.11ac HT Mode: 80MHz Country Code: 356 (Please select your current country code) Note: For Mode and HT Mode, the value can be set according to the needs of deployed environments.

  • Page 75: Vlan Trunk

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual 4.4.4. VLAN Trunk Step 7. Select NetworkExternalvlan, tick the checkbox, and click 。 Note: Be sure to click to finish the settings. Note: Repeat Step 1 through Step 8 for the other AP that you want to enable. Page 75...

  • Page 76: Chapter 5. Technical Specifications

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Chapter 5. T ECHNICAL PECIFICATIONS Physical Dimensions 151 x 75.5 x 235 mm WAN/PoE In Port One 10/100/1000 Mbps port (L x W x H) (5.94 x 2.97 x 9.25 in) Weight 1000 grams (2.2 lbs.) LAN Port...
  • Page 77 SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Wireless Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) Protected EAP (PEAP) EAP-Subscriber Identity Module (SIM) *Above partial functions should be configured by Z-COM Wireless LAN Controllers (WLC) SP230: Thin AP (TAP) / Fat AP (FAP) / Bridge Operating Mode SP230-S5: Thin AP (TAP) / Fat AP (FAP) / Bridge / Client...

  • Page 78: Chapter 6. Appendix

    SP230/SP230-S5 2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point User Manual Chapter 6. A PPENDIX 6.1. Warranty 6.1.1. General Warranty The warranty period stated below replaces the warranty period as stated in the user manuals for the relevant Products. If there is no proof indicating the purchase date, the manufacture date shall be considered as the beginning of the warranty period.

  • Page 79: Compliance Information

    6.3. Declaration of Conformity Hereby, Z-COM, Inc. declares that the radio devices are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.zcom.com.tw/index/downloads?keyword=&meterial_type=56 Page 79...

  • Page 80: Optional Accessories

    Note: When ordering power adaptors, you must specify the destination region by indicating -US, -EU instead of -XX. 6.5. Contact Information All information may be changed by Z-COM at any time without prior notice or explanation to the user. For further information please refer to our website: www.zcom.com.tw Page 80...
