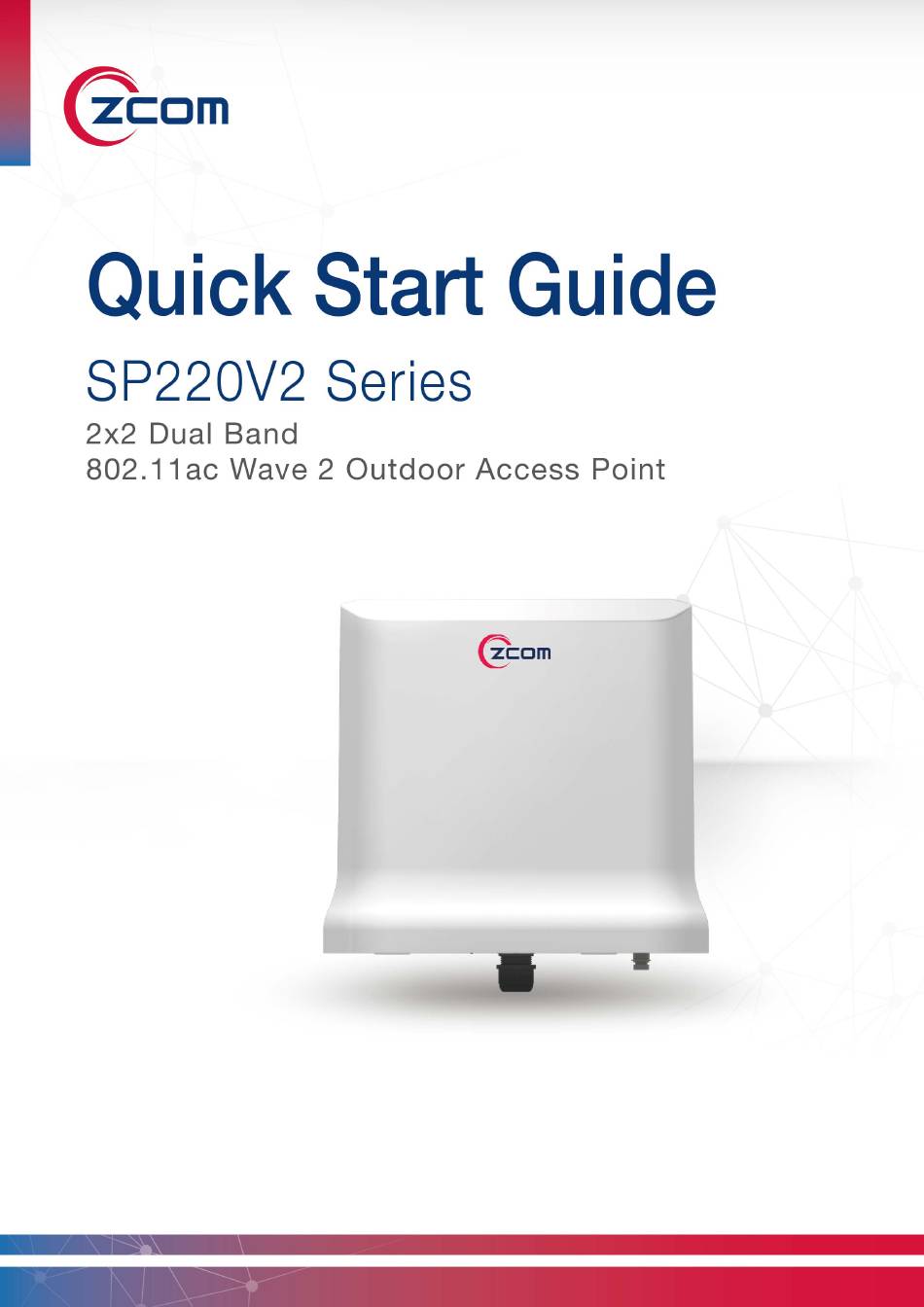

  • Page 1 SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point...

  • Page 2: Package Contents

    SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point Package Contents One outdoor access point One clamp Waterproof cable gland (*Note) One ground wire One mounting bracket Waterproof cable gland for + Four screws fiber port (*Note) One quick setup guide Note: SP220V2 and SP220V2-E both provides two waterproof cable glands, and SP220V2-F provides one waterproof cable gland and one waterproof cable gland for fiber port.
  • Page 3 SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point Two-dimensional Mounting Kit (Optional accessory_SP-MKM5) Pole-Mount  Attach the intermediate steel plate to the  Attach the two-dimensional mounting bracket device using four M5 screws (included in to the intermediate steel plate using four M4 the packaging).
  • Page 4 SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point  Attach half-mounting bracket to the M-type bracket, then screw four hex head machine bolts. Securely tighten the screws. Anti-theft steel rope (Optional accessory_SP-CBM5)  Insert three anti-theft screws (included in the ...
  • Page 5 SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point External 5GHz directional-antennas-15dBi for SP220V2-E (Optional accessory_ANT-D5G-15) Spec: Linear, ±45°, Horizontal Beamwidth 3dB: 60°, 6dB: 90°, IP55 Waterproof Note: In order to prevent the radio inflection, it is recommended to power the device after rotate the antenna.
  • Page 6 SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point External 5GHz directional-antennas-23dBi for SP220V2-E (Optional accessory_ANT-D5G-23)  Align the antenna mount with antenna; screw tightly all four screws. Spec: Dual linear, ±45°, HPBW/Horizontal 10°, HBPW/Vertical 10°, IP65 Waterproof Note: Before screw the directional-antenna, please reserve 15 cm between the device and directional-antenna.

  • Page 7: Safety Notice

    SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point Safety Notice 1. Do not install the device close to any electrical grounding device or lightning protection system. Place the device’s own grounding and lightning protection system apart from any electrical grounding device and lightning protection system as far as possible.

  • Page 8: Powering The Access Point

    Please refer to WLC QSG for settings first, then go back to finish the AP configuration. https://www.zcom.com.tw/index/downloads?keyword=&meterial_type=49 Step 1. Power on the access point. As the status of LED indicator from flashing change to steady red, the connection is successful.
  • Page 9 If currently in TAP Mode: On the Web interface menu, click SystemAP mode. Step 2. Select Fat AP from the drop-down list. Step 3. Click save & apply to take effect. Note: For FAP mode, please refer to the user manual for more information. https://www.zcom.com.tw/index/downloads?keyword=&meterial_type=25...

  • Page 10: Technical Specifications

    SP220V2/-E/-F 2x2 Dual Band 802.11ac Wave 2 Outdoor Access Point Mobile APP Z-COM offers the App for bridge mode settings. Please research and download it to provision. Technical Specifications Physical Dimensions 296 x 92 x 283 mm Weight 2000 grams (4.4 lbs.) (L x W x H) (11.65 x 3.62 x 11.41 in) SP220V2...

  • Page 11: Declaration Of Conformity

    Declaration of Conformity Hereby, Z-COM, Inc. declares that the radio devices are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.zcom.com.tw/index/downloads?keyword=&meterial_type=56 Optional Accessories Item Picture...

  • Page 12: Contact Information

    + antenna Mount + Two U-bolts with plates + Two N-type cables Contact Information All information may be changed by Z-COM at any time without prior notice or explanation to the user. For further information please refer to our website: www.zcom.com.tw...
