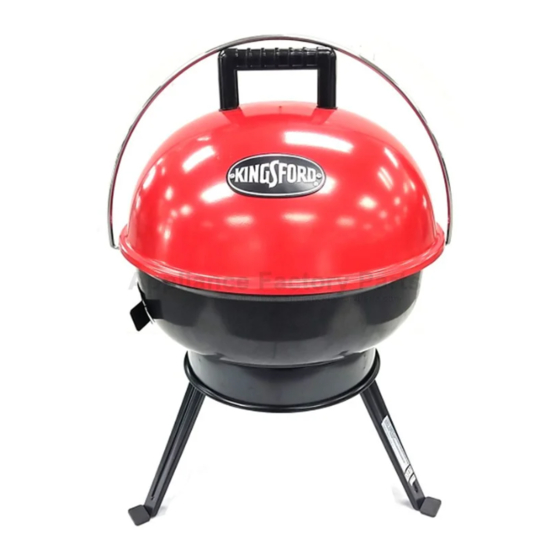

14" KETTLE GRILL WITH HINGED LID
Owner's Manual
Assembly and Operating Instructions
MODEL # TG2021301-KF / TG2021302-KF
Tools required for assembly (Not Included): Pliers, Philips & Flathead Screwdrivers and Adjustable Wrench.
This instruction manual contains important information necessary for the proper assembly and
safe use of the appliance.
Read and follow all warnings and instructions before assembling and using the appliance.
Follow all warnings and instructions when using the appliance.
Keep this manual for future reference.
WARNING
OUTDOOR USE ONLY!
Never use grill indoors. Carbon Monoxide poisoning that can lead to death.
1
TG2021301-KF / TG2021302-KF English
191017Ver4
Advertisement
Table of Contents
Related Manuals for Kingsford TG2021301-KF
Summary of Contents for Kingsford TG2021301-KF
- Page 1 14” KETTLE GRILL WITH HINGED LID Owner’s Manual Assembly and Operating Instructions MODEL # TG2021301-KF / TG2021302-KF Tools required for assembly (Not Included): Pliers, Philips & Flathead Screwdrivers and Adjustable Wrench. This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.
- Page 2 DO NOT wear loose clothing or allow hair to come in contact with grill. Grill is hot when in use. To avoid burns: DO NOT attempt to move the grill. Wear protective gloves or oven mitts. DO NOT touch any hot grill surfaces. TG2021301-KF / TG2021302-KF English 191017Ver4...
- Page 3 State of California to cause cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Wash your hands after handling this product TG2021301-KF / TG2021302-KF English 191017Ver4...
-
Page 4: Product Diagram
Inspect contents of the box to ensure all parts are included and undamaged. The following tools are required for assembly and are not included: Pliers Philips & Flathead Screwdrivers Adjustable Wrench Estimated Assembly Time: Less than 30 minutes Product Diagram TG2021301-KF / TG2021302-KF English 191017Ver4... -
Page 5: Components List
1. Lid Handle 2. Lid Vent 3. Lid 4A. Lid Hinge 4B. Grill Body Hinge 5. Warming Rack 6. Cooking Grate 7. Charcoal Grid 8. Grill Body 9. Air Vent 10. Legs Assembly 11. Wire Handle 2pcs TG2021301-KF / TG2021302-KF English 191017Ver4... -
Page 6: Hardware List
Bolt (M5 x 12) Bolt (M4 x 10) 2pcs Nut (M6) 6pcs Nut (M5) Nut (M4) 2pcs Washer (M6) 8pcs Insulating Washer (M6) 2pcs Washer (M4) 2pcs Washer (M6 x 19) 2pcs Hinge Pin Cotter Pin TG2021301-KF / TG2021302-KF English 191017Ver4... -
Page 7: Assembly Instruction
Assemble Lid Handle (1) to Lid (3) by inserting 2pcs bolt (A), 2pcs washer (H) and 2pcs insulating washer (I). Assemble Air Vent (2) to Lid (3) by inserting 1 bolt (C) and 1pc nut (F) per illustration. STEP 2: Open the legs on the Legs Assembly (10). TG2021301-KF / TG2021302-KF English 191017Ver4... - Page 8 Attach 2pcs Grill Body Vent (9) to Grill Body (8) by inserting 2pcs bolt (D), 2pcs washer (J) and 2pcs nut (G). STEP 4: Attach the Grill Body (8) on the Legs Assembly (10) by using 2pcs bolt (B), 2pcs washer (H) and 2pcs nut (E). TG2021301-KF / TG2021302-KF English 191017Ver4...
- Page 9 Align holes in Lid Hinge (4A) with holes in Grill Body Hinge (4B), insert hinge pin (L) to connect hinges and insert cotter pin (M) in holes of hinge pin. Assemble the Hinge of “↑UP” side to Grill Body by using 2pcs bolt (B), 2pcs washer (H) and 2pcs nut (E). TG2021301-KF / TG2021302-KF English 191017Ver4...
- Page 10 STEP 7: Assemble the Hinge of “Top” side to Lid using 2pcs bolt (B), 2pcs washer (H) and 2pcs nut (E). TG2021301-KF / TG2021302-KF English 191017Ver4...
- Page 11 STEP 8: Place the Charcoal Grid (7) and Cooking Grate (6) in Grill Body. Insert ends of Warming Rack (5) into holes on Lid and Grill Body. Tighten All Hardware. TG2021301-KF / TG2021302-KF English 191017Ver4...
- Page 12 STEP 9: Finished. TG2021301-KF / TG2021302-KF English 191017Ver4...
-
Page 13: Preparation For Use & Lighting Instructions
Pick up by handle and pour lit charcoal into grill. Start with 1.8 pounds (0.8 kg) of charcoal. This should be enough charcoal to cook with, once the curing process has been completed. TG2021301-KF / TG2021302-KF English 191017Ver4... - Page 14 Pick up by handle and pour lit charcoal into grill. Start with 1.8 pounds (0.8 kg) of charcoal. TG2021301-KF / TG2021302-KF English 191017Ver4...
- Page 15 Place food on cooking grate and close grill lid. Always use a meat thermometer to ensure food is fully cooked before removing from grill. Step 7 Allow grill to cool completely, and then follow instructions in the “After-Use Safety” and “Proper Care & Maintenance” sections of this manual. TG2021301-KF / TG2021302-KF English 191017Ver4...
-
Page 16: Flavoring Wood
If necessary, use your Charcoal Chimney Starter to light additional charcoal and / or wood and add to existing fire. WARNING Never add charcoal lighting fluid to hot or even warm coals as flashback may occur causing severe burns. TG2021301-KF / TG2021302-KF English 191017Ver4... -
Page 17: After-Use Safety
Touch-up with a good quality high-temperature resistant paint. Never apply paint to the interior surface. Rust spots on the interior surface can be buffed, cleaned, and then lightly coated with vegetable oil or vegetable oil spray to minimize rusting. TG2021301-KF / TG2021302-KF English 191017Ver4... -
Page 18: Limited Warranty
