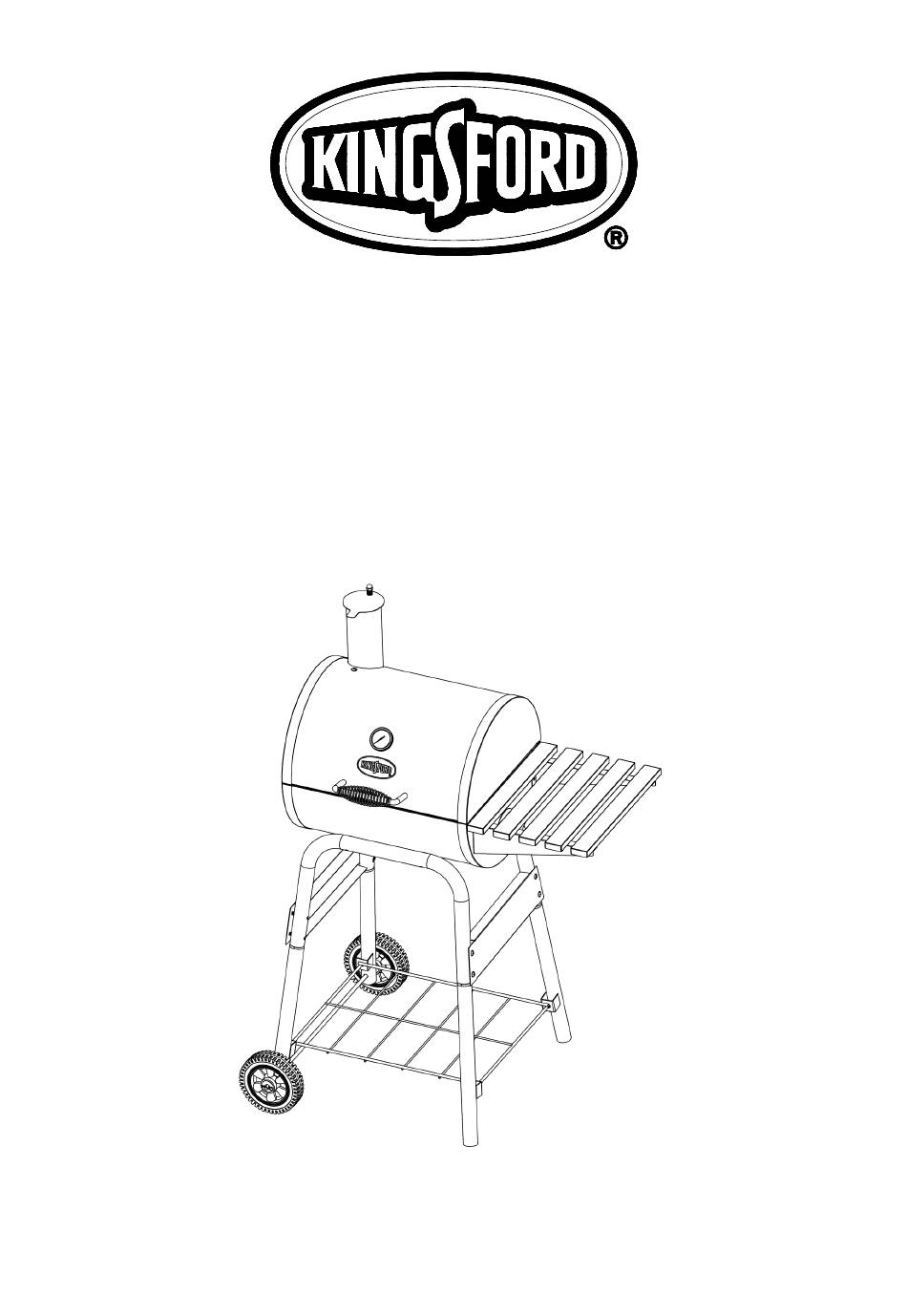

- Page 1 Barrel BBQ Grill Model number: CG2051014-KF Owner’s Manual Assembly and Operating Instructions Tools required for assembly (not included): Pliers, Phillips and Flathead Screwdrivers, Adjustable Wrench Keep this manual for future reference. 1 of 22 20180724-Ver1...
- Page 2 WARNING Only use this grill on a hard, level, non-combustible, stable surface (concrete, ground, etc.) capable of supporting the weight of the grill. Never use on wooden or other surfaces that could burn. When the grill is in use, maintain a clearance of at least 1 m (40”) between the hot grill and any combustible materials, such as bushes, trees, wooden decks, wooden fences, buildings, etc.
-
Page 3: California Proposition
WARNING When grilling, grease from meat may drip into the charcoal and cause a grease fire. If this should happen, close the lid to suffocate the flame. Do not use water to extinguish grease fires. Use caution when opening the lid. Keep hands, face and body a safe distance away. Flash flare ups may occur when air comes into contact with fire or hot coals. -
Page 4: Product Diagram
ASSEMBLY INSTRUCTIONS THANK YOU FOR PURCHASING THIS GRILL Read all safety warnings & assembly instructions carefully before assembling or operating your grill. For missing parts, please call customer service at customerservice@rankam.com or at 1-888-837-1380, Mon to Fri, 8:00 a.m. – 5:00 p.m. Pacific Standard Time. (Proof of purchase will be required.) Inspect contents of the box to ensure all parts are included and undamaged. -
Page 5: Component List
Component List 1. Chimney Cover 2. Chimney 3. Temperature Gauge 4. Handle Qty: 1pc Qty: 1pc Qty: 1pc Qty: 1pc 5. Lid 6. Lid Hinge 7. Body Hinge 8. Cooking Grate Qty: 1pc Qty: 2pcs Qty: 2pcs Qty: 1pc 9. Charcoal Rack 10. -
Page 6: Hardware List
17. Axle 18. Wheel 19. Wire Rack Qty: 1pc Qty: 2pcs Qty: 1pc Hardware List Item No. Item name Diagram M6x40mm Bolt M6x30mm Bolt M6x12mm Bolt M8 Cup Nut Cotter Pin M6 Flange Nut Spring Hinge Pin 6 of 22 20180724-Ver1... - Page 7 STOP! DO NOT RETURN TO RETAILER. For assembly assistance, missing or damaged parts, please call customer service 888-837-1380. Assembly Procedures Symbol: The following symbols will be shown in each procedure for indication of tightening the bolt and nut if necessary. Hand Tighten only at this time Tighten with tools at this time Some steps may require the assistance of a friend.
-
Page 8: Assembly Procedures
Assembly Procedures Step 1 Insert front legs (15) into leg braces (14). Insert rear legs (16) into leg braces (14). Step 2 Insert corners of the wire rack (19) into the brackets on the legs. Rotate the assembled legs toward the center of the wire rack (19). 8 of 22 20180724-Ver1... - Page 9 Step 3 Attach stabilizing plates (13) on both ends of assembled legs using 8 screws (A) and 8 flange nuts (F). Step 4 Thread the axle (17) through the holes at the end of front legs (15). The axle will extend from the outside of both legs. Put a wheel (18) on both ends of the axle.
- Page 10 Step 5. Set grill body (11) on the assembled leg frame and secure with 4 screws (A) and 4 flange nuts (F). Note: Holes for shelf bracket on grill body (11) need to face the opposite side as assembled wheels. Tighten all hardware. Step 6.
- Page 11 Step 7 Align the screw holes of the bracket of the side table (12) with the two pair of holes located on the side of the body. Use a pair of screws (C) and a pair of flange nuts (F) at each bracket to secure the side table (12) to the grill body.
- Page 12 Step 9 Place chimney cover (1) on chimney (2) and secure with 1 spring (G) and 1 cap nut (D). Step 10 Remove the nut from the temperature gauge (3), attach the gauge to the front of the lid, replace nut and tighten. Attach the Lid Handle (4) to the Lid with a pair of screws (C).
- Page 13 Step 11 Attach the lid hinge (6) to the lid with 2 screws (B) and 2 flange nuts (F) for each hinge, on the outside of lid. Step 12 Place the lid assembly on grill body assembly. Align holes in the lid hinges with holes in body hinges and insert hinge pins (H) to connect hinges.
- Page 14 Step 13 Place the charcoal rack (9) inside the grill body, followed by the cooking grate (8). Step 14: If you find the lid and the grill body do not align properly, try the following steps to rectify the problem. 1.
- Page 15 Step 15. Tighten all hardware. Your unit is fully assembled! Make sure to read and follow the Instruction Manual before using this appliance. WARNING Place the grill outdoors on a hard, level, non-combustible surface away from roof overhang or any combustible material.
-
Page 16: Preparation For Use & Lighting Instructions
PREPARATION FOR USE & LIGHTING INSTRUCTIONS Curing your grill Prior to your first use of the Grill, follow the instructions below carefully to cure your grill. Curing your grill will minimize damage to the exterior finish as well as get rid of the grill paint odor that can impart unnatural flavours to the first meal prepared on the grill. - Page 17 WARNING Charcoal lighter fluid must be allowed to completely burn off prior to closing grill lid (approximately 20 minutes). Failure to do this could trap fumes from charcoal lighter fluid in grill and may result in a flash-fire or explosion when lid is opened. Step 5 With coals burning strong, close the lid.
- Page 18 charcoal. Place the charcoal in center of each charcoal grate. Step 3 Saturate charcoal with lighting fluid. With lid open and charcoal grate completely placed inside the grill, wait 2 to 3 minutes to allow lighter fluid to soak into charcoal. Store charcoal lighter fluid a safe distance from the grill.
-
Page 19: Flavoring Wood
Flavoring Wood To obtain your favorite smoke flavor, experiment by using chunks, sticks or chips of flavor producing wood such as hickory, pecan, apple, cherry, or mesquite. Most fruit or nut tree wood may be used for smoke flavoring. Do not use resinous wood such as pine as it will produce an unpleasant taste. Wood chunks or sticks 7 to 10 cm (3”... -
Page 20: After-Use Safety
Step 4 When charcoal is burning strong again, wear oven mitts/gloves and carefully return the charcoal grates to grill body. Extinguish any hot ashes, coals or embers which may have fallen from the grill or beneath and around the grill. AFTER-USE SAFETY WARNING ... -
Page 21: Limited Warranty
LIMITED WARRANTY Manufacturer warrants this Product to be free from defects in workmanship and materials for a period of 1 year from the date of purchase, PROVIDED claims are submitted, in writing, with proof of purchase. If any part of this item fails because of a manufacturing defect within the Limited Warranty Period, Manufacturer offers to replace such part(s) provide that such parts have not been improperly repaired, altered, or tampered with or subject to misuse, abuse or exposed to corrosive conditions. - Page 22 Hours of Operation: Mon to Fri, 8:00 a.m. – 5:00 p.m. Pacific Standard Time. Made in China KINGSFORD AND THE KINGSFORD LOGO ARE REGISTERED TRADEMARKS OF THE KINGSFORD ® ® ® PRODUCTS COMPANY, LLC AND ARE USED UNDER LICENCE BY RANKAM (CHINA) MANUFACTURING COMPANY LIMITED ALL RIGHTS RESERVED.
