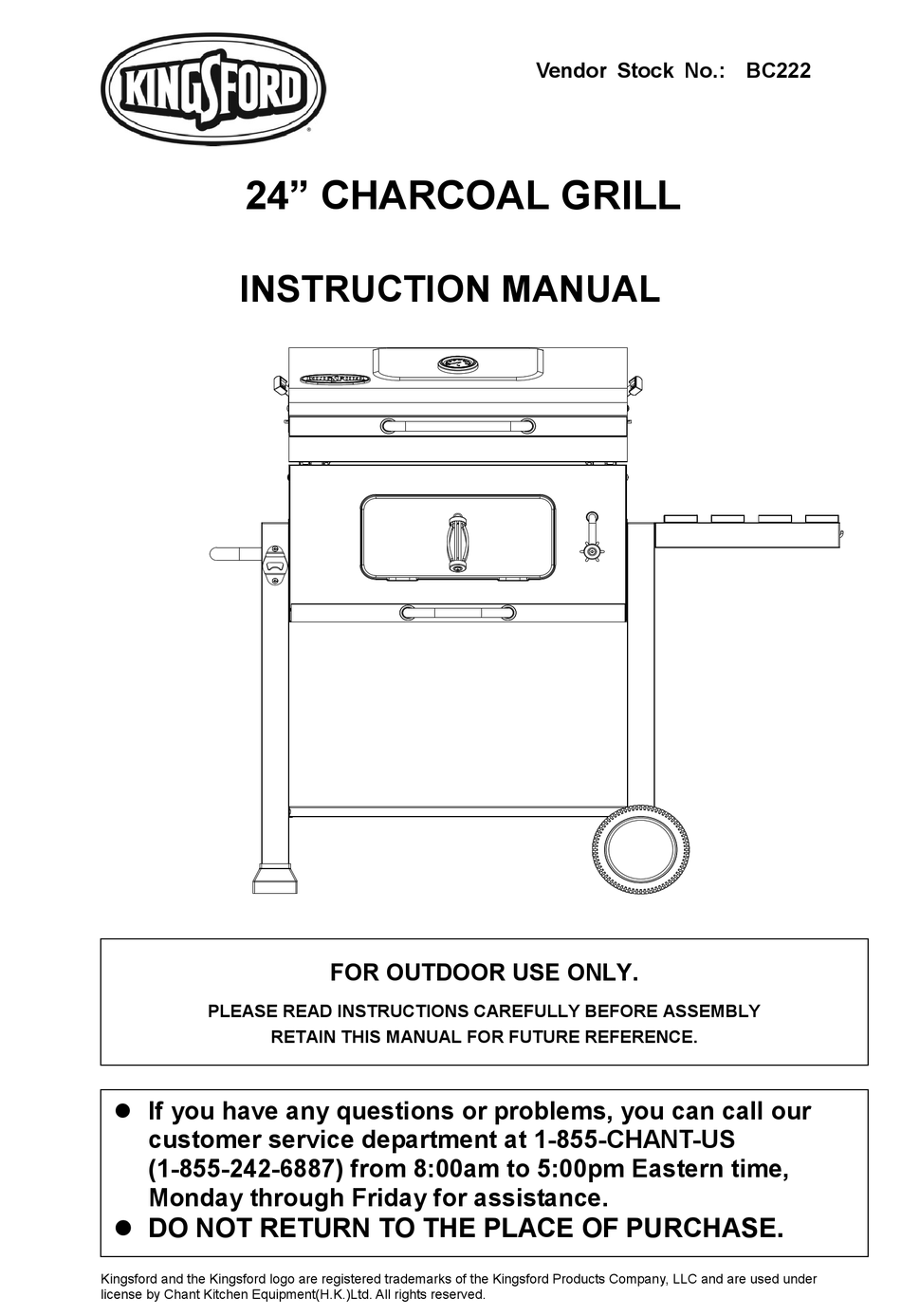

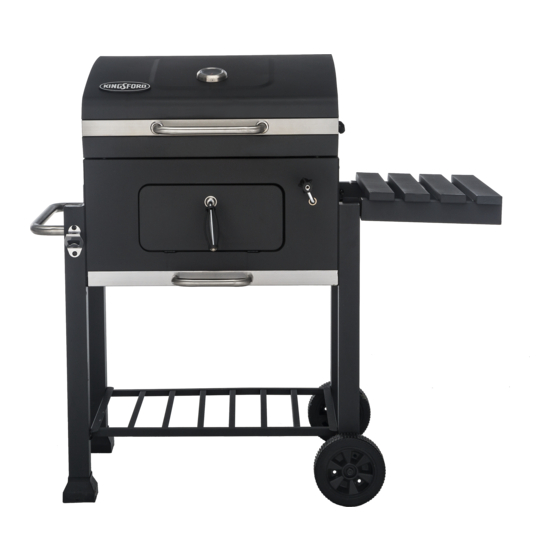

24" CHARCOAL GRILL
INSTRUCTION MANUAL
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
 If you have any questions or problems, you can call our
customer service department at 1-855-CHANT-US
(1-855-242-6887) from 8:00am to 5:00pm Eastern time,
Monday through Friday for assistance.
 DO NOT RETURN TO THE PLACE OF PURCHASE.
Kingsford and the Kingsford logo are registered trademarks of the Kingsford Products Company, LLC and are used under
license by Chant Kitchen Equipment(H.K.)Ltd. All rights reserved.
FOR OUTDOOR USE ONLY.
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Vendor Stock No.: BC222

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC222 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kingsford BC222

Summary of Contents for Kingsford BC222

  • Page 1 Monday through Friday for assistance.  DO NOT RETURN TO THE PLACE OF PURCHASE. Kingsford and the Kingsford logo are registered trademarks of the Kingsford Products Company, LLC and are used under license by Chant Kitchen Equipment(H.K.)Ltd. All rights reserved.
  • Page 2 SAFETY WARNINGS – READ CAREFULLY Before assembling or using your new KINGSFORD® CHARCOAL GRILL -- carefully read the instruction manual and all safety warnings! This symbol “!” indicates a safety warning – pay special attention to the information following this warning when assembling or using your grill.
  • Page 3  Do not add instant light charcoal briquettes to an existing fire. A flash fire may result in bodily injury or property damage.  Do not light grill without the slide out ash pan in place. GRILL USAGE AND OPERATION ...

  • Page 4: Parts View

    SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.

  • Page 5: Parts List

    Parts List Part Part Name Photo Part No. ※ Temperature 2406912 Gauge ※ Lid Decorative 5014818 Plate Hood Assembly 5014817 Upper Hood Hinge 2pcs 5013985 Warming Rack 2307595 Cooking Grid 2pcs 2409690 Lower Hood Hinge 2pcs 5014001 Fire Box Back 5207047 Panel Fire Box Left Panel...
  • Page 6 Part Part Name Photo Part No. Number Fire Box Front Panel with 5109377 charcoal door (pre-assembled) Butterfly Damper 4pcs 5201618 ※ Butterfly 4pcs 2100065 Damper Handle Ash Pan 5201621 ※ Ash Pan 5014825 Decorative Plate ※ 8pcs 2100478 Large Pipe Plug Left Back Leg 5014835 Left Front Leg...
  • Page 7 Part Part Name Photo Part No. Number Hood Handle 5201617 Spacers 2pcs 5201175 Charcoal Tray 5205360 Shaft Assembly 5109381 Right Shaft 5204472 Support Bracket Fire Box Right 5109379 Panel ※ Handle Locking 2307014 Bracket Crank Handle 2404949 ※ 2pcs 5201622 Handle Grip Side Shelf with hooks...
  • Page 8 Part Part Name Photo Part No. Number ※ 2pcs 2100486 Small Pipe Plug ※ Tool Hook 4pcs 2409448 Door Locking 5207049 Lever Trim 5207050 Charcoal Door 2409446 Handle Ash Pan Handle 5201620 Bottle Opener 5014838 Right Front Leg 5201802 Right Back Leg 5201798...
  • Page 9 Part Part Name Photo Part No. Number Wheel 2pcs 2100530 Axle 2307601 Bottom Shelf 5014837 ※ ：NO ASSEMBLY REQUIRED...
  • Page 10 HARDWARE Part Part Name Photo Number M6x12 Bolt 26pcs M6x35 Bolt 8pcs M6 Half Screw Thread Bolt 4pcs M6 Nut 8pcs M10 Nut Hinge Pin 2pcs Cotter Pin 2pcs Note: Tools required for assembly (not included): Phillips #2 screwdriver Pliers and Adjustable Wrench...

  • Page 11: Assembly Instructions

    ASSEMBLY INSTRUCTIONS ! Read all safety warnings and assembly instructions carefully before assembling or operating your grill. FOR ASSEMBLY ASSISTANCE, MISSING OR DAMAGED PARTS, Contact Customer Service, Call: 1-855-242-6887 Monday thru Friday 08:00 A.M. to 05:00 P.M., Eastern Standard Time. (proof of purchase required) Inspect contents of box to make sure all parts are included and not damage STEP1...
  • Page 12 STEP3 STEP4...
  • Page 13 STEP5 STEP6...
  • Page 14 STEP7 STEP8 Self-Tapping Bolt Loosen the pre-assembled Self-Tapping Bolt from the end of Crank Handle (28), then rotate the Crank Handle (28) into the hole of the front panel.
  • Page 15 Self-Tapping Bolt Fasten the Self-Tapping Bolt to the end of the Crank Handle ( 28)，after rotating the Crank Handle（28） into the hole of the front panel. Note: Make sure to rotate the crank handle counterclockwise completely to the end. STEP9 M6x70 Bolt Loosen the pre-assembled M6x70 Bolts from Cart Handle (19), and then assemble the handle to the Left side of the Cart according to the diagram as...
  • Page 16 STEP10 Put the Bolts of the Shaft Assembly (24) into the slot of the Left & Right Fire box side panel. Fit the shaft onto the slot of the bracket of the fire box front panel.
  • Page 17 STEP11 STEP12 Make sure the holes of the charcoal pan (23) are matched with the holes on Shaft Assembly brackets. Screw the M6x12 Bolts (A) as shown, then tighten them one by one.
  • Page 18 STEP13 M8 Nut Φ8 Spring Washer Door Loosen the pre-assembled M8 Nut and spring washer from the handle (35), and then assemble the handle to Charcoal Door according to the diagram as shown. STEP14...
  • Page 19 STEP15 STEP16...
  • Page 20 STEP17 STEP 18...
  • Page 21 STEP 19 M5x28 Bolt Loosen the pre-assembled M5x28 Bolts from Hood Handle (21), and then assemble the handle together with spacer (22) to the hood according to the diagram as shown. STEP 20...
  • Page 22 STEP21...
  • Page 23 STEP22 M5x12 Bolt Loosen the pre-assembled M5x12 Bolts from Ash Pan Handle (36), and then assemble the handle to Ash Pan (14) according to the diagram as shown.
  • Page 24 STEP23 Finish...

  • Page 25: Ash Cleanout

    USING AND CARING FOR YOUR KINGSFORD® CHARCOAL GRILL ASH CLEANOUT It is imperative that you clean out the ashes from your GRILL after both grill and ashes have completely cooled – and before moisture can combine with the ash. Ash and moisture can create lye, which is very acidic, and can cause rusting.
  • Page 26 LIGHTING THE FIRE Always light the fire with the grill lid open. Before lighting the fire, open the hood of your KINGSFORD® CHARCOAL GRILL, as well as all of the butterfly dampers and remove the cooking grates. Do not build too large of a fire. We recommend starting a fire with no more than 2 pounds of charcoal (approximately 30 briquettes) and adding more as needed during cooking.

  • Page 27: Cooking Methods

    To achieve the extended cooking times needed for barbecuing or slow smoking (or if you’re using your KINGSFORD® CHARCOAL GRILL to make enough hot dogs and hamburgers to feed an army), additional charcoal can be added through the charcoal pan access door.
  • Page 28 USING CHARCOAL AND WOOD CHARCOAL Your KINGSFORD® CHARCOAL GRILL is made to burn either charcoal briquettes or natural wood lump charcoal – both of which have different cooking attributes. Briquettes typically provide longer burn times than lump charcoal – but lump charcoal burns hotter than briquettes.
  • Page 29 2-YEAR LIMITED WARRANTY This warranty is non-transferable and does not cover failures due to misuse of improper installation or maintenance. This warranty is for replacement of defective parts only. We are not responsible for incidental or consequential damages or labor costs. This warranty does not cover corrosion or discoloration after the grill is used, or lack of maintenance, hostile environment, accidents, alterations, abuse or neglect.

Table of Contents
