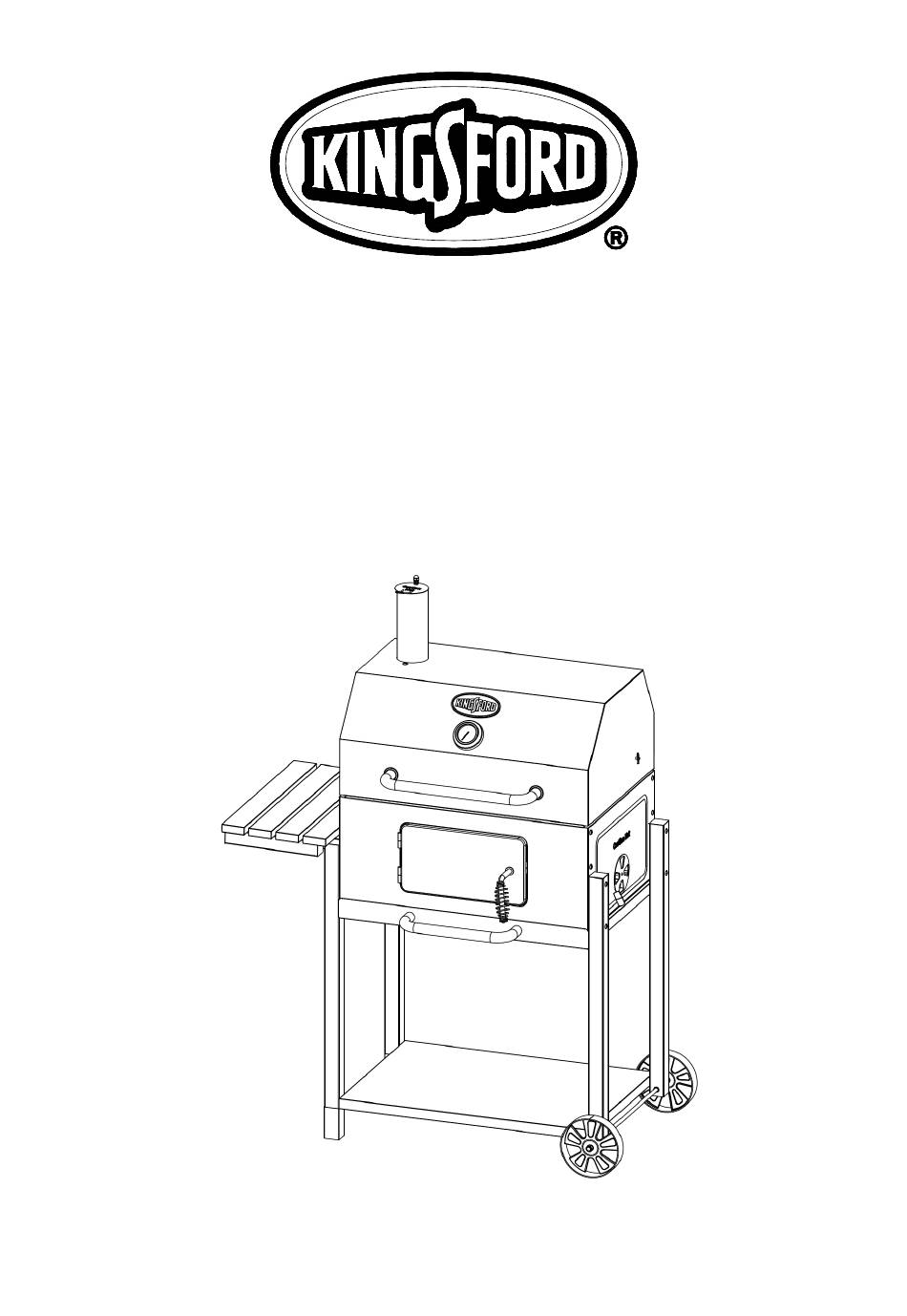

- Page 1 PONDEROSA DELUXE CHARCOAL GRILL Model number: CG2240507-KF Owner’s Manual Assembly and Operating Instructions Tools required for assembly (not included): Pliers, Phillips and Flathead Screwdrivers, Adjustable Wrench Keep this manual for future reference. 1 of 26 20200225-Ver.1.0...
- Page 2 WARNING ⚫ Only use this grill on a hard, level, non-combustible, stable surface (concrete, ground, etc.) capable of supporting the weight of the grill. Never use on wooden or other surfaces that could burn. ⚫ When the grill is in use, maintain a clearance of at least 1 m (40”) between the hot grill and any combustible materials, such as bushes, trees, wooden decks, wooden fences, buildings, etc.
-
Page 3: Prop65 Warning
WARNING ⚫ When grilling, grease from meat may drip into the charcoal and cause a grease fire. If this should happen, close the lid to suffocate the flame. Do not use water to extinguish grease fires. ⚫ Use caution when opening the lid. Keep hands, face and body a safe distance away. Flash flare ups may occur when air comes into contact with fire or hot coals. -
Page 4: Product Diagram
ASSEMBLY INSTRUCTIONS THANK YOU FOR PURCHASING THIS GRILL Read all safety warnings & assembly instructions carefully before assembling or operating your grill. For missing parts, please call customer service at customerservice@rankam.com or at 1-888-837-1380, Mon to Fri, 8:00 a.m. – 5:00 p.m. Pacific Standard Time. (Proof of purchase will be required.) Inspect contents of the box to ensure all parts are included and undamaged. -
Page 5: Component List
Component List 1. Lid 2. Lid Handle 3. Charcoal Tray 4. Charcoal Tray Adjuster Part number: MET-CG0065 Part number: MET-CG0066 Part number: MET-CG0003 Part number: MET-CG0004 Qty: 1pc Qty: 1pc Qty: 1pc Qty: 2pcs 5. Left Panel 6. Side Shelf 7. - Page 6 17. Axle 18. Wheel 19. Right Leg 20. Right Panel Part number: MET-CG0017 Part number: MET-CG0067 Part number: MET-CG0019 Part number: MET-CG0020 Qty: 1pc Qty: 2pcs Qty: 2pcs Qty: 1pc 21. Back Panel 22. Lower Hinge 23. Cooking Grate 24. Warming Rack Part number: MET-CG0021 Part number: MET-CG0022 Part number: MET-CG0023...
-
Page 7: Hardware List
Hardware List Item No. Item name Diagram M6x10mm Bolt M6x30mm Bolt M6x50mm Bolt M6 Locking Nut M6 Step Bolt M8 Cup Nut Spring Hinge Pin M10 Locking Nut Cotter Pin M10 Washer 7 of 26 20200225-Ver.1.0... - Page 8 Symbol: The following symbols will be shown in each procedure for indication of tightening the bolt and nut if necessary. Hand Tighten only at this time Tighten with tools at this time Some steps may require the assistance of a friend. WARNING ⚫...
- Page 9 Assembly Procedures Step 1 Attach Left and Right Side Panel (5, 20) to Front and Back Panel (12, 21) with Bolts A. Step 2 Attach the Lower Hinges (22) to the grill body assembly with Bolts B. 9 of 26 20200225-Ver.1.0...
- Page 10 Step 3 Attach the Ash Door Handle (14) and the Lock Plate (13) to the ash door with Nut I and Washer K. Step 4 Attach the Air Vent (7) to the grill body assembly with Bolts A and Nuts 10 of 26 20200225-Ver.1.0...
- Page 11 Step 5. Attach the Left Front Leg (8), Left Rear Leg (11) and the Right Legs (19) to the grill body assembly with Bolts C. Step 6. Attach the Bottom Rack (10) to the legs with Bolts A. 11 of 26 20200225-Ver.1.0...
- Page 12 Step 7 Attach the Foot Pads (9) to the left legs. Insert the Axle (17) to the right legs and attach the Wheels (18) to the axle with Nuts I and Washers K as shown. Step 8. Tighten the bolts in steps 1 and 5. 12 of 26 20200225-Ver.1.0...
- Page 13 Step 9 Remove the nut on the Thermometer (28) and attach it to the Lid (1). Step 10 Attach the Chimney (26) to the lid with Bolts A. 13 of 26 20200225-Ver.1.0...
- Page 14 Step 11 Attach the Chimney Cover (27) to the chimney with Spring G and Nut Step 12 Attach the Upper Hinges (25) to the lid with Bolts B. 14 of 26 20200225-Ver.1.0...
- Page 15 Step 13 Attach the Lid Handle (2) and Lid Handle Bezel (29) to the lid with Bolts A. Step 14 Attach the lid assembly to the grill body assembly and secure with Hinge Pins H and Cotter Pins J. 15 of 26 20200225-Ver.1.0...
- Page 16 Step 15 Attach the Side Shelf (6) to the left side of the grill body assembly with Bolts E as shown. Step 16: Attach the Ash Tray Handle (16) to the Ash Tray (15) with Bolts A. 16 of 26 20200225-Ver.1.0...
- Page 17 Step 17: Slide the ash tray assembly into the grill as shown. Step 18: Place the Charcoal Tray (3) and the Charcoal Tray Adjusters (4) on the bracket at the left and right panel as shown. 17 of 26 20200225-Ver.1.0...
- Page 18 Step 19: Place the Cooking grates (23) on the grill as shown. Step 20. Attach the Warming Rack (24) to the grill and secure with Cotter Pins J as shown. 18 of 26 20200225-Ver.1.0...
- Page 19 Step 21. Your unit is fully assembled! Make sure to read and follow the Instruction Manual before using this appliance. WARNING Place the grill outdoors on a hard, level, non-combustible surface away from roof overhang or any combustible material. Never use on wooden or other surfaces that could burn. Place the grill away from open windows or doors to prevent smoke from entering your house.
-
Page 20: Preparation For Use & Lighting Instructions
PREPARATION FOR USE & LIGHTING INSTRUCTIONS Curing your grill Prior to your first use of the Grill, follow the instructions below carefully to cure your grill. Curing your grill will minimize damage to the exterior finish as well as get rid of the grill paint odor that can impart unnatural flavours to the first meal prepared on the grill. - Page 21 WARNING Charcoal lighter fluid must be allowed to completely burn off prior to closing grill lid (approximately 20 minutes). Failure to do this could trap fumes from charcoal lighter fluid in grill and may result in a flash-fire or explosion when lid is opened. Step 5 With coals burning strong, close the lid.
- Page 22 charcoal. Place the charcoal in center of each charcoal grate. Step 3 Saturate charcoal with lighting fluid. With lid open and charcoal grate completely placed inside the grill, wait 2 to 3 minutes to allow lighter fluid to soak into charcoal. Store charcoal lighter fluid a safe distance from the grill.
-
Page 23: Flavoring Wood
Flavoring Wood To obtain your favorite smoke flavor, experiment by using chunks, sticks or chips of flavor producing wood such as hickory, pecan, apple, cherry, or mesquite. Most fruit or nut tree wood may be used for smoke flavoring. Do not use resinous wood such as pine as it will produce an unpleasant taste. Wood chunks or sticks 7 to 10 cm (3”... -
Page 24: After-Use Safety
Step 4 When charcoal is burning strong again, wear oven mitts/gloves and carefully return the charcoal grates to grill body. Extinguish any hot ashes, coals or embers which may have fallen from the grill or beneath and around the grill. AFTER-USE SAFETY WARNING ⚫... -
Page 25: Limited Warranty
LIMITED WARRANTY Manufacturer warrants this Product to be free from defects in workmanship and materials for a period of 1 year from the date of purchase, PROVIDED claims are submitted, in writing, with proof of purchase. If any part of this item fails because of a manufacturing defect within the Limited Warranty Period, Manufacturer offers to replace such part(s) provided that such parts have not been improperly repaired, altered, or tampered with or subject to misuse, abuse or exposed to corrosive conditions. - Page 26 Hours of Operation: Mon to Fri, 8:00 a.m. – 5:00 p.m. Pacific Standard Time. Made in China KINGSFORD AND THE KINGSFORD LOGO ARE REGISTERED TRADEMARKS OF THE KINGSFORD ® ® ® PRODUCTS COMPANY, LLC AND ARE USED UNDER LICENCE BY RANKAM (CHINA) MANUFACTURING COMPANY LIMITED ALL RIGHTS RESERVED.
