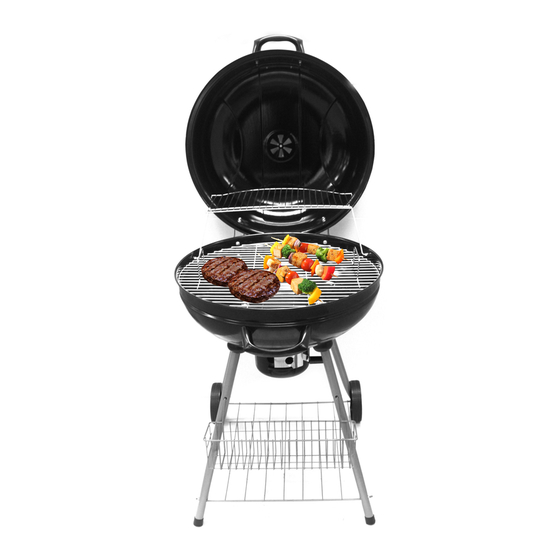

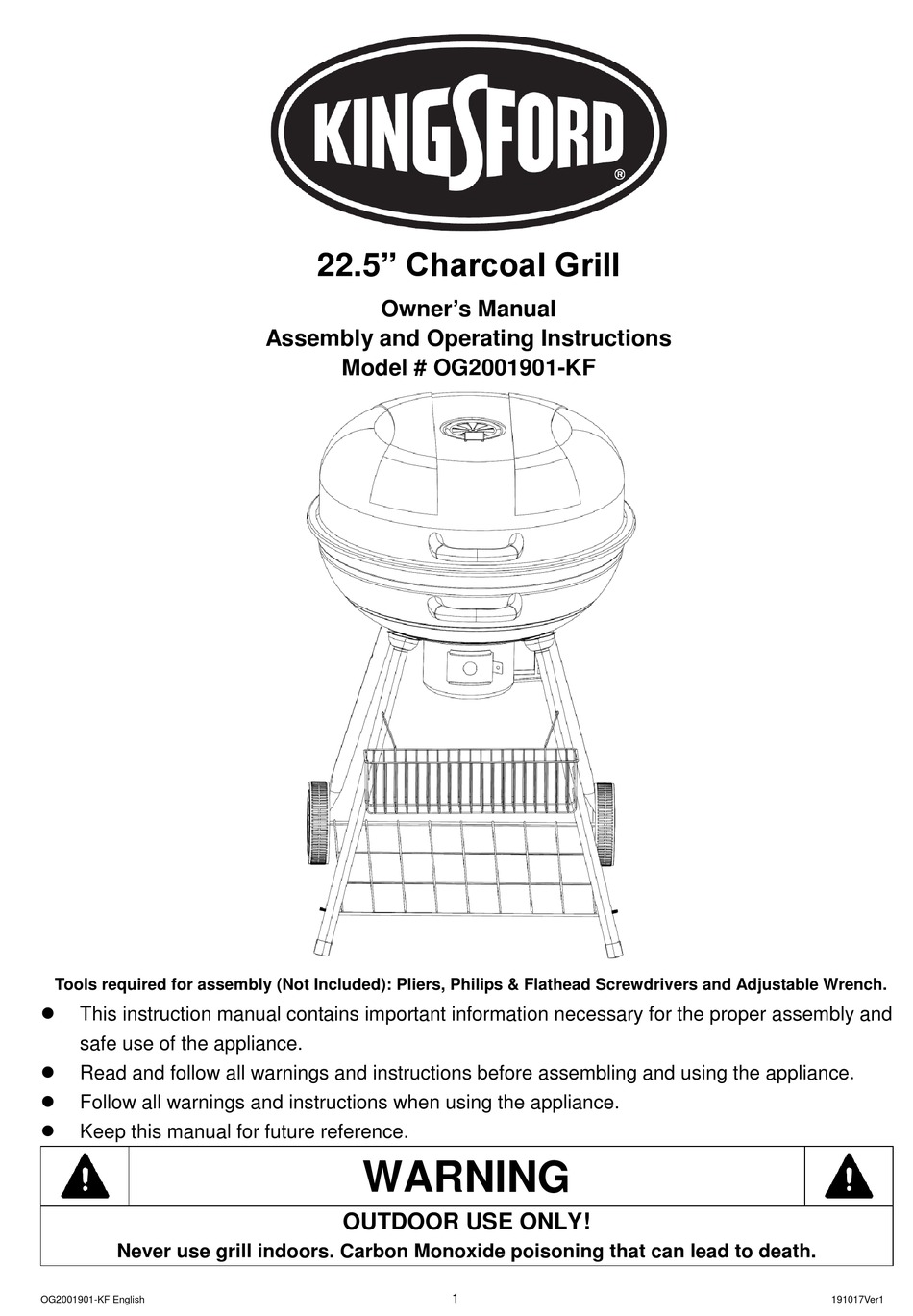

22.5” Charcoal Grill Owner’s Manual Assembly and Operating Instructions Model # OG2001901-KF Tools required for assembly (Not Included): Pliers, Philips & Flathead Screwdrivers and Adjustable Wrench. This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.
Page 2
DO NOT wear loose clothing or allow hair to come in contact with grill. Grill is hot when in use. To avoid burns: DO NOT attempt to move the grill. Wear protective gloves or oven mitts. DO NOT touch any hot grill surfaces. OG2001901-KF English 191017Ver1...
State of California to cause cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Wash your hands after handling this product. OG2001901-KF English 191017Ver1...
Inspect contents of the box to ensure all parts are included and undamaged. The following tools are required for assembly and are not included: Pliers Philips & Flathead Screwdrivers Adjustable Wrench Estimated Assembly Time: Less than 45 minutes Product Diagram OG2001901-KF English 191017Ver1...
Hinge Body Hinge 7. Grill Body 8. Leg Bowl 9A. Ash Catcher 9B. Ash Catcher Handle 4pcs 10. Back Leg 11. Wire Rack 12. Wheel 2pcs 2pcs 13. Front Leg 14. Handle 15. Condiment Rack 2pcs 2pcs OG2001901-KF English 191017Ver1...
Page 6
(M6 x 12mm Dia.) 14pcs Washer (M6 x 19mm Dia.) 4pcs Washer Attention: This washer is pre-assembled on each (M6 x 25mm Dia.) grill leg. 4pcs Washer (M8) 2pcs Hinge Pin 2pcs Cotter Pin 2pcs Bolt (M6 x 12) 2pcs OG2001901-KF English 191017Ver1...
(G) and 2pcs nuts (D). Insert the long end of Wire Rack (11) into the hole of Back Leg (10), then attach the Wheels (12) to the end by using 2pcs washers (J) and 2pcs lock nuts (F). OG2001901-KF English 191017Ver1...
Page 8
Attach Handle (14) to Lid (2) by using 2pcs insulating washers (H), 2pcs washers (G) and 2pcs nuts (D). Attach Air Vent (1) to top of Lid (2) by inserting 1pc bolt (B) and 1pc nut (E). OG2001901-KF English 191017Ver1...
Page 9
Insert the end of the Warming Rack (3) into holes of the Grill Body and Lid. Attach Ash Catcher Handle (9B) to Ash Catcher (9A) by using 2pcs bolts (M). Place the Ash Catcher Assembled under the Grill Body. OG2001901-KF English 191017Ver1...
Page 10
Step 7: 1. Attach the Condiment Rack (15) to Front Legs. 2. Tighten All Hardware. Step 8: Finished. OG2001901-KF English 191017Ver1...
Pick up by handle and pour lit charcoal on to charcoal grid. Start with 3.9 pounds (1.8 kg) of charcoal. This should be enough charcoal to cook with, once the curing process has been completed. OG2001901-KF English 191017Ver1...
Page 12
Pick up by handle and pour lit charcoal on to charcoal grid. Start with 3.9 pounds (1.8 kg) of charcoal. OG2001901-KF English 191017Ver1...
Page 13
Place food on cooking grate and close grill lid. Always use a meat thermometer to ensure food is fully cooked before removing from grill. Step 7 Allow grill to cool completely, and then follow instructions in the “After-Use Safety” and “Proper Care & Maintenance” sections of this manual. OG2001901-KF English 191017Ver1...
Charcoal Chimney Starter to light additional charcoal and / or wood and add to existing fire. WARNING Never add charcoal lighting fluid to hot or even warm coals as flashback may occur causing severe burns. OG2001901-KF English 191017Ver1...
Touch-up with a good quality high-temperature resistant paint. Never apply paint to the interior surface. Rust spots on the interior surface can be buffed, cleaned, and then lightly coated with vegetable oil or vegetable oil spray to minimize rusting. OG2001901-KF English 191017Ver1...
1380 customerservice@rankam.com 8:00am to 5:00pm, Pacific Standard Time, Monday to Friday KINGSFORD AND THE KINGSFORD LOGO ARE REGISTERED TRADEMARKS OF THE KINGSFORD ® ® ® PRODUCTS COMPANY, LLC AND ARE USED UNDER LICENCE BY RANKAM. ALL RIGHTS RESERVED. OG2001901-KF English...
