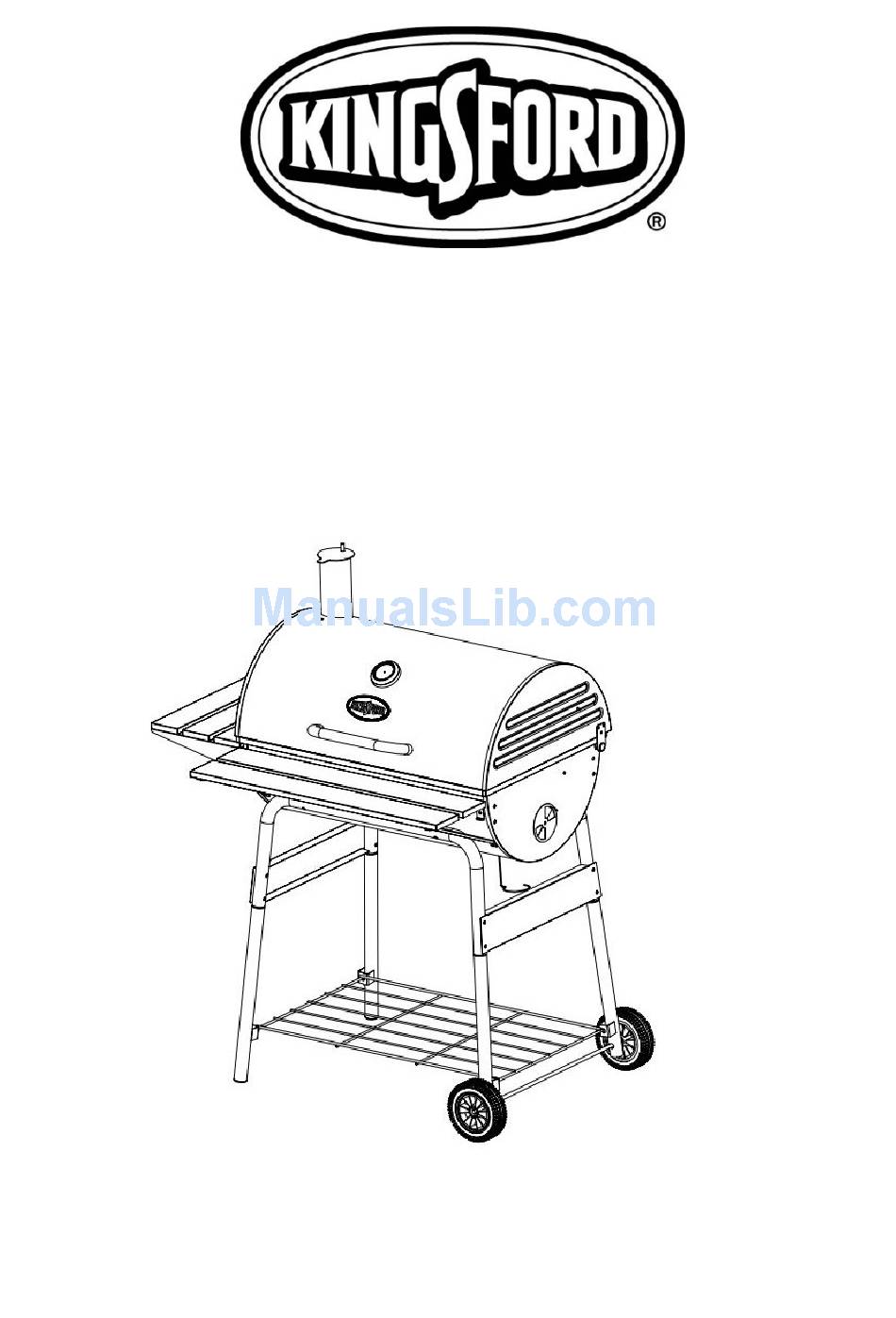

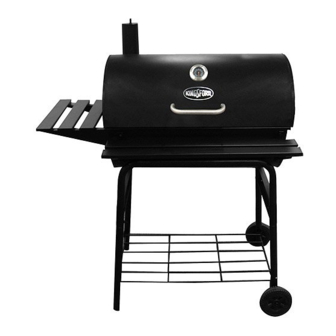

- Page 1 Barrel BBQ Grill Owner’s Manual Assembly and Operating Instructions Model # CG2001301-KF Tools required for assembly: (Not Included) Pliers, Philips & Flathead Screwdrivers, Adjustable Wrench. Keep this manual for future reference. CG2001301-KF ENG Page 1 of 19 20111011 V.1...
- Page 2 DO NOT attempt to move the grill. Wear protective gloves or oven mitts. DO NOT touch any hot grill surfaces. DO NOT wear loose clothing or allow hair to come in contact with grill. CG2001301-KF ENG Page 2 of 19 20111011 V.1...
- Page 3 Use caution and common sense when operating your grill. Failure to adhere to safety warning and guidelines in this manual could result in bodily injury or property damage. Save this manual for future reference. CG2001301-KF ENG Page 3 of 19...
-
Page 4: Product Diagram
ASSEMBLY INSTRUCTIONS THANK YOU FOR PURCHASING THIS KINGSFORD BARREL GRILL Read all safety warnings & assembly instructions carefully before assembling or operating your grill. customerservice@rankam.com For missing parts, please call customer service at or at 888-837-1380 (U.S. only) Mon to Fri, 9:00 a.m. – 5:00 p.m. Pacific Standard Time. -
Page 5: Component List
12. Front Table Bracket 1 pc 2 pcs 2 pcs 2 pcs 13. Front table slat 14. Chimney 15. Chimney Cover 16. Temperature Gauge 2 pcs 1 pc 1 pc 1 pc CG2001301-KF ENG Page 5 of 19 20111011 V.1... - Page 6 1 pc 1 pc 1 pc 2 pcs 21. Charcoal Grate 22. Lifter 23. Cooking Grate 24. Hinge Plate 1 pc 1 pc 4 pcs 2 pcs 25. Grease Cup Holder 1 pc CG2001301-KF ENG Page 6 of 19 20111011 V.1...
- Page 7 2 pcs Flange Nut (M6) 22 pcs Spring 1 pc Lid Handle Insulation Washer 2 pcs Hinge Pin 2 pcs Cotter Pin 4 pcs Bolt (M5X10) 6 pcs Lock Nut (M5) 6 pcs CG2001301-KF ENG Page 7 of 19 20111011 V.1...
-
Page 8: Assembly Procedures
Connect Left Braces (1) and Left Legs (2) and Right Legs (3) together. Step 2. Insert Wire Rack (4) into holes on the inside of legs (2) and (3), then fold up the legs (2) and (3). CG2001301-KF ENG Page 8 of 19... - Page 9 Step 4. Assemble Grill Body (8) on top of Leg Braces (1) using M6X40 Bolt (A) and M6 Flange Nut (F). NOTE: Now tighten all screws in Steps 1 through Step 4 CG2001301-KF ENG Page 9 of 19 20111011 V.1...
- Page 10 Front Table Bracket (12) and Front Table Support (11) to Front Table Slats (13) with using M6X15 Bolt (B). Step 6. Attach Front Table (13) to front of Grill Body (8) using M6x15 bolt (B) and M6 Flange Nut (F). CG2001301-KF ENG Page 10 of 19 20111011 V.1...
- Page 11 (8). Attach Air Vent Shutter (10) onto both sides of Grill Body (8) using one M6x15 bolt (B) and M6 Lock Nut (E). Do not over tighten Air Vent Shutter (10), Air Vent Shutter (10) should move freely. CG2001301-KF ENG Page 11 of 19...
- Page 12 Charcoal Grate (21) into the grill base. Rest the Charcoal Grate Adjusters (20) on the supports of Grill Body (8). Place the Cooking Grates (23) on the support rims of Grill Body (8). NOTE: When taking out cooking grid, use Lifter (22) for help. CG2001301-KF ENG Page 12 of 19...
- Page 13 In windy weather, place the grill in an outdoor area that is protected from the wind. WARNING Read all safety warnings and instructions carefully before operating your grill. CG2001301-KF ENG Page 13 of 19 20111011 V.1...
-
Page 14: Preparation For Use & Lighting Instructions
NOTE: It is important that the exterior of the grill is not scraped or rubbed during the curing process. IMPORTANT: to protect your smoker from excessive rust, the unit must be cured periodically and covered at all times when not in use. CG2001301-KF ENG Page 14 of 19... -
Page 15: Operating Instructions
Step 5 Place cooking grates on grill support lips. WARNING Always wear oven mitts/gloves when adjusting cooking levels to protect your hands from burns. CG2001301-KF ENG Page 15 of 19 20111011 V.1... -
Page 16: Flavoring Wood
If necessary, use your Charcoal Chimney Starter to light additional charcoal and/or wood and add to existing fire. CG2001301-KF ENG Page 16 of 19... -
Page 17: After-Use Safety
Leave closed for at least one hour. Let grates remain in grill until cool. Place grates in proper position in the grill. Your cast iron grates should be properly seasoned and ready to use! CG2001301-KF ENG Page 17 of 19... -
Page 18: Limited Warranty
All parts to be replaced will need to be shipped before replacement items will be sent. Follow the Customer Service Representative’s instructions exactly. If a return is necessary, it must be packed carefully and shipped prepaid. CG2001301-KF ENG Page 18 of 19... - Page 19 , Mon to Fri, 9:00 a.m. – 5:00 p.m. Pacific Standard Time. ® KINGSFORD AND THE KINGSFORD LOGO ARE REGISTERED TRADEMARKS OF THE KINGSFORD PRODUCTS COMPANY, LLC AND ARE USED UNDER LICENSE BY (RANKAM METAL PRODUCTS MANUFACTORY LTD) ALL RIGHTS RESERVED CG2001301-KF ENG Page 19 of 19 20111011 V.1...
